SLUSDS3 Data sheet

SLUSDS3A March 2020 – January 2024 UCC21739-Q1

PRODUCTION DATA

5.12 Typical Characteristics

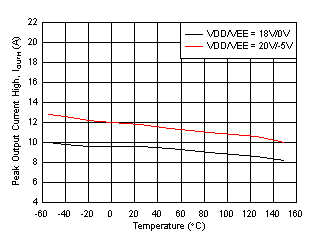

Figure 5-4 Output High Drive Current vs Temperature

IN+ = High

IN- = Low

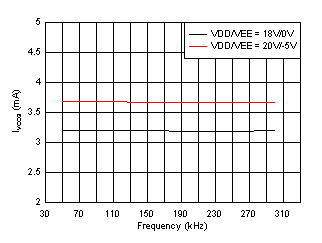

Figure 5-6 I_VCCQ Supply Current vs Temperature

Figure 5-8 I_VCCQ Supply Current vs Input Frequency

IN+ = Low

IN- = Low

Figure 5-10 I_VDDQ Supply Current vs Temperature

Figure 5-12 VCC UVLO vs Temperature

V_CC = 3.3V	V_DD=18V	C_L = 100pF
R_ON = 0Ω	R_OFF = 0Ω

Figure 5-14 Propagation Delay t_PDLH vs Temperature

V_CC = 3.3V	V_DD=18V	C_L = 10nF
R_ON = 0Ω	R_OFF = 0Ω

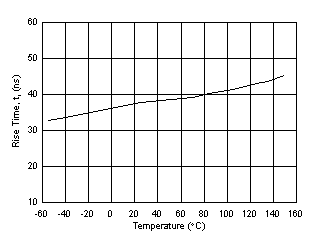

Figure 5-16 t_r Rise Time vs Temperature

Figure 5-18 V_OUTPD Output Active Pulldown Voltage vs Temperature

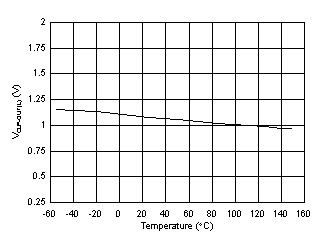

Figure 5-20 V_CLP-OUT(L) Short Circuit Clamping Voltage vs Temperature

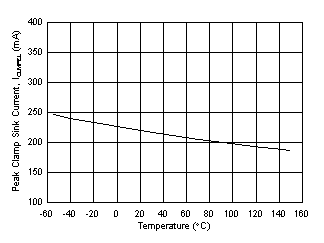

Figure 5-22 I_CLMPEL Miller Clamp Sink Current vs Temperature

Figure 5-24 t_OCOFF OC Propagation Delay vs Temperature

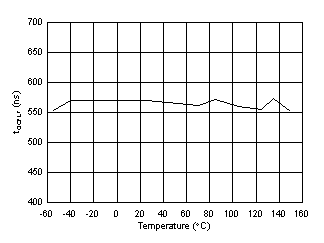

Figure 5-26 t_OCFLT OC to FLT Low Delay Time vs Temperature

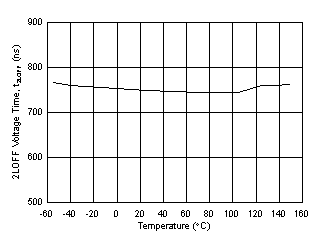

Figure 5-28 t_2LOFF 2-Level Turn Off Time vs Temperature

Figure 5-5 Output Low Driver Current vs Temperature

IN+ = Low

IN- = Low

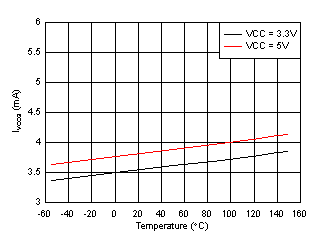

Figure 5-7 I_VCCQ Supply Current vs Temperature

IN+ = High

IN- = Low

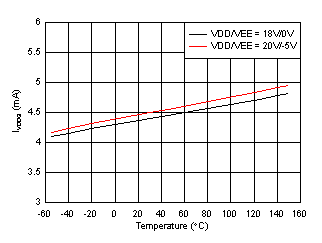

Figure 5-9 I_VDDQ Supply Current vs Temperature

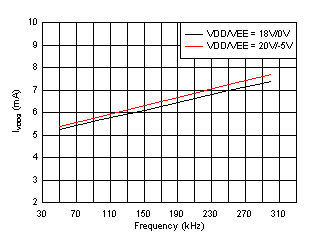

Figure 5-11 I_VDDQ Supply Current vs Input Frequency

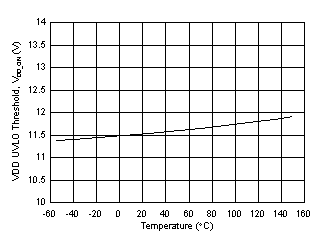

Figure 5-13 VDD UVLO vs Temperature

V_CC = 3.3V	V_DD=18V	C_L = 100pF
R_ON = 0Ω	R_OFF = 0Ω

Figure 5-15 Propagation Delay t_PDHL vs Temperature

V_CC = 3.3V	V_DD=18V	C_L = 10nF
R_ON = 0Ω	R_OFF = 0Ω

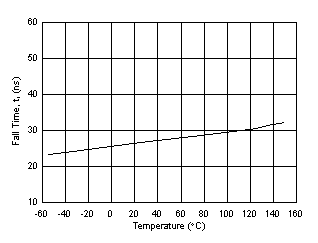

Figure 5-17 t_f Fall Time vs Temperature

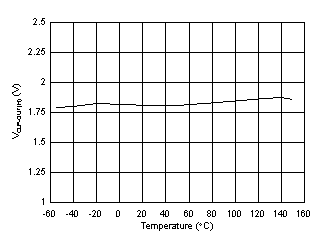

Figure 5-19 V_CLP-OUT(H) Short Circuit Clamping Voltage vs Temperature

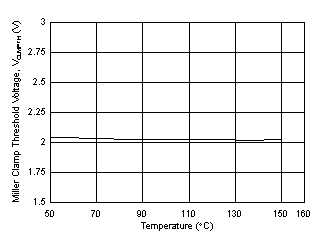

Figure 5-21 V_CLMPTH Miller Clamp Threshold Voltage vs Temperature

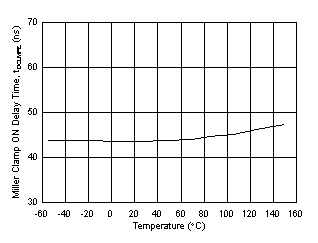

Figure 5-23 t_DCLMPE Miller Clamp ON Delay Time vs Temperature

Figure 5-25 V_OCTH OC Detection Threshold vs Temperature

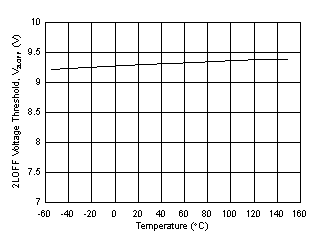

Figure 5-27 V_2LOFF 2-Level Turn Off Voltage Threshold vs Temperature
