9.2 Boot Capacitor

During burst off period, power consumed by the high side gate driver from the HB pin must be drawn from CBOOT and will cause its voltage to decay. At the start of the next burst period there must be sufficient voltage remaining on CBOOT to power the high side gate driver until the conduction period of LO allows it to be replenished from CRVCC. The power consumed by the high side driver during this burst off period will therefore have a direct impact on the size and cost of capacitors that must be connected to CBOOT and RVCC.

Assume the system has a maximum burst off period of 10 ms.

Equation 76. UCC256301 qu76_sluscu6.gif

Assume the bootstrap diode has a forward voltage drop of 1 V:

Equation 77. UCC256301 qu77_sluscu6.gif

Assume the boot voltage to be always above 8 V to avoid UVLO fault. Then the maximum allowed voltage drop on boot capacitor is:

Equation 78. UCC256301 qu78_sluscu6.gif

Boot capacitor can then be sized:

Equation 79. UCC256301 qu79_sluscu6.gif

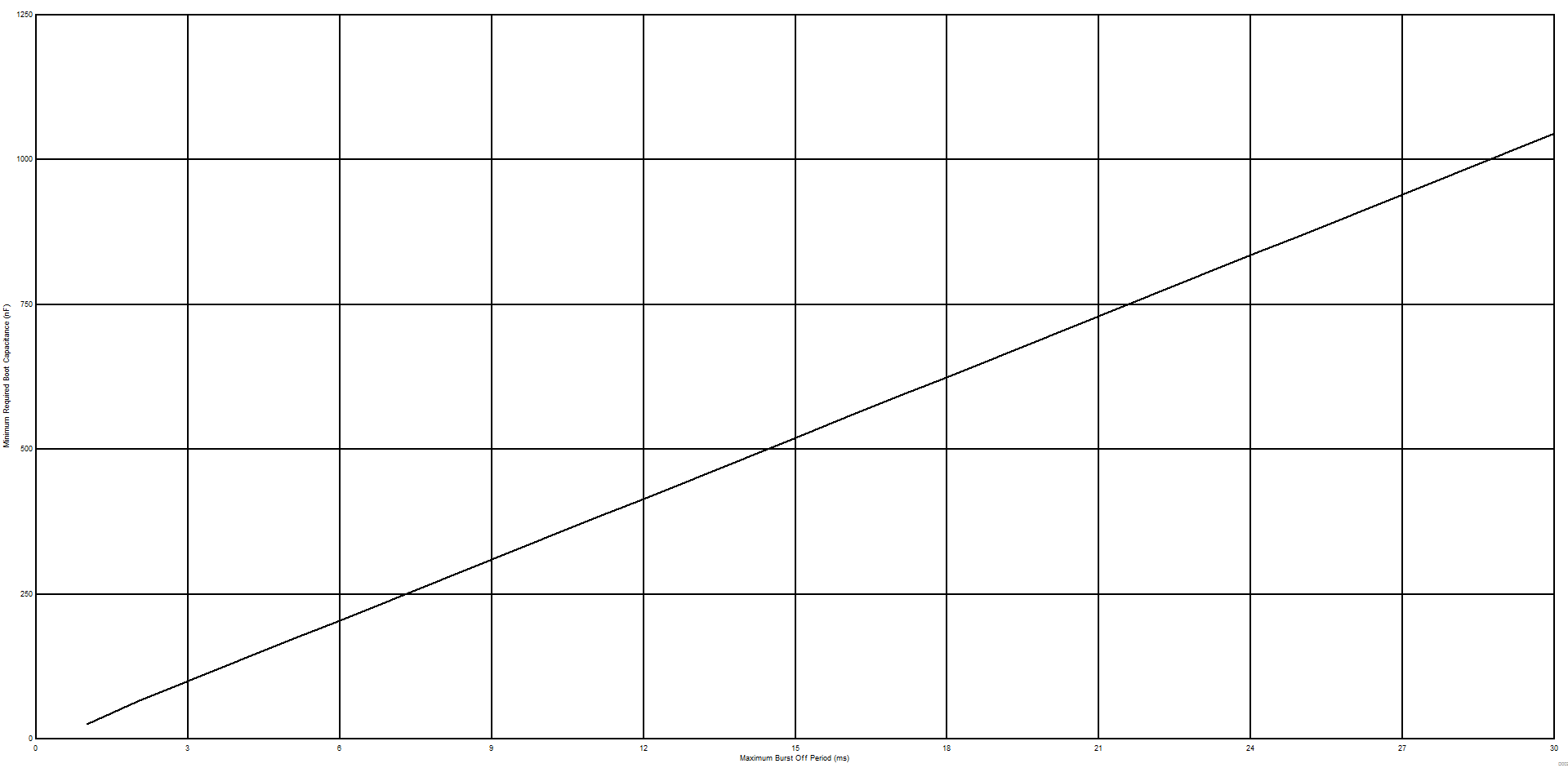

UCC256301 Cboot vs max burst off_sluscu6.gifFigure 62. Minimum Required Boot Capacitance vs. Maximum Burst Off Period
