5.6 Switching Characteristics

VDD = 12 V, TA = TJ = –40°C to 140°C, 1-µF capacitor from VDD to GND. Currents are positive into, negative out of the specified terminal. See Figure 5-1, Figure 5-2, Figure 5-3, and Figure 5-4
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
trRise time(1)VDD = 12 V
C(LOAD) = 1.8 nF, connected to OUTH and OUTL pins tied together		812ns
VDD = 4.5 V
C(LOAD) = 1.8 nF		1622
tfFall time(1)VDD = 12 V
C(LOAD) = 1.8 nF, connected to OUTH and OUTL pins tied together		711ns
VDD = 4.5 V
C(LOAD) = 1.8 nF		711
td(1)IN+ to output propagation delay(1)VDD = 12 V
5-V input pulse C(LOAD) = 1.8 nF, connected to OUTH and OUTL pins tied together		41323ns
VDD = 4.5 V
5-V input pulse C(LOAD) = 1.8 nF, connected to OUTH and OUTL pins tied together		41526
td(2)IN– to output propagation delay(1)VDD = 12 V
C(LOAD) = 1.8 nF, connected to OUTH and OUTL pins tied together		41323ns
VDD = 4.5 V
C(LOAD) = 1.8 nF, connected to OUTH and OUTL pins tied together		41930
(1) See timing diagrams in Figure 5-1, Figure 5-2, Figure 5-3, and Figure 5-4.
GUID-ABB0F1E2-13E4-4861-BE3C-92A2ABEBDB36-low.gifFigure 5-1 Non-Inverting Configuration (PWM Input to IN+ pin (IN– Pin Tied to GND), Output Represents OUTH and OUTL Pins Tied Together in the UCC27511A-Q1)
GUID-90DEA36C-C6F6-4D99-8E30-C9E11115B626-low.gifFigure 5-2 Inverting Configuration (PWM Input to IN– Pin (IN+ Pin Tied to VDD), Output Represents OUTH and OUTL Pins Tied Together in the UCC27511A-Q1)
GUID-50A209EE-7305-4F97-91C2-D9869DAB5BC9-low.gifFigure 5-3 Enable And Disable Function Using IN+ Pin (Enable and Disable Signal Applied to IN+ Pin, PWM Input to IN– Pin, Output Represents OUTH and OUTL Pins Tied Together in the UCC27511A-Q1)

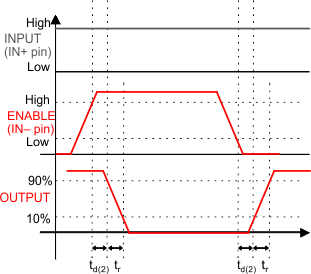

GUID-96BE507D-4A63-4EBF-BDA0-BAD608B2D501-low.gifFigure 5-4 Enable and Disable Function Using IN– Pin (Enable and Disable Signal Applied to IN– Pin, PWM Input to IN+ Pin, Output Represents OUTH and OUTL Pins Tied Together in the UCC27511A-Q1)
