7.2 Typical Application

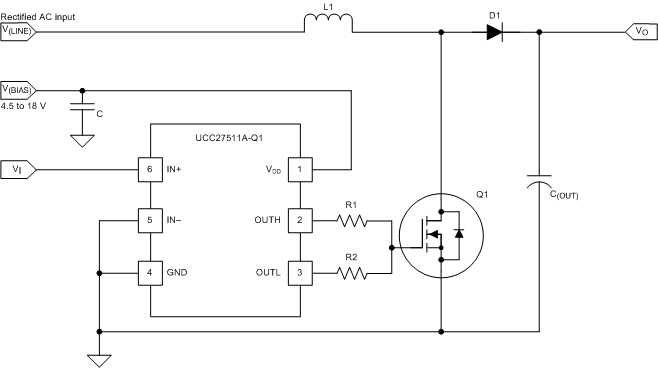

Figure 7-1 shows the typical application of UCC27511A-Q1 device when used as a gate driver for the power MOSFET in a boost-converter application (for example, AC-DC power factor correction in AC-DC chargers for electric vehicles). In this application the UCC27511A-Q1 device is used in the non-inverting input configuration.

GUID-236FDE52-D9FB-4256-9C90-D68A2E08D879-low.gif Figure 7-1 Typical Application in PFC Power Stage
