7.3.15.9 Fault Logic Diagram

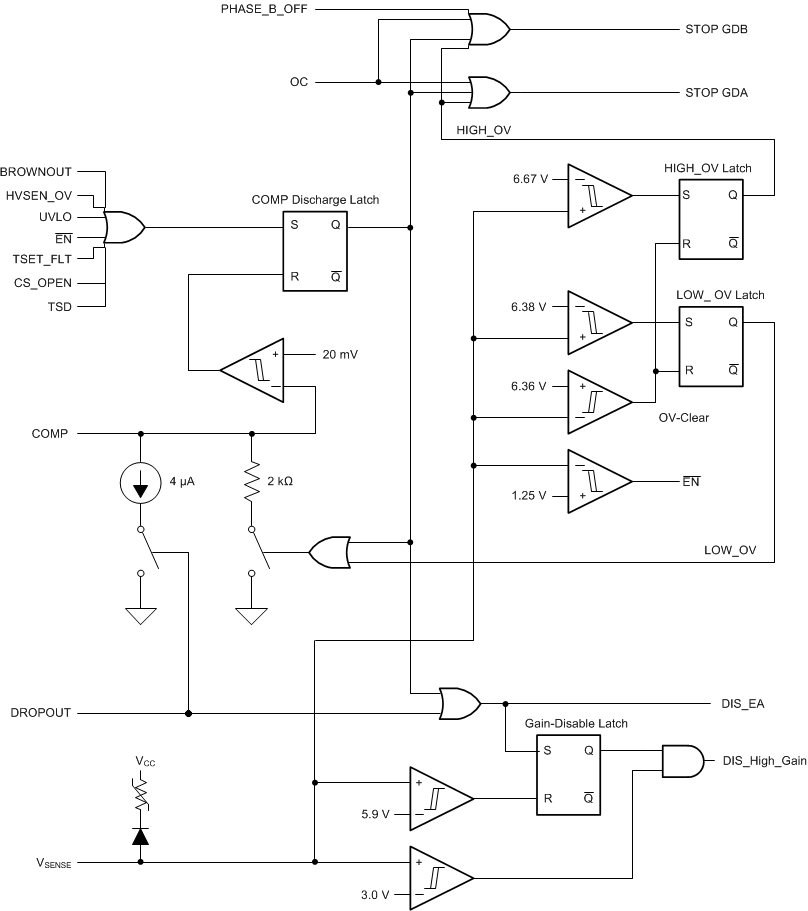

Figure 7-9 depicts the fault-handling logic involving VSENSE, COMP, and several internal states.

UCC28063 Fault Logic With VSENSE Detections and Error Amplifier Control Figure 7-9 Fault Logic With VSENSE Detections and Error Amplifier Control
