7.2.3 Application Curves

Ch1: Inductor current (IA)Ch3: GDBCh2: GDA
M1: Inductor Current (IB)

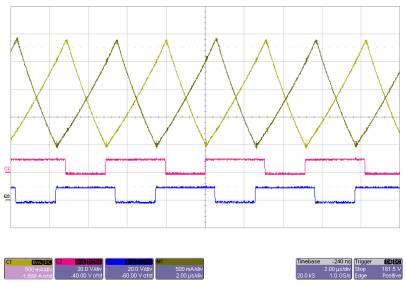

Figure 7-6 Typical Inductor Currents
Ch1: Inductor current (IA)M4: Input current (IA + IB)

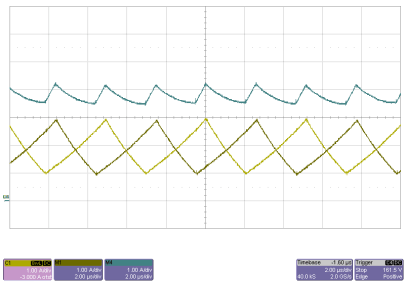

Figure 7-8 Typical Inductor and Input Ripple Currents
Ch1: Inductor current (IA)M1: Inductor current (IB)
M4: Input current (IA + IB)

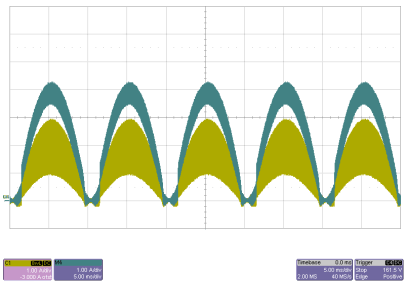

Figure 7-7 Typical Inductor and Input Ripple Currents
Ch1: Input current120VACPF = 0.98

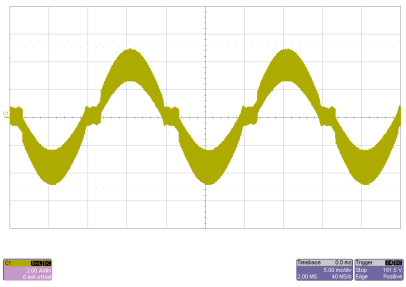

Figure 7-9 Typical Input Current
