7 Specifications

7.1 Absolute Maximum Ratings(1)

Over operating free-air temperature range, all voltages are with respect to GND (unless otherwise noted). Currents are positive into and negative out of the specified terminal.
MIN MAX UNIT
Input voltage range VCC, GATE –0.3 22 V
FREQ, VSENSE, VCOMP, ICOMP –0.3 7
ISENSE –24 7
Input current range VSENSE, ISENSE –1 1 mA
Junction temperature, TJ Operating –55 150 °C
Lead temperature, TSOL Soldering, 10 s 300 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other condition beyond those included under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods of time may affect device reliability.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VCC input voltage from a low-impedance source VCCOFF + 1V 21 V
Operating junction temperature, TJ –40 125 °C
Operating frequency 18 250 kHz

7.4 Thermal Information

THERMAL METRIC(1) UCC28180 UNIT
D
8 PINS
RθJA Junction-to-ambient thermal resistance(2) 116.1 °C/W
RθJCtop Junction-to-case (top) thermal resistance(3) 62.2
RθJB Junction-to-board thermal resistance(4) 56.4
ψJT Junction-to-top characterization parameter(5) 14.4
ψJB Junction-to-board characterization parameter(6) 55.9
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report (SPRA953).
(2) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, high-K board, as specified in JESD51-7, in an environment described in JESD51-2a.
(3) The junction-to-case (top) thermal resistance is obtained by simulating a cold plate test on the package top. No specific JEDEC-standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.
(4) The junction-to-board thermal resistance is obtained by simulating in an environment with a ring cold plate fixture to control the PCB temperature, as described in JESD51-8.
(5) The junction-to-top characterization parameter, ψJT, estimates the junction temperature of a device in a real system and is extracted from the simulation data for obtaining RθJA, using a procedure described in JESD51-2a (sections 6 and 7).
(6) The junction-to-board characterization parameter, ψJB, estimates the junction temperature of a device in a real system and is extracted from the simulation data for obtaining RθJA, using a procedure described in JESD51-2a (sections 6 and 7).

7.5 Electrical Characteristics

Unless otherwise noted, VCC=15Vdc, 0.1µF from VCC to GND, –40°C ≤ TJ = TA ≤ +125°C. All voltages are with respect to GND. Currents are positive into and negative out of the specified terminal.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VCC BIAS SUPPLY
ICCPRESTART ICC Pre-start current VCC = VCCOFF – 0.2 V 75 µA
ICCSTBY ICC Standby current VSENSE = 0.5 V 1.8 2.4 3.47 mA
ICCON_load ICC Operating current VSENSE = 4.0 V, CGATE = 4.7 nF 5.8 7 8.8 mA
UNDER VOLTAGE LOCKOUT (UVLO)
VCCON VCC Turn on threshold 10.8 11.5 12.1 V
VCCOFF VCC Turn off threshold 9.1  9.5 10.3 V
UVLO Hysteresis 1.6 1.7 2 V
VARIABLE FREQUENCY
fSW Minimum switching frequency RFREQ = 130 kΩ 16.3 18 19.8 kHz
Typical switching frequency RFREQ = 32.7 kΩ 61.75 65 68.25 kHz
Maximum switching frequency RFREQ = 8.2 kΩ 225 250 275 kHz
VFREQ Voltage at FREQ pin TA = 25°C 1.43 1.5 1.56 V
PWM
DMIN Minimum duty cycle VSENSE = 5.1 V, ISENSE = –0.25 V 0%
DMAX Maximum duty cycle VSENSE = 4.0 V, RFREQ = 32.7 Ω 94.8% 96.5% 98%
tOFF(min) Minimum off time VSENSE = 3 V, ICOMP = 0.72 V 450 570 690 ns
SYSTEM PROTECTION
VSOC ISENSE threshold, soft over current (SOC) –0.259 –0.285 –0.312 V
VPCL ISENSE threshold, peak current limit (PCL) –0.345 –0.4 –0.438 V
IISOP ISENSE bias current, ISENSE open-pin protection (ISOP) ISENSE = 0 V –2.3 –2.95 µA
VISOP ISENSE threshold, ISENSE open-pin protection (ISOP) ISENSE = open pin 0.085 0.14 V
VOLP VSENSE threshold, open loop protection (OLP) ICOMP = 1 V, ISENSE = 0 V 15.6 16.5 17.6 %VREF
Open loop protection (OLP) Internal pull-down current VSENSE = 0.5 V 100 325 nA
VUVD VSENSE threshold, output under-voltage detection (UVD) used for enhanced dynamic response(1) 93.25  95 97 %VREF
VOVD VSENSE threshold, output over-voltage detection (OVD) used for Enhanced dynamic response(1) 103 105 106.75  %VREF
VOVP_L Output over-voltage protection low threshold, VCOMP is discharged by a 4kΩ resistor when VSENSE > VOVP_L 105 107 109 %VREF
VOVP_H Output over-voltage protection high threshold, PWM shuts off when VSENSE > VOVP_H 107 109 111 %VREF
VOVP_H(RST) Output over-voltage protection (VOVP_H) reset threshold, PWM turns on when VSENSE < VOVP_H(RST) 100 102 104 %VREF
ICOMP threshold, external overload protection 0.2 0.25 %VREF
CURRENT LOOP
gmi Transconductance gain 0.75 0.95 1.1 mS
Output linear range (1) ±50 µA
ICOMP voltage during OLP VSENSE = 0 V 2.7 3 3.3 V
VOLTAGE LOOP
VREF Reference voltage TA = 25°C 4.93 5 5.07 V
–40°C ≤ TA ≤ +125°C 4.87 5 5.15 V
gmv Transconductance gain without EDR –40 –56 –70 µS
gmv-EDR Transconductance gain under EDR –230 –280 –340 µS
Maximum sink current under normal operation VSENSE = 5 V, VCOMP = 4 V 23 40 57 µA
Source current under soft start VSENSE = 4 V, VCOMP = 4 V –29 –40 –52 µA
Maximum current under EDR operation VSENSE = 4 V, VCOMP = 2.5 V –200 –275 µA
VSENSE input bias current VSENSE = 5 V 20 100 250 nA
VCOMP voltage during OLP VSENSE = 0.5 V, IVCOMP= 0.5 mA 0 0.04 0.10 V
VCOMP rapid discharge current VCOMP = 2 V, VCC = floating 0.37 mA
VPRECHARGE VCOMP precharge voltage IVCOMP = –100 µA, VSENSE = 4 V 1.5 V
IPRECHARGE VCOMP precharge current VCOMP = 0 V –1 mA
VSENSE threshold, end-of-soft-start Initial Start-up 98 %VREF
GATE DRIVER
GATE current, peak, sinking(1) CGATE = 4.7 nF 2 A
GATE current, peak, sourcing(1) CGATE = 4.7 nF –1.5 A
GATE rise time CGATE = 4.7 nF, GATE = 2 V to 8 V 8 40 60 ns
GATE fall time CGATE = 4.7 nF, GATE = 8 V to 2 V 8 25 40 ns
GATE low voltage, no load IGATE = 0 A 0 0.01 V
GATE low voltage, sinking IGATE = 20 mA 0.04 0.06 V
GATE low voltage, sourcing IGATE = -20 mA –0.04 –0.06 V
GATE low voltage, sinking, OFF VCC = 5 V, IGATE = 5 mA 0.1 0.2 0.31 V
GATE low voltage, sinking, OFF VCC = 5 V, IGATE = 20 mA 0.4 0.8 1.4 V
GATE high voltage VCC = 20 V, CGATE = 4.7 nF 14.5 15.2 16.1 V
GATE high voltage VCC = 12.2 V, CGATE = 4.7 nF 10.8 11.2 12 V
GATE high voltage VCC = VCCOFF + 0.2 V,
CGATE = 4.7 nF
8.2 9 10.1 V
(1) Not production tested. Characterized by design

7.6 Typical Characteristics

UCC28180 C001_SLUSBQ5.png
Figure 1. Switching Frequency vs. Resistor

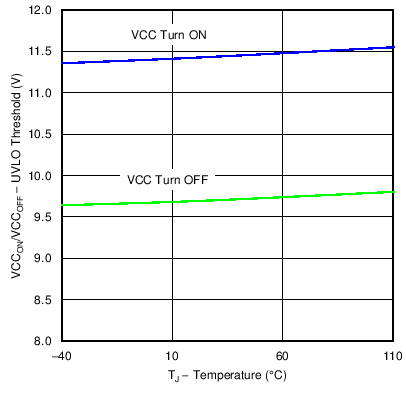

UCC28180 C003_SLUSBQ5.png
Figure 3. UVLO Threshold vs. Temperature

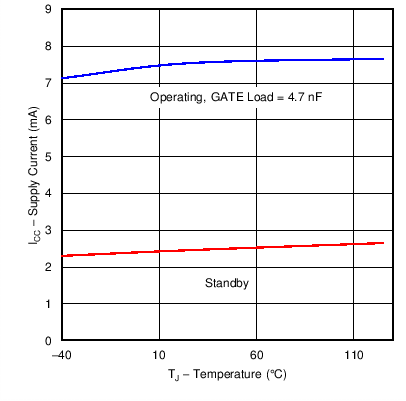

UCC28180 C005_SLUSBQ5.png
VCC = 15 V
Figure 5. Supply Current vs. Temperature

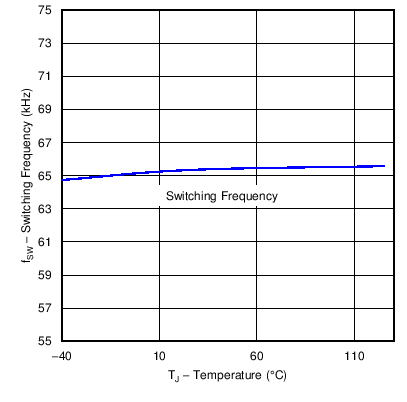

UCC28180 C007_SLUSBQ5.png
VCC = 15 V FSW = 65 kHz
Figure 7. Oscillator Frequency (65 kHz) vs. Temperature
UCC28180 fig7a_lusbq5.png
VCC = 15 V
Figure 9. Oscillator Frequency (18 kHz) vs. Temperature
UCC28180 fig8a_lusbq5.png
TJ = 25 °C
Figure 11. Oscillator Frequency (18 kHz) vs. Bias Voltage
UCC28180 C009_SLUSBQ5.png
VCC = 15 V
Figure 13. Current Loop Gain vs. Temperature

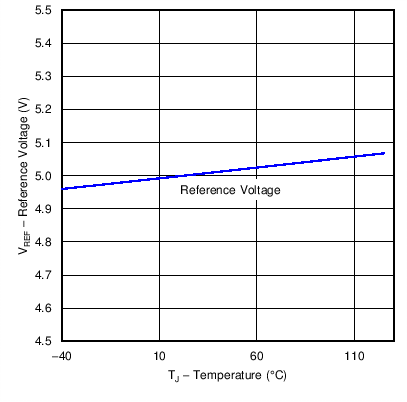

UCC28180 C011_SLUSBQ5.png
VCC = 15 V
Figure 15. Reference Voltage vs. Temperature

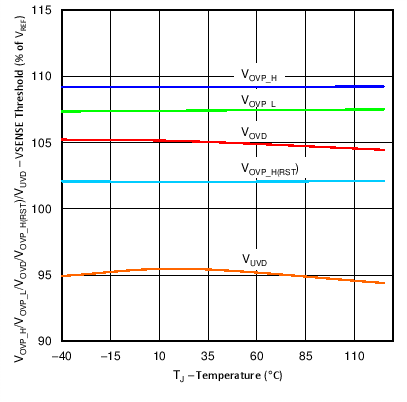

UCC28180 C013_SLUSBQ5.png
VCC = 15 V
Figure 17. VSENSE Threshold vs. Temperature

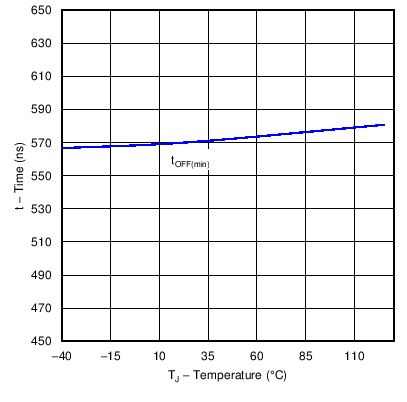

UCC28180 C015_SLUSBQ5.png
ICOMP = 0.72 V VSENSE = 3 V FSW = 65 kHz
Figure 19. Minimum Off Time vs. Temperature

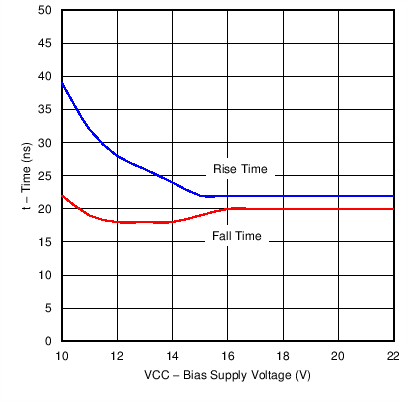

UCC28180 C017_SLUSBQ5.png
TJ = 25 °C CGATE = 4.7 nF VGATE = 2 V-8 V
Figure 21. Gate Drive Rise/Fall Time vs. Bias Supply Voltage

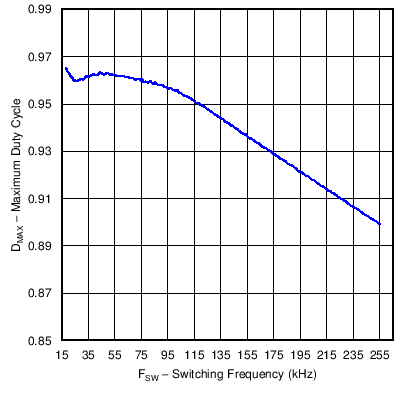

UCC28180 C002_SLUSBQ5.png
VCC = 15 V
Figure 2. Maximum Duty Cycle vs. Switching Frequency

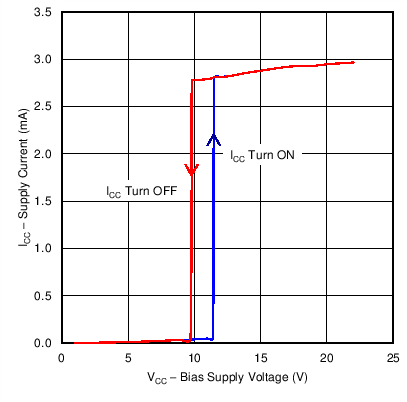

UCC28180 C004_SLUSBQ5.png
TJ = 25 °C VSENSE= 3 V
No Gate Load FSW = 65 kHz
Figure 4. Supply Current vs. Bias Supply Voltage

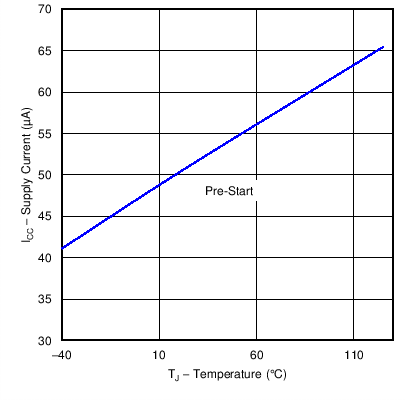

UCC28180 C006_SLUSBQ5.png
VCC = VCCON – 0.2 V
Figure 6. Pre-Start Supply Current vs. Temperature

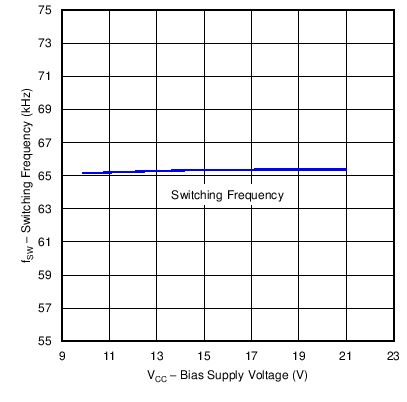

UCC28180 C008_SLUSBQ5.png
TJ = 25 °C FSW = 65 kHz
Figure 8. Oscillator Frequency (65 kHz) vs. Bias Supply Voltage
UCC28180 fig7b_lusbq5.png
VCC = 15 V
Figure 10. Oscillator Frequency (250 kHz) vs. Temperature
UCC28180 fig8b_lusbq5.png
TJ = 25 °C
Figure 12. Oscillator Frequency (250 kHz) vs. Bias Voltage

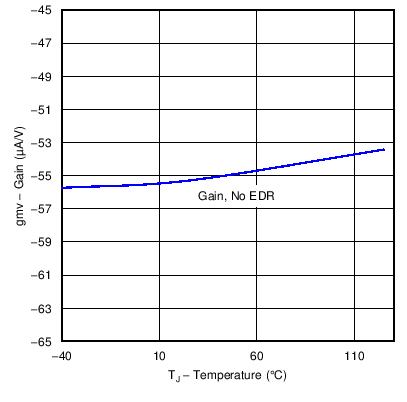

UCC28180 C010_SLUSBQ5.png
VCC = 15 V
Figure 14. Voltage Loop Gain vs. Temperature
UCC28180 C012_SLUSBQ5.png
VCC = 15 V
Figure 16. ISENSE Threshold Soft Over Current (SOC) vs. Temperature

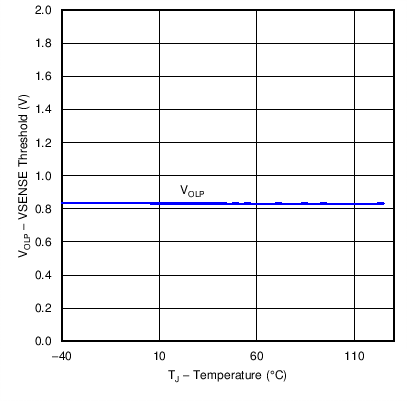

UCC28180 C014_SLUSBQ5.png
VCC = 15 V
Figure 18. VSENSE Threshold Open Loop vs. Temperature

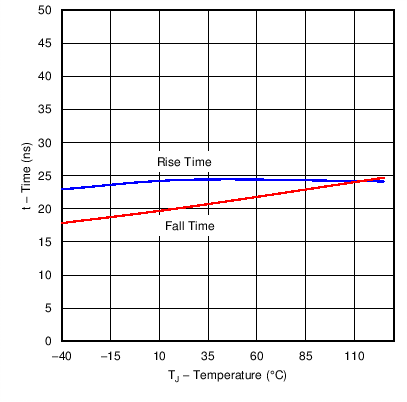

UCC28180 C016_SLUSBQ5.png
VCC = 15 V CGATE = 4.7 nF VGATE = 2 V-8 V
Figure 20. Gate Drive Rise/Fall Time vs. Temperature
UCC28180 C018_SLUSBQ5.png
VCC = 15 V IGATE = 20 mA
Figure 22. Gate Low Voltage vs. Temperature
