8.21.6.1 SDIO Timing Specifications

Figure 8-6 and Figure 8-7 show the SDIO switching characteristics over recommended operating conditions and with the default rate for input and output.

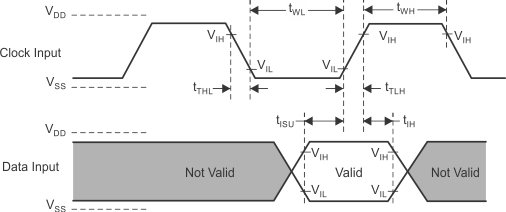

GUID-BECF1F2D-9E3E-4D7A-9F63-D5902DA3F4D6-low.gifFigure 8-6 SDIO Default Input Timing
GUID-C6AE4A3B-62AD-41EA-8289-AAC7D5A2C859-low.gifFigure 8-7 SDIO Default Output Timing

Table 8-1 lists the SDIO default timing characteristics.

Table 8-1 SDIO Default Timing Characteristics
(1)MINMAXUNIT
fclockClock frequency, CLK(2)0.026.0MHz
DCLow, high duty cycle(2)40.0%60.0%
tTLHRise time, CLK(2)10.0ns
tTHLFall time, CLK(2)10.0ns
tISUSetup time, input valid before CLK ↑(2)3.0ns
tIHHold time, input valid after CLK ↑(2)2.0ns
tODLYDelay time, CLK ↓ to output valid(2)7.010.0ns
ClCapacitive load on outputs(2)15.0pF
(1) To change the data out clock edge from the falling edge (default) to the rising edge, set the configuration bit.
(2) Parameter values reflect maximum clock frequency.
