7.8 Timing Requirements

typical values at TA = 25°C, full temperature range is TMIN = –40°C to TMAX = 85°C, ADC sampling rate = 500 MSPS, 50% clock duty cycle, VA3.0 = 3 V; VA1.8 = 1.8 V; VA1.2 = VACLK1.2 = 1.2 V; –1 dBFS differential input, and R(term) = 100 Ω (unless otherwise noted) (see Figure 1 and Figure 2 for timing diagrams)
PARAMETER NOTES MIN NOM MAX UNIT
ADC SAMPLING INSTANT TIMING CHARACTERISTICS
FS Sampling rate Equal to FCLKIN / CLKDIV 100 500 MSPS
FCLKIN Input clock frequency at CLKIN inputs CLKDIV = 1 100 500 MHz
CLKDIV = 2 200 1000
CLKDIV = 4 400 2000
DC Input clock (CLKIN) duty cycle CLKDIV = 1 50% ± 20%
CLKDIV = 2 or CLKDIV = 4 50% ± 5%
tLAT-ADC ADC core latency Delay from a reference sampling instant to the boundary of the internal LMFC where the reference sample is the first sample of the next transmitted multi-frame. In this device, the frame clock period is equal to the sampling clock period. 7 Frame clock cycles
tJ Additive sampling aperture jitter Depends on input CLKIN differential edge rate at the zero crossing, dVSS/dt, tested with 5 V/ns edge rate. fs
CLKDIV = 1 80
CLKDIV = 2, 4 90
OVER-RANGE INTERFACE TIMING CHARACTERISTICS (SDO/OVR(1))
tODH OVR assertion delay Functional delay between an overrange value sampled and OVR asserted 8 Frame clock cycles
tODL OVR de-assertion delay Functional delay between first underrange value sampled until OVR de-assertion, configurable via SPI Frame clock cycles
Configured for minimum delay tODH
Configured for maximum delay tODH + 15
SYSREF TIMING CHARACTERISTICS
tPH-SYS SYSREF assertion duration Required duration of SYSREF assertion after rising edge event 2 Frame clock cycles
tPL-SYS SYSREF de-assertion duration Required duration of SYSREF de-assertion after falling edge event 2 Frame clock cycles
tS-SYS SYSREF setup time Relative to CLKIN rising edge 350 ps
tH-SYS SYSREF hold time Relative to CLKIN rising edge 0 ps
JESD204B INTERFACE LINK TIMING CHARACTERISTICS
tD-LMFC SYSREF to LMFC delay Functional delay between SYSREF assertion latched and LMFC frame boundary. Depends on CLKDIV setting
CLKDIV = 1 4 CLKIN cycles
4 Frame clock cycles
CLKDIV = 2 10 CLKIN cycles
5 Frame clock cycles
CLKDIV = 4 18 CLKIN cycles
4.5 Frame clock cycles
tD-K28 LMFC to K28.5 delay Functional delay between the start of the first K28.5 frame during code group synchronization at the serial output and the preceding LMFC frame boundary 5.6 6.6 7.6 Frame clock cycles
tD-ILA LMFC to ILA delay Functional delay between the start of the first ILA frame during initial lane synchronization at the serial output and the preceding LMFC frame boundary 5.6 6.6 7.6
tD-DATA LMFC to valid data delay Functional delay between the start of the first valid data frame at the serial output and the preceding LMFC frame boundary 5.6 6.6 7.6
tS-SYNCb-F SYNCb setup time Required SYNCb setup time-relative to the internal LMFC boundary(2) 3 Frame clock cycles
tH-SYNCb-F SYNCb hold time Required SYNCb hold time relative to the internal LMFC boundary(2) 0
tH-SYNCb SYNCb assertion hold time Required SYNCb hold time after assertion before de-assertion to initiate a link resynchronization 4
tILA ILA duration Duration of the ILA sequence 4 Multi-frame
clock cycles
SERIAL OUTPUT DATA TIMING CHARACTERISTICS
FSR Serial bit rate 1 5.0 Gb/s
UI Unit interval 5.0 Gb/s data rate 200 ps
tR, tF Rise/fall times 5.0 Gb/s data rate, default values for VOD and DEM 43 ps
DJ Deterministic jitter Includes periodic jitter (PJ), data dependent jitter (DDJ), duty cycle distortion (DCD), and inter-symbol interference (ISI); 5.0 Gb/s data rate 0.049 p-p UI
9.82 p-p ps
RJ Random jitter Assumes BER of 1e-15 (Q = 15.88); 5.0 Gb/s data rate 0.119 p-p UI
1.50 rms ps
TJ Total jitter Sum of DJ and RJ, assumes BER of 1e-15 (Q = 15.88); 5.0 Gb/s data rate 0.169 p-p UI
33.6 p-p ps
SPI BUS TIMING CHARACTERISTICS(3)
ƒSCLK Serial clock frequency fSCLK = 1 / tP 20 MHz
tPH SCLK pulse width – high 6 ns
tPL SCLK pulse width – low 7 ns
tSSU SDI input data setup time 3 ns
tSH SDI input data hold time 1 ns
tODZ SDO output data driven-to-3-state time 10 ns
tOZD SDO output data 3-state-to-driven time 25 ns
tOD SDO output data delay time 25 ns
tCSS CSB setup time 3 ns
tCSH CSB hold time 1 ns
tIAG Inter-access gap Minimum time CSB must be de-asserted between accesses 1 ns
(1) The SDO/OVR pin is configured in over-range output mode.
(2) The SYNCb setup and hold times determine the multi-frame after which the ILA is initiated but meeting the setup and hold times are not required to achieve deterministic latency.
(3) All timing specifications for the SPI given for VSPI = 1.8-V logic levels and a 5-pF capacitive load on the SDO pin. Timing specification require larger margins for VSPI= 1.2 V. The serial bit rate of the SPI should be limited to 10 Mb/s or lower for VSPI = 1.2-V logic.
ADC31JB68 Sampling_Timing_Diagram.gifFigure 1. Sample Timing Diagram

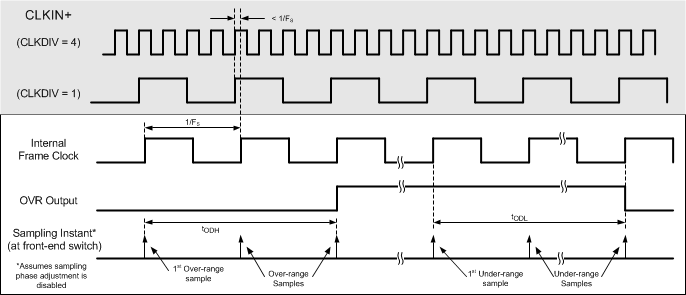

ADC31JB68 OVR_Timing.gifFigure 2. Overrange (OVR) Timing Diagram
ADC31JB68 SPI_Timing_Diagram.gifFigure 3. SPI Timing Diagram
