9.3.11.2 Frame Format

The lanes per device (L), octets per frame (F), samples per frame (S), and high-density mode (HD) parameters are not independently configurable. The N, N’, CS, CF, M, and HD parameters are fixed and not configurable. Table 2 lists the available JESD204B formats and valid ranges for the ADC31JB68. The ranges are limited by the Serdes line rate and the maximum ADC sample frequency. Figure 34 shows the data format.

Table 2. Available JESD204B Formats and Valid Ranges

L M F S MAX ADC SAMPLING RATE
(Msps)		 MAX fSERDES
(Gbps)
2 1 1 1 500 5.0

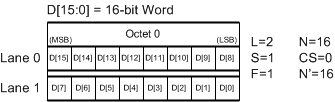

ADC31JB68 Data_Format.gifFigure 34. Transport Layer Definitions for the Supported-Lane Configurations
