8.3.2 Clock Input

The device clock inputs can be driven differentially (sine, LVPECL, or LVDS) or single-ended (LVCMOS), with little or no difference in performance between them. The common-mode voltage of the clock inputs is set to 0.95 V using internal 5-kΩ resistors. The self-bias clock inputs of the ADC3421-Q1 can be driven by the transformer-coupled, sine-wave clock source or by the ac-coupled, LVPECL and LVDS clock sources, as shown in Figure 36, Figure 37, and Figure 38. See Figure 39 for details regarding the internal clock buffer.

ADC3421-Q1 ai_dif_sinewave_clk_bas550.gif
NOTE: RT = termination resistor, if necessary.
Figure 36. Differential Sine-Wave Clock Driving Circuit
ADC3421-Q1 ai_lvds_clk_drv_bas550.gifFigure 37. LVDS Clock Driving Circuit
ADC3421-Q1 ai_lvpecl_clk_drv_bas550.gifFigure 38. LVPECL Clock Driving Circuit

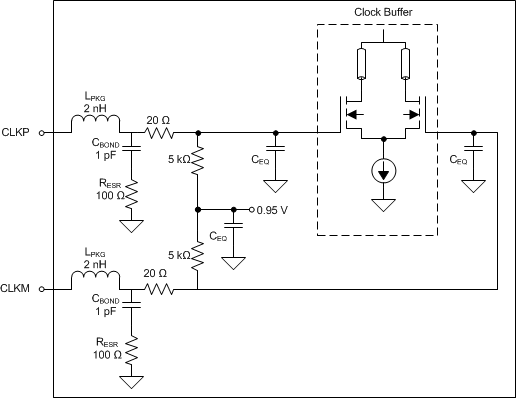

ADC3421-Q1 ai_intclk_buffer_sbas670.gif
NOTE: CEQ is 1 pF to 3 pF and is the equivalent input capacitance of the clock buffer.
Figure 39. Internal Clock Buffer

A single-ended CMOS clock can be ac-coupled to the CLKP input, with CLKM connected to ground with a 0.1-μF capacitor, as shown in Figure 40. However, for best performance the clock inputs must be driven differentially, thereby reducing susceptibility to common-mode noise. For high input frequency sampling, TI recommends using a clock source with very low jitter. Band-pass filtering of the clock source can help reduce the effects of jitter. There is no change in performance with a non-50% duty cycle clock input.

ADC3421-Q1 ai_drv_cir_1end_las900.gifFigure 40. Single-Ended Clock Driving Circuit
