8.4.4 Internal Dither Algorithm

The ADC3421-Q1 uses an internal dither algorithm to achieve high SFDR and a clean spectrum. However, the dither algorithm marginally degrades SNR, creating a trade-off between SNR and SFDR. If desired, the dither algorithm can be turned off by using the DIS DITH CHx registers bits. Figure 45 and Figure 46 show the effect of using dither algorithms.

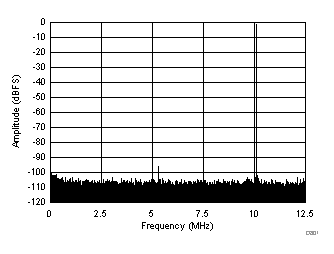

ADC3421-Q1 D801_SBAS673.gif
SFDR = 95 dBc, SNR = 71 dBFS, SINAD = 71 dBFS,
THD = 94 dBc, HD2 = 106 dBc, HD3 = 95 dBc
Figure 45. FFT for 10-MHz Input Signal
(Chopper On, Dither On)

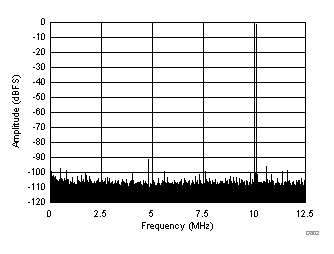

ADC3421-Q1 D802_SBAS673.gif
SFDR = 90 dBc, SNR = 71.2 dBFS, SINAD = 71.1 dBFS,
THD = 89 dBc, HD2 = 90 dBc, HD3 = 106 dBc
Figure 46. FFT for 10-MHz Input Signal
(Chopper On, Dither Off)
