6.8 Typical Characteristics

AVDD = 5 V, BVDD = 3 V, CH x+ = 0.5 V to 4.5 V, CH x– = 2.5 V, REFIN = external, CLKSEL = 0, and 16-bit sinc3 filter, with OSR = 256 (unless otherwise noted)
ADS1204 tc_inl-sig_20m_bas301.gif
CLKIN = 20 MHz
Figure 2. Integral Nonlinearity vs Input Signal
ADS1204 tc_inl_match-sig_bas301.gif
Figure 4. Integral Linearity Match of Channels
vs Input Signal
ADS1204 tc_oset-tmp_bas301.gif
Figure 6. Offset vs Temperature
ADS1204 tc_oset-ps_bas301.gif
Figure 8. Offset vs Power Supply
ADS1204 tc_g-tmp_bas301.gif
Figure 10. Gain Error vs Temperature
ADS1204 tc_snr-tmp_bas301.gif
Figure 12. SNR vs Temperature
ADS1204 tc_thd-tmp_bas301.gif
Figure 14. THD vs Temperature
ADS1204 tc_sfdr-frq_20m_bas301.gif
CLKIN = 20 MHz
Figure 16. SFDR and THD vs Input Frequency
ADS1204 tc_spec_1k_bas301.gif
4096-Point FFT, fIN = 1 kHz, 4 VPP
Figure 18. Frequency Spectrum
ADS1204 tc_enob-ratio_bas301.gif
Figure 20. ENOB vs Decimation Ratio
ADS1204 tc_cmrr-frq_bas301.gif
Figure 22. CMRR vs Frequency
ADS1204 tc_clk-tmp_bas301.gif
Figure 24. Clock Frequency vs Temperature
ADS1204 tc_inl-sig_32m_bas301.gif
CLKIN = 32 MHz
Figure 3. Integral Nonlinearity vs Input Signal
ADS1204 tc_inl-tmp_bas301.gif
Figure 5. Maximum Integral Nonlinearity
vs Temperature
ADS1204 tc_oset_match-tmp_bas301.gif
Figure 7. Offset Match vs Temperature
ADS1204 tc_vref-tmp_bas301.gif

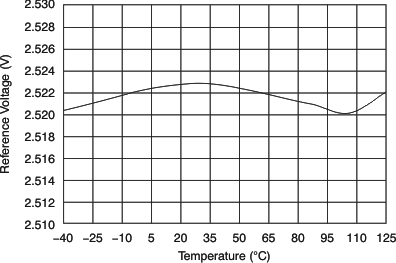

Figure 9. Internal Reference vs Temperature
ADS1204 tc_gm-tmp_bas301.gif
Figure 11. Gain Match vs Temperature
ADS1204 tc_sinad-tmp_bas301.gif
Figure 13. SINAD vs Temperature
ADS1204 tc_sfdr-tmp_bas301.gif
Figure 15. SFDR vs Temperature
ADS1204 tc_sfdr-frq_32m_bas301.gif
CLKIN = 32 MHz
Figure 17. SFDR and THD vs Input Frequency
ADS1204 tc_spec_5k_bas301.gif
4096-Point FFT, fIN = 5 kHz, 4 VPP
Figure 19. Frequency Spectrum
ADS1204 tc_psc-tmp_bas301.gif

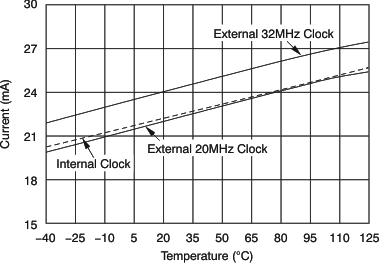

Figure 21. Analog Power-Supply Current
vs Temperature
ADS1204 tc_psrr-frq_bas301.gif
Figure 23. PSRR vs Frequency
ADS1204 tc_clk-ps_bas301.gif
Figure 25. Clock Frequency vs Power Supply
