9.3 Initialization Setup

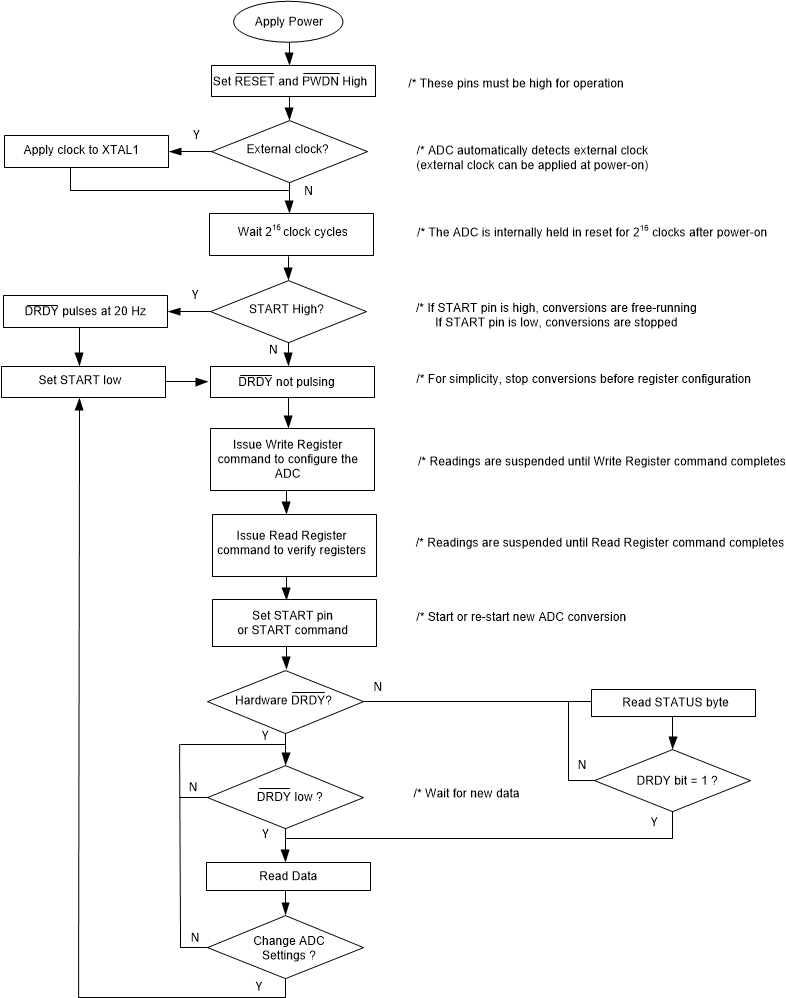

Figure 87 shows a general configuration and measurement procedure.

ADS1235 ads1235-initialization-setup.gifFigure 87. ADC Configuration and Measurement Procedure
