6.6 Typical Characteristics

at TA = 25°C, AVDD = 5 V, DVDD = 3.3 V, VREF = 2.5 V (external), and fDATA = 1 MSPS (unless otherwise noted)
ADS8355 D001.gif

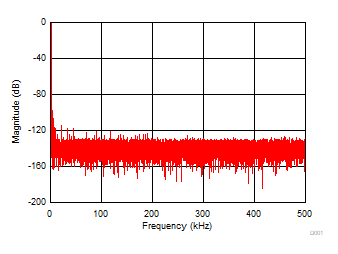

fIN = 2 kHz, SNR = 91.27 dB, THD = –96.78 dB
Figure 2. Typical FFT ADC A
ADS8355 D003.gif
fIN = 2 kHz

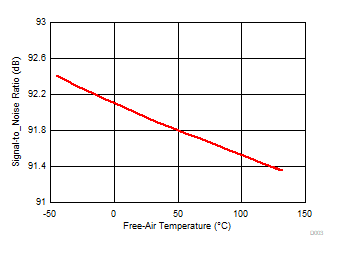

Figure 4. SNR vs Free-Air Temperature
ADS8355 D005.gif
fIN = 2 kHz
Figure 6. THD vs Free-Air Temperature

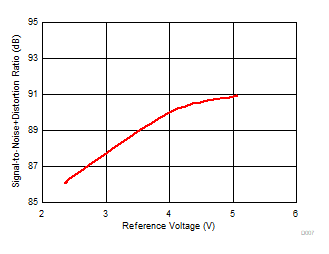

ADS8355 D007.gif
fIN = 2 kHz

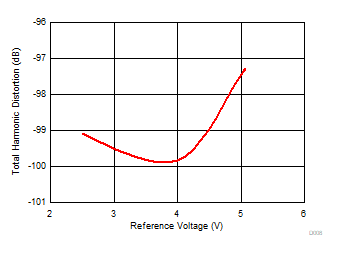

Figure 8. SINAD vs Reference Voltage

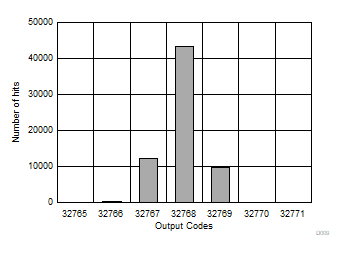

ADS8355 D009.gif
Number of samples = 65536, standard deviation = 0.59
Figure 10. DC Histogram

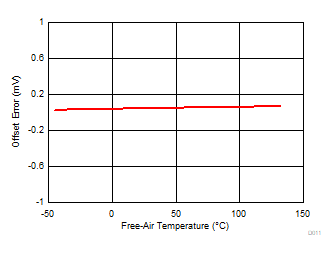

ADS8355 D011.gif
Figure 12. Offset Error vs Free-Air Temperature

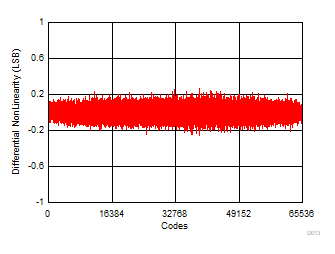

ADS8355 D013.gif
Figure 14. Differential Nonlinearity ADC A

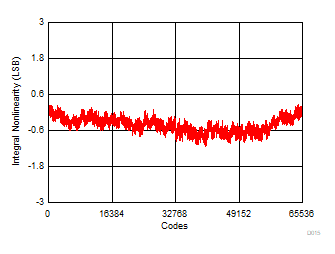

ADS8355 D015.gif

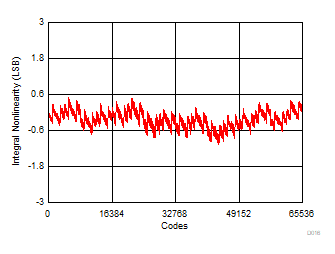

Figure 16. Integral Nonlinearity ADC A
ADS8355 D017.gif

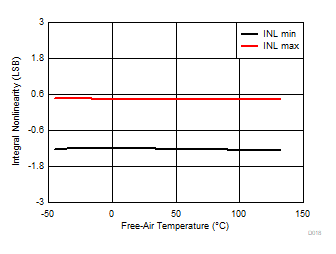

Figure 18. Differential Nonlinearity vs Free-Air Temperature
ADS8355 D019.gif

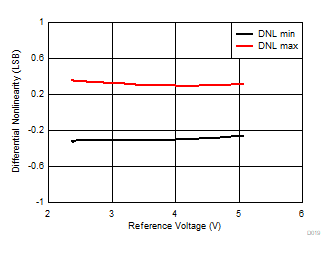

Figure 20. Differential Nonlinearity vs Reference Voltage

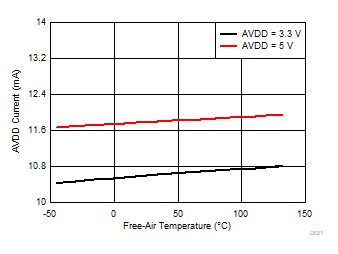

ADS8355 D021.gif
Figure 22. Analog Supply Current vs Free-Air Temperature
ADS8355 D002.gif
fIN = 2 kHz, SNR = 91.31 dB, THD = –96.04 dB
Figure 3. Typical FFT ADC B
ADS8355 D004.gif
fIN = 2 kHz

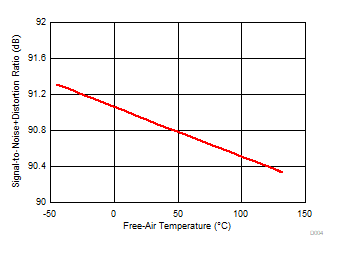

Figure 5. SINAD vs Free-Air Temperature
ADS8355 D006.gif
fIN = 2 kHz

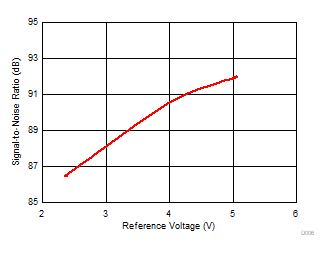

Figure 7. SNR vs Reference Voltage
ADS8355 D008.gif
fIN = 2 kHz
Figure 9. THD vs Reference Voltage
ADS8355 D010.gif
VREFIO_x = 2.5 V
Figure 11. Internal Reference vs Free-Air Temperature

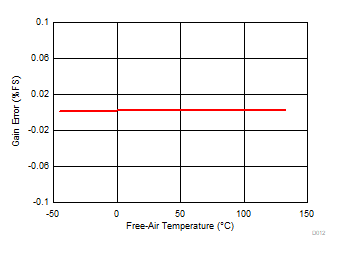

ADS8355 D012.gif
Figure 13. Gain Error vs Free-Air Temperature
ADS8355 D014.gif

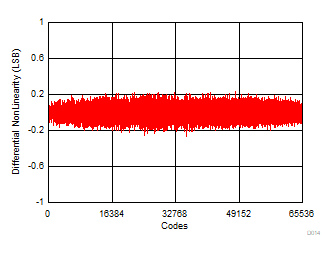

Figure 15. Differential Nonlinearity ADC B
ADS8355 D016.gif
Figure 17. Integral Nonlinearity ADC B
ADS8355 D018.gif
Figure 19. Integral Nonlinearity vs Free-Air Temperature
ADS8355 D020.gif
Figure 21. Integral Nonlinearity vs Reference Voltage

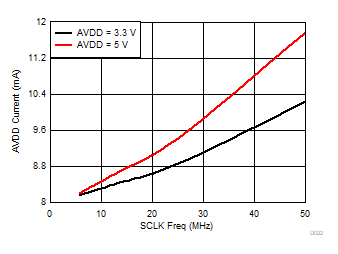

ADS8355 D022.gif
Figure 23. Analog Supply Current vs SCLK Frequency
