7.3.3 Transfer Function

The device supports two input configurations:

  1. Default, single-ended inputs, INPUT_CONFIG register bit 0 = 0
  2. Pseudo-differential inputs, INPUT_CONFIG register bit 0 = 1

The device supports two output data formats:

  1. Default, straight binary output, DATA_OUT_CTRL register bit 0 = 0
  2. Two's compliment output, DATA_OUT_CTRL register bit 0 = 1

Equation 5 calculates the device resolution:

Equation 5. 1 LSB = (FSR_ADC_x) / (2N)

where

  • N = 16 and
  • FSR_ADC_x is the full-scale input range of the ADC

Table 4 and Table 5 show the different input voltages and the corresponding output codes from the device.

Table 4. Transfer Characteristics for Straight Binary Output (Default)

INPUT CONFIGURATION INPUT VOLTAGE OUTPUT CODE (Hex)
STRAIGHT BINARY
AINP_x AINM_x AINP_x - AINM_x CODE ADS8355
Single-ended ≤ 1 LSB 0 ≤ 1 LSB ZC 0000
FSR_ADC_x / 2 FSR_ADC_x / 2 MC 7FFF
≥ FSR_ADC_x – 1 LSB ≥ FSR_ADC_x – 1 LSB FSC FFFF
Pseudo-differential ≤ 1 LSB FSR_ADC_x / 2 ≤ –FSR_ADC_x / 2 + 1 LSB ZC 0000
FSR_ADC_x / 2 0 MC 7FFF
≥ FSR_ADC_x – 1 LSB ≥ FSR_ADC_x / 2 – 1 LSB FSC FFFF

Table 5. Transfer Characteristics for Twos Compliment Output

INPUT CONFIGURATION INPUT VOLTAGE OUTPUT CODE (Hex)
TWO'S COMPLIMENT
AINP_x AINM_x AINP_x - AINM_x CODE ADS8355
Single-ended ≤ 1 LSB 0 ≤ 1 LSB NFSC 8000
FSR_ADC_x / 2 FSR_ADC_x / 2 MC 0000
≥ FSR_ADC_x – 1 LSB ≥ FSR_ADC_x – 1 LSB PFSC 7FFF
Pseudo-differential ≤ 1 LSB FSR_ADC_x / 2 ≤ –FSR_ADC_x / 2 + 1 LSB NFSC 8000
FSR_ADC_x / 2 0 MC 0000
≥ FSR_ADC_x – 1 LSB ≥ FSR_ADC_x / 2 – 1 LSB PFSC 7FFF

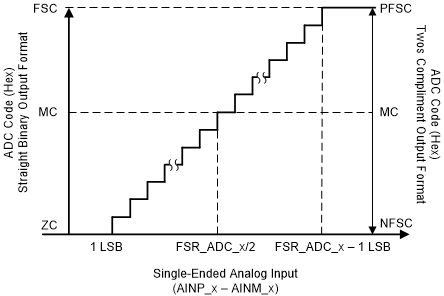

Figure 27 shows the ideal device transfer characteristics for the single-ended analog input.

ADS8355 Trans_Funct_SE_BAS761.gif
Figure 27. Ideal Transfer Characteristics for a Single-Ended Analog Input

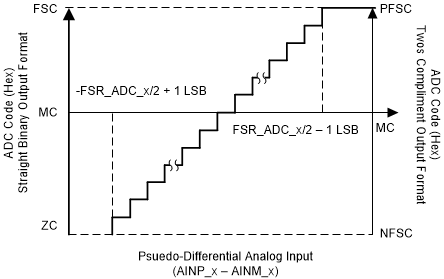

Figure 28 shows the ideal device transfer characteristics for the pseudo-differential analog input.

ADS8355 Trans_Funct_PD_BAS761.gifFigure 28. Ideal Transfer Characteristics for a Pseudo-Differential Analog Input
