7.12.11 TX Typical Characteristics at 2.6 GHz

Typical values at TA = +25°C with nominal supplies. Unless otherwise noted, TX input data rate = 491.52 MSPS, fDAC = 11796.48 MSPS, interleave mode, AOUT = –1 dBFS, 1st Nyquist zone output, Internal PLL, fREF = 491.52 MSPS, 24x Interpolation, DSA = 0 dB, Sin(x)/x enabled, DSA calibrated.

Including PCB and cable losses, Aout = -0.5 dBFS, DSA = 0, 2.6 GHz matching
Figure 7-384 TX Full Scale vs RF Frequency at 5898.24 MSPS
Including PCB and cable losses, Aout = -0.5 dBFS, DSA = 0, 2.6 GHz matching
Figure 7-386 TX Full Scale vs RF Frequency at 11796.48 MSPS
GUID-77799794-B5AC-4385-AAB8-39134096F7C3-low.svg
fDAC = 8847.36 MSPS, Aout = -0.5 dBFS, matching 2.6 GHz
Figure 7-388 TX Output Power vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz
Differential Gain Error = POUT(DSA Setting – 1) – POUT(DSA Setting) + 1
Figure 7-390 TX Calibrated Differential Gain Error vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz
Integrated Gain Error = POUT(DSA Setting) – POUT(DSA Setting = 0) + (DSA Setting)
Figure 7-392 TX Calibrated Integrated Gain Error vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, channel with the median variation over DSA setting at 25°C
Differential Gain Error = POUT(DSA Setting – 1) – POUT(DSA Setting) + 1
Figure 7-394 TX Calibrated Differential Gain Error vs DSA Setting and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, channel with the median variation over DSA setting at 25°C
Integrated Gain Error = POUT(DSA Setting) – POUT(DSA Setting = 0) + (DSA Setting)
Figure 7-396 TX Calibrated Integrated Gain Error vs DSA Setting and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz
Differential Phase Error = PhaseOUT(DSA Setting – 1) – PhaseOUT(DSA Setting)
Phase DNL spike may occur at any DSA setting.
Figure 7-398 TX Calibrated Differential Phase Error vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 7-400 TX Calibrated Integrated Phase Error vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, channel with the median variation over DSA setting at 25°C
Differential Phase Error = PhaseOUT(DSA Setting – 1) – PhaseOUT(DSA Setting)
Figure 7-402 TX Calibrated Differential Phase Error vs DSA Setting and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, channel with the median variation over DSA setting at 25°C
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 7-404 TX Calibrated Integrated Phase Error vs DSA Setting and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, fCENTER = 2.6 GHz, matching at 2.6 GHz, –13 dBFS each tone
Figure 7-406 TX IMD3 vs DSA Setting at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, fCENTER = 2.6 GHz, matching at 2.6 GHz, –13 dBFS each tone, worst channel.
Figure 7-408 TX IMD3 vs Tone Spacing and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, fCENTER = 2.6 GHz, matching at 2.6 GHz, –13 dBFS each tone
Figure 7-410 TX IMD3 vs Tone Spacing and Temperature
TM1.1, POUT_RMS = –13 dBFS
Figure 7-412 TX 20-MHz LTE Output Spectrum at 2.6 GHz (Band 41)
Matching at 2.6 GHz, single carrier 20-MHz BW TM1.1 LTE
Figure 7-414 TX 20-MHz LTE alt-ACPR vs Digital Level at 2.6 GHz
Matching at 2.6 GHz, single carrier 100-MHz BW TM1.1 NR
Figure 7-416 TX 100-MHz NR ACPR vs Digital Level at 2.6 GHz
Matching at 2.6 GHz, single carrier 20-MHz BW TM1.1 LTE
Figure 7-418 TX 20-MHz LTE ACPR vs DSA at 2.6 GHz
Matching at 2.6 GHz, single carrier 100-MHz BW TM1.1 NR
Figure 7-420 TX 100-MHz NR ACPR vs DSA at 2.6 GHz
Matching at 2.6 GHz, fDAC = 11.79648 GSPS, interleave mode, normalized to output power at harmonic frequency
Figure 7-422 TX HD2 vs Digital Amplitude and Output Frequency at 2.6 GHz
Inband = 2600 MHz ± 600 MHz, fDAC = 12 GSPS, not including FS/3 and FS/4, external clock mode, non-interleave mode
Figure 7-424 Two Tone Inband SFDR vs Digital Amplitude at 2.6 GHz
fDAC = 8847.36 MSPS, interleave mode, 2.6 GHz matching, includes PCB and cable losses. ILn = fS/n ± fOUT.
Figure 7-426 TX Single Tone (–12 dBFS) Output Spectrum at 2.6 GHz (0-fDAC)
fDAC = 8847.36 MSPS, interleave mode, 2.6 GHz matching, includes PCB and cable losses. ILn = fS/n ± fOUT.
Figure 7-428 TX Single Tone (–6 dBFS) Output Spectrum at 2.6 GHz (0-fDAC)
fDAC = 8847.36 MSPS, interleave mode, 2.6 GHz matching, includes PCB and cable losses. ILn = fS/n ± fOUT.
Figure 7-430 TX Single Tone (–1 dBFS) Output Spectrum at 2.6 GHz (0-fDAC)
fDAC = 8847.36 MSPS, straight mode, 2.6 GHz matching, includes PCB and cable losses. ILn = fS/n ± fOUT and is due to mixing with digital clocks.
Figure 7-432 TX Single Tone (–12 dBFS) Output Spectrum at 2.6 GHz (0-fDAC)
fDAC = 8847.36 MSPS, straight mode, 2.6 GHz matching, includes PCB and cable losses. ILn = fS/n ± fOUT and is due to mixing with digital clocks.
Figure 7-434 TX Single Tone (–6 dBFS) Output Spectrum at 2.6 GHz (0-fDAC)
fDAC = 8847.36 MSPS, straight mode, 2.6 GHz matching, includes PCB and cable losses. ILn = fS/n ± fOUT and is due to mixing with digital clocks.
Figure 7-436 TX Single Tone (–1 dBFS) Output Spectrum at 2.6 GHz (0-fDAC)
fDAC = 9000 MSPS, external clock mode, non-interleave mode
Figure 7-438 TX Dual Tone Output Spectrum at 2.6 GHz, -7 dBFS each (0 - DAC)
fDAC = 9000 MSPS, external clock mode, non-interleave mode
Figure 7-440 TX Dual Tone Output Spectrum at 2.6 GHz, -13 dBFS each (0 - DAC)
GUID-EBDEB7B9-73FF-4E06-8E12-218259FECDE4-low.svg
fDAC = 9000 MSPS, external clock mode, non-interleave mode
Figure 7-442 TX Dual Tone Output Spectrum at 2.6 GHz, -30 dBFS each (0 - DAC)
fDAC = 11796.48 MSPS, interleave mode, 2.6 GHz matching. 40-MHz offset from tone. Output Power = –1 dBFS. All supplies simultaneously at MIN, TYP, or MAX voltages.
Figure 7-444 TX Output Noise vs Supply Voltage at 2.6 GHz
fDAC = 9000 MSPS, non-interleave mode, external clock mode
Figure 7-446 IMD3 vs Tone Spacing and Channel at 2.6 GHz
GUID-7384CFCD-E00A-498D-A292-976298273A75-low.svg
fDAC = 9000 MSPS, non-interleave mode, external clock mode
Figure 7-448 IMD3 vs Digital Amplitude and Channel at 2.6 GHz
GUID-402B6B2D-169D-4940-B4CD-80F5EF10D85D-low.svg
fDAC = 9000 MSPS, non-interleave mode, external clock mode, 50MHz offset
Figure 7-450 NSD vs Digital Amplitude and Channel at 2.6 GHz
fDAC = fCLK = 9000 MSPS, non-interleave mode
Figure 7-452 External Clock Additive Phase Noise at 2.6 GHz
Including PCB and cable losses, Aout = -0.5 dBFS, DSA = 0, 2.6 GHz matching
Figure 7-385 TX Full Scale vs RF Frequency at 8847.36 MSPS
fDAC = 8847.36 MSPS, interleave mode, including PCB and cable losses, Aout = -0.5 dBFS, DSA = 0, 2.6 GHz matching
Figure 7-387 TX Output Fullscale vs Output Frequency and Channel
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz
Differential Gain Error = POUT(DSA Setting – 1) – POUT(DSA Setting) + 1
Figure 7-389 TX Uncalibrated Differential Gain Error vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz
Integrated Gain Error = POUT(DSA Setting) – POUT(DSA Setting = 0) + (DSA Setting)
Figure 7-391 TX Uncalibrated Integrated Gain Error vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, channel with the median variation over DSA setting at 25°C
Differential Gain Error = POUT(DSA Setting – 1) – POUT(DSA Setting) + 1
Figure 7-393 TX Uncalibrated Differential Gain Error vs DSA Setting and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, channel with the median variation over DSA setting at 25°C
Integrated Gain Error = POUT(DSA Setting) – POUT(DSA Setting = 0) + (DSA Setting)
Figure 7-395 TX Uncalibrated Integrated Gain Error vs DSA Setting and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz
Differential Phase Error = PhaseOUT(DSA Setting – 1) – PhaseOUT(DSA Setting)
Figure 7-397 TX Uncalibrated Differential Phase Error vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 7-399 TX Uncalibrated Integrated Phase Error vs DSA Setting and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, channel with the median variation over DSA setting at 25°C
Differential Phase Error = PhaseOUT(DSA Setting – 1) – PhaseOUT(DSA Setting)
Figure 7-401 TX Uncalibrated Differential Phase Error vs DSA Setting and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, channel with the medium variation over DSA setting at 25°C
Integrated Phase Error = Phase(DSA Setting) – Phase(DSA Setting = 0)
Figure 7-403 TX Uncalibrated Integrated Phase Error vs DSA Setting and Temperature at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, matching at 2.6 GHz, POUT = –13 dBFS
Figure 7-405 TX Output Noise vs Channel and Attenuation at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, fCENTER = 2.6 GHz, matching at 2.6 GHz, –13 dBFS each tone
Figure 7-407 TX IMD3 vs Tone Spacing and Channel at 2.6 GHz
fDAC = 8847.36 MSPS, straight mode, fCENTER = 2.6 GHz, fSPACING = 20 MHz, matching at 2.6 GHz
Figure 7-409 TX IMD3 vs Digital Level at 2.6 GHz
Matching at 2.6 GHz, Single tone, fDAC = 11.79648 GSPS, interleave mode, 40-MHz offset
Figure 7-411 TX Single Tone Output Noise vs Frequency and Amplitude at 2.6 GHz
Matching at 2.6 GHz, single carrier 20-MHz BW TM1.1 LTE
Figure 7-413 TX 20-MHz LTE ACPR vs Digital Level at 2.6 GHz
Matching at 2.6 GHz, single carrier 20-MHz BW TM1.1 LTE
Figure 7-415 TX 20-MHz LTE alt2-ACPR vs Digital Level at 2.6 GHz
Matching at 2.6 GHz, single carrier 100-MHz BW TM1.1 NR
Figure 7-417 TX 100-MHz NR alt-ACPR vs Digital Level at 2.6 GHz
Matching at 2.6 GHz, single carrier 20-MHz BW TM1.1 LTE
Figure 7-419 TX 20-MHz LTE alt-ACPR vs DSA at 2.6 GHz
Matching at 2.6 GHz, single carrier 100-MHz BW TM1.1 NR
Figure 7-421 TX 100-MHz NR alt-ACPR vs DSA at 2.6 GHz
Matching at 2.6 GHz, fDAC = 11.79648 GSPS, interleave mode, normalized to output power at harmonic frequency
Figure 7-423 TX HD3 vs Digital Amplitude and Output Frequency at 2.6 GHz
Inband = 2600 MHz ± 600 MHz, fDAC = 12 GSPS, external clock mode, non-interleave mode
Figure 7-425 Two Tone Inband Fixed Spurs vs Digital Amplitude at 2.6 GHz
fDAC = 8847.36 MSPS, interleave mode, 2.6 GHz matching, includes PCB and cable losses
Figure 7-427 TX Single Tone (–12 dBFS) Output Spectrum at 2.6 GHz (±300 MHz)
fDAC = 8847.36 MSPS, interleave mode, 2.6 GHz matching, includes PCB and cable losses

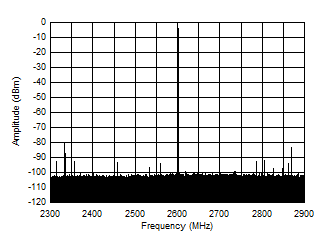

Figure 7-429 TX Single Tone (–6 dBFS) Output Spectrum at 2.6 GHz (±300 MHz)
fDAC = 8847.36 MSPS, interleave mode, 2.6 GHz matching, includes PCB and cable losses
Figure 7-431 TX Single Tone (–1 dBFS) Output Spectrum at 2.6 GHz (±300 MHz)
fDAC = 8847.36 MSPS, straight mode, 2.6 GHz matching, includes PCB and cable losses
Figure 7-433 TX Single Tone (–12 dBFS) Output Spectrum at 2.6 GHz (±300 MHz)
fDAC = 8847.36 MSPS, straight mode, 2.6 GHz matching, includes PCB and cable losses
Figure 7-435 TX Single Tone (–6 dBFS) Output Spectrum at 2.6 GHz (±300 MHz)
fDAC = 8847.36 MSPS, straight mode, 2.6 GHz matching, includes PCB and cable losses
Figure 7-437 TX Single Tone (–1 dBFS) Output Spectrum at 2.6 GHz (±300 MHz)
GUID-0EDC299E-FB2A-4C87-93FA-635C5D2D0559-low.svg
fDAC = 9000 MSPS, external clock mode, non-interleave mode
Figure 7-439 TX Dual Tone Output Spectrum at 2.6 GHz, -7 dBFS each (±600 MHz)
fDAC = 9000 MSPS, external clock mode, non-interleave mode
Figure 7-441 TX Dual Tone Output Spectrum at 2.6 GHz, -13dBFS each (±600 MHz)
GUID-244ACB8E-2621-4FB3-A26D-CC17D3ED59FA-low.svg
fDAC = 9000 MSPS, external clock mode, non-interleave mode
Figure 7-443 TX Dual Tone Output Spectrum at 2.6 GHz, -30 dBFS each (±600 MHz)
fDAC = 11796.48 MSPS, interleave mode, 2.6 GHz matching. 40-MHz offset from tone. Output Power = –13 dBFS. All supplies simultaneously at MIN, TYP, or MAX voltages.
Figure 7-445 TX IMD3 vs Supply Voltage at 2.6 GHz
GUID-EA991847-60ED-4DA2-95F7-657789B3525B-low.svg
fDAC = 9000 MSPS, non-interleave mode, external clock mode
Figure 7-447 IMD3 vs Tone Spacing and Amplitude at 2.6 GHz
GUID-603F08B0-C59C-4CBD-8D05-8D2EC52ADFC9-low.svg
fDAC = 9000 MSPS, non-interleave mode, external clock mode
Figure 7-449 IMD3 vs Digital Amplitude and Temperature at 2.6 GHz
fDAC = 9000 MSPS, non-interleave mode, external clock mode, 50MHz offset
Figure 7-451 NSD vs Digital Amplitude and Temperature at 2.6 GHz
