8.2.17.6 Single Read and Write

BQ25890H Single_Write_SLUSAW5.gifFigure 21. Single Write

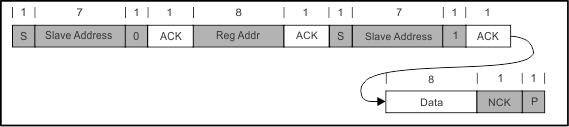

BQ25890H Single_Read_SLUSAW5.gifFigure 22. Single Read

If the register address is not defined, the charger IC send back NACK and go back to the idle state.
