JAJSG82A November 2015 – September 2018
PRODUCTION DATA.
CHG output reacts to the CHG_EN signal immediately. Similar behavior applies to DSG pin. |

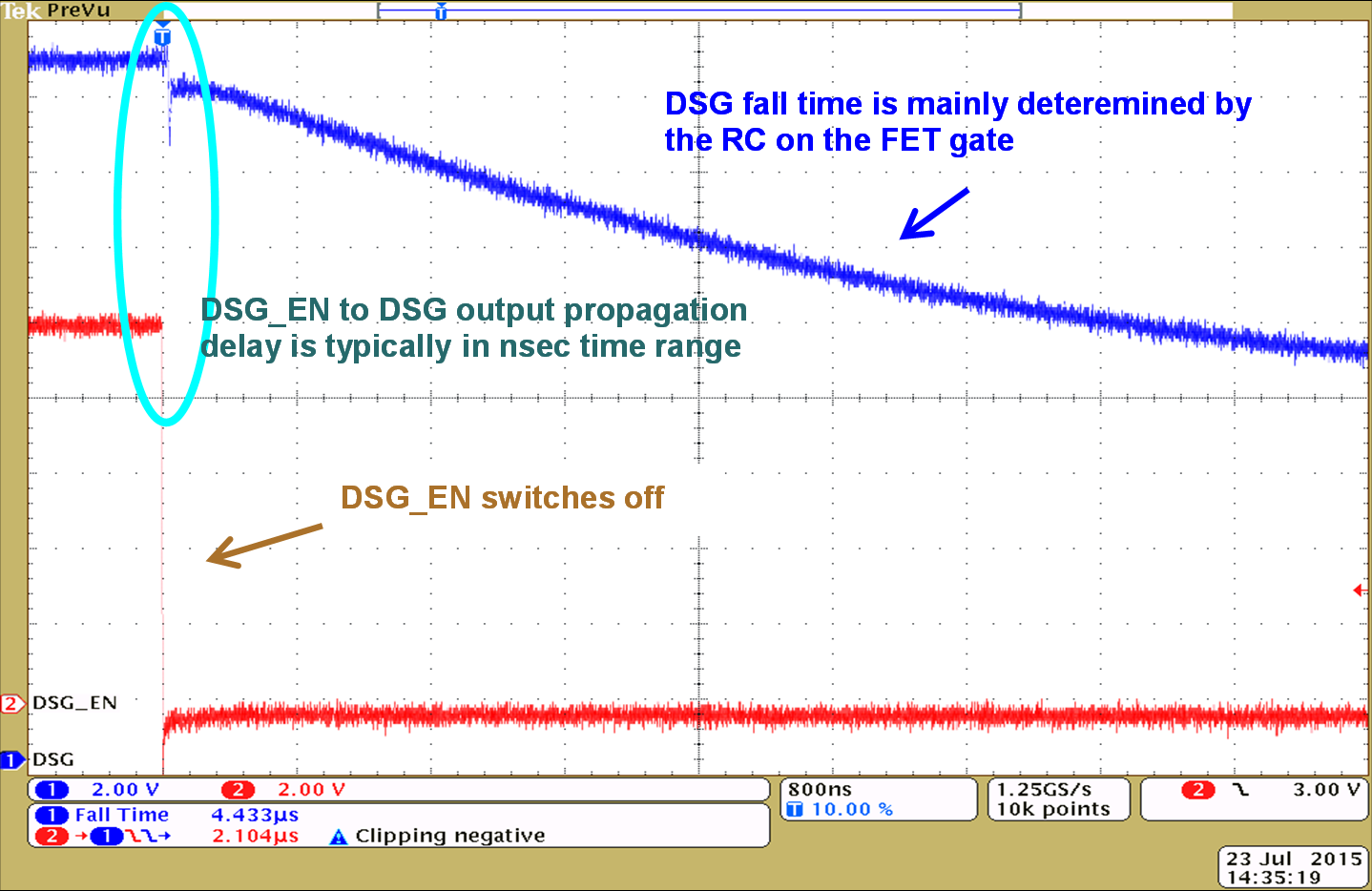

With 10 nF loading and no Rgs on DSG output. Note the time scale was 800ns/div. Hence, the DSG waveform above was basically the DSG FET fall time |

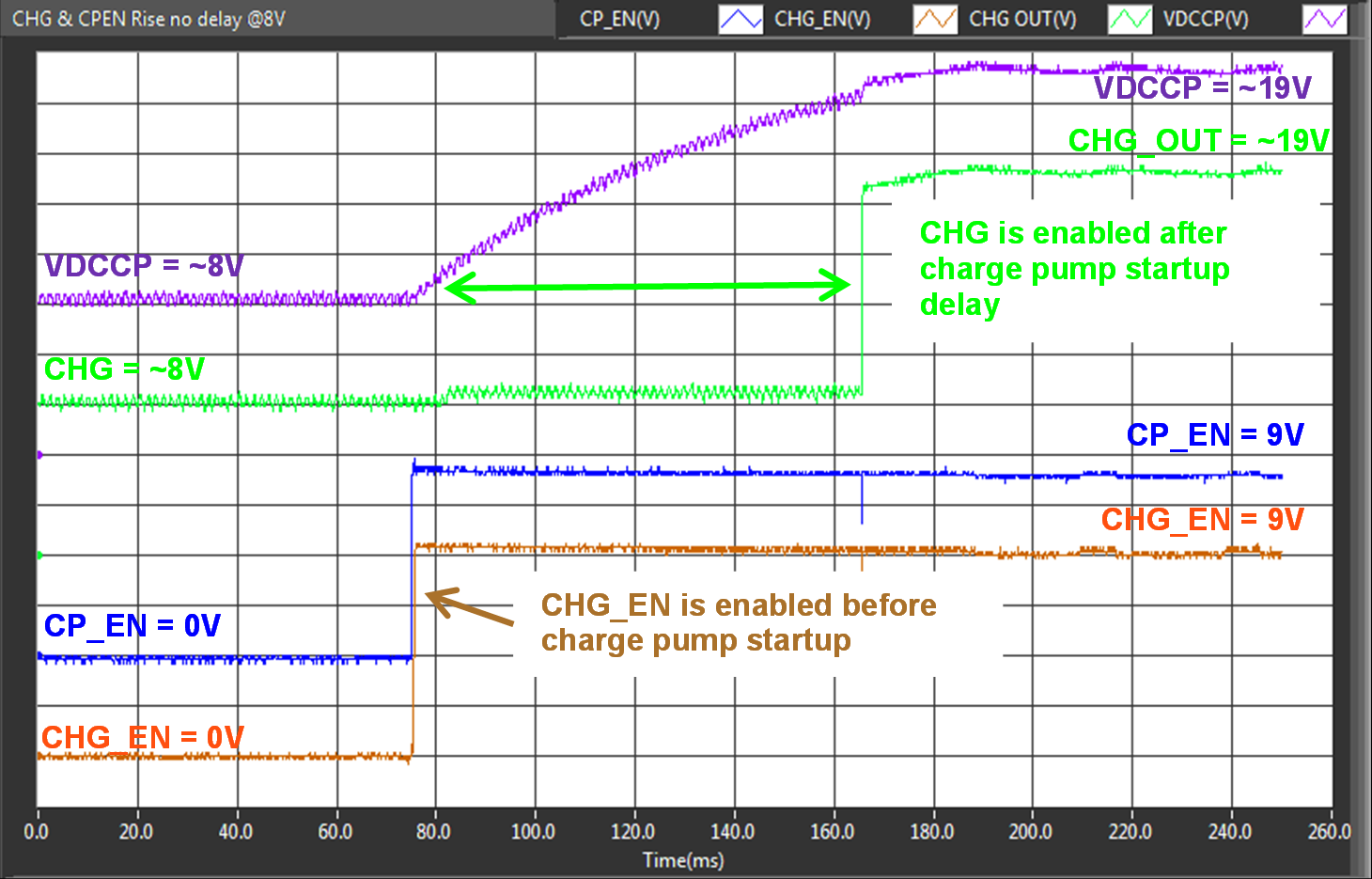

CHG output reacts to the CHG_EN signal after charge pump startup delay. Similar behavior applies to DSG pin. |
