8.3.1 Current Output Stage

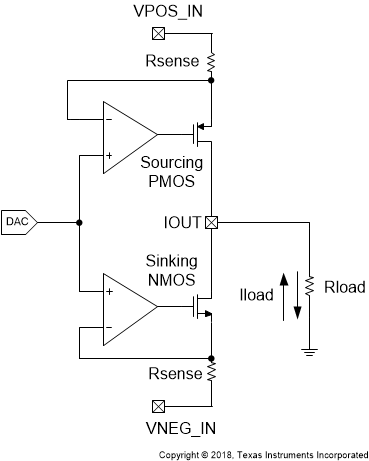

The current output stage consists of a pre-conditioner and a precision current source as shown in Figure 97. This stage provides a current output according to the DAC code. The output range can be programmed as 0 mA - 20 mA, 0 mA - 24 mA, 4 mA - 20 mA, 3.5 mA - 23.5 mA, or ±24 mA. In the current output mode, the maximum compliance voltage on pin IOUT is between (-|VNEG_IN| + 3 V) ≤ |VIOUT| ≤ (VPOS_IN – 3 V). When in unipolar current output modes the low-side of the compliance voltage limit is replaced by GND. This compliance voltage is automatically maintained when the Buck-Boost converter is used to generate these supplies (see Buck-Boost Converter section). However, when using an external supply for VPOS_IN pin (Buck-Boost converter disabled), the VPOS_IN and VNEG_IN supplies should be chosen such that this compliance voltage is maintained.

DAC8771 CurrentOut_SLASEE2_DAC8771.gifFigure 97. Current Output

The 16 bit data can be written to DAC8771 using address 0x05 (DAC data register, Table 4 and Table 5).

For a 0-mA to 20-mA output range:

Equation 1. DAC8771 EQ1_slasee2.gif

For a 0-mA to 24-mA output range:

Equation 2. DAC8771 EQ2_slasee2.gif

For a 3.5-mA to 23.5-mA output range:

Equation 3. DAC8771 EQ3_slasee2.gif

For a 4-mA to 20-mA output range:

Equation 4. DAC8771 EQ4_slasee2.gif

For a -24-mA to 24-mA output range:

Equation 5. DAC8771 EQ5_slasee2.gif

Where:

  • CODE is the decimal equivalent of the code loaded to the DAC.
  • N is the bits of resolution; 16
