8.4.3 Write Operation

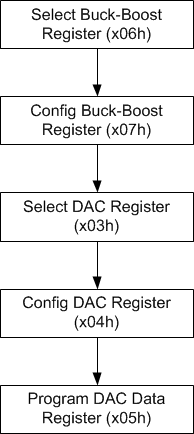

A typical write to program a channel of the DAC8771 consists of writing to the following registers in the sequence shown in Figure 12.

DAC8771 WriteSeq_SLASEE2_DAC8771.gifFigure 103. Typical Write to DAC8771
