6.9 TYpical Characteristics: VDD = +2.7 V

At TA = +25°C, VREFH = +2.5 V, VREFL = 0 V, and Gain = 1X Mode, unless otherwise noted.

DAC8881 tc_27v_25c_inl_bas422.gifFigure 44. Linearity Error vs Digital Input Code
DAC8881 tc_27v_40c_inl_bas422.gifFigure 46. Linearity Error vs Digital Input Code
DAC8881 tc_27v_105c_inl_bas422.gifFigure 48. Linearity Error vs Digital Input Code
DAC8881 tc_27v_inl-vref_bas422.gifFigure 50. Linearity Error vs
DAC8881 tc_27v_is-tmp_bas422.gifFigure 52. AVDD Supply Current vs Temperature
DAC8881 tc_27v_iref-code_2x_bas422.gifFigure 54. Reference Current vs Digital Input Code
(Gain = 2X Mode)
DAC8881 tc_27v_vo-dcc_avdd_bas422.gifFigure 56. Output Voltage vs Drive Current Capability
(Operation Near AVDD Rail)
DAC8881 tc_27v_time_0-f_bas422.gifFigure 58. Large Signal Settling Time
DAC8881 tc_27v_time_1-f_bas422.gifFigure 60. Large Signal Settling Time
DAC8881 tc_27v_glch_7-8_25v_bas422.gifFigure 62. Major Carry Glitch
DAC8881 tc_27v_glch_7-8_125v_bas422.gifFigure 64. Major Carry Glitch
DAC8881 tc_27v_25c_dnl_bas422.gifFigure 45. Differential Linearity Error vs Digital Input Code
DAC8881 tc_27v_40c_dnl_bas422.gifFigure 47. Differential Linearity Error vs Digital Input Code
DAC8881 tc_27v_105c_dnl_bas422.gifFigure 49. Differential Linearity Error vs Digital Input Code
DAC8881 tc_27v_dnl-vref_bas422.gifFigure 51. Differential Linearity Error vs Reference Voltage

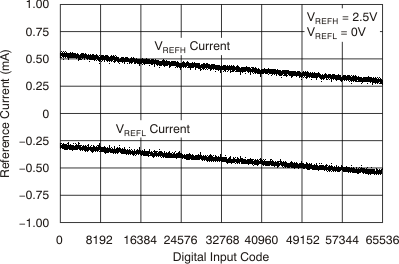

DAC8881 tc_27v_iref-code_bas422.gifFigure 53. Reference Current vs Digital Input Code
DAC8881 tc_27v_vo-dcc_bas422.gifFigure 55. Output Voltage vs Drive Current Capability
DAC8881 tc_27v_vo-dcc_agnd_bas422.gifFigure 57. Output Voltage vs Drive Current Capability
(Operation Near AGND Rail)
DAC8881 tc_27v_time_f-0_bas422.gifFigure 59. Large Signal Settling Time
DAC8881 tc_27v_time_f-1_bas422.gifFigure 61. Large Signal Settling Time
DAC8881 tc_27v_glch_8-7_25v_bas422.gifFigure 63. Major Carry Glitch
DAC8881 tc_27v_glch_8-7_125v_bas422.gifFigure 65. Major Carry Glitch
