6.9 USB Write Interface Timing Requirements

PARAMETER MIN MAX UNIT
tAV Delay from clock to valid address 0 10.7 ns
tSTBL Clock to USB_RDY1 pulse LOW 0 11.2 ns
tSTBH Clock to USB_RDY1 pulse HIGH 0 11.2 ns
tSCSL Clock to USB_PA02 pulse LOW 13 ns
tON1 Clock to data turn on 0 13.1 ns
tOFF1 Clock to data hold time 0 13.1 ns

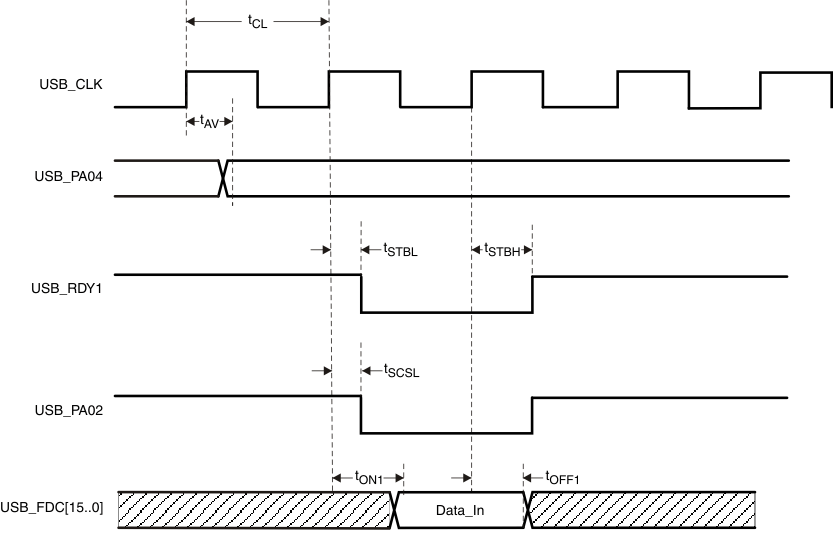

DLPC200 usb_write_lps014.gifFigure 4. USB Write Timing

See Pin Configuration and Functions for the proper connection schema if the USB interface will not be used.
