5 Pin Configuration and Functions

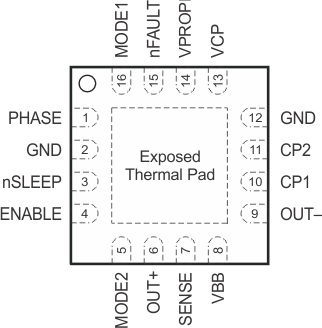

GUID-FCAB848A-6AA9-45AF-9E02-9EC2F3E5E4B1-low.gifFigure 5-1 RTY Package16-Pin QFN With Exposed Thermal PadTop View
Table 5-1 Pin Functions
PIN I/O DESCRIPTION
NAME NO.
CP1 10 PWR Charge pump switching node. Connect a X7R, 0.1-μF, VBB-rated ceramic capacitor from CP1 to CP2.
CP2 11 PWR
ENABLE 4 I Enable logic input
GND 2, 12 PWR Ground
MODE 1 16 I Mode logic input
MODE 2 5 I Mode 2 logic input
nFAULT 15 O Fault indication. Pulled logic low with fault condition; open-drain output requires an external pullup resistor.
nSLEEP 3 I Sleep mode input. Logic high to enable device; logic low to enter low-power sleep mode; internal pulldown resistor.
OUT+ 6 O DMOS full-bridge output positive
OUT– 9 O DMOS full-bridge output negative
PHASE 1 I Phase logic input for direction control
SENSE 7 IO Sense power return
VBB 8 PWR Driver supply voltage. Bypass to GND with 0.1-μF ceramic capacitors plus a bulk capacitor rated for VBB.
VCP 13 O Charge pump reservoir capacitor pin. Connect a X7R, 0.1-μF, 16-V ceramic capacitor to VBB.
VPROPI 14 O Winding current proportional voltage output
Thermal Pad PAD PWR Exposed pad for thermal dissipation; connect to GND pins.
