7.3.4 Slow Decay with Synchronous Rectification (Brake Mode)

In slow-decay mode, both low-side and high-side drivers turn on, allowing the current to circulate through the low-side and high-side body diodes of the H-bridge and the load (3 and 4 in Figure 7-1). See the Section 8.2.2.2 section for equations to calculate power for both high-side and low-side slow decay.

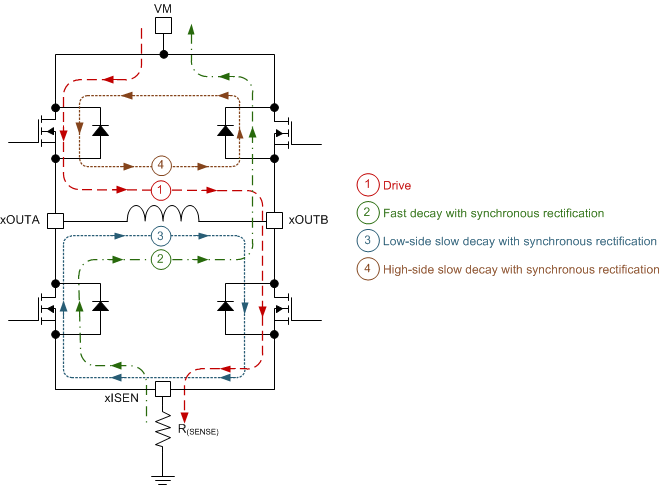

GUID-BB7F01CA-D332-4953-991B-58CB3E513363-low.gifFigure 7-1 H-Bridge Operation Modes
