8.3.1 Parallel Connections

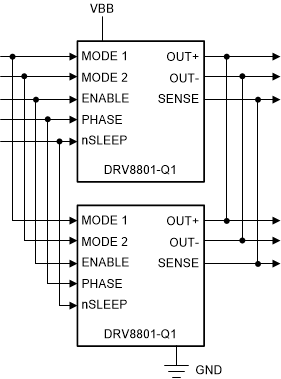

Figure 8-6 shows the signals that need to be connected together. ENABLE, PHASE, MODE 1, MODE 2, nSLEEP, OUT+, OUT-, SENSE, VBB and GND.

GUID-20201117-CA0I-CBH4-W3VQ-GSPDJ5L51MMZ-low.gif Figure 8-6 Functional Block Diagram (Connected Signals)
