7.4 Device Functional Modes

The ESD122 is a passive circuit that triggers when voltages are above VBRF or below VBRR. During ESD events, voltages as high as ±17 kV (contact) can be directed to ground via the internal diode network. When the voltages on the protected line fall below the trigger levels of ESD122 (usually within 10s of nano-seconds) the device reverts to passive.

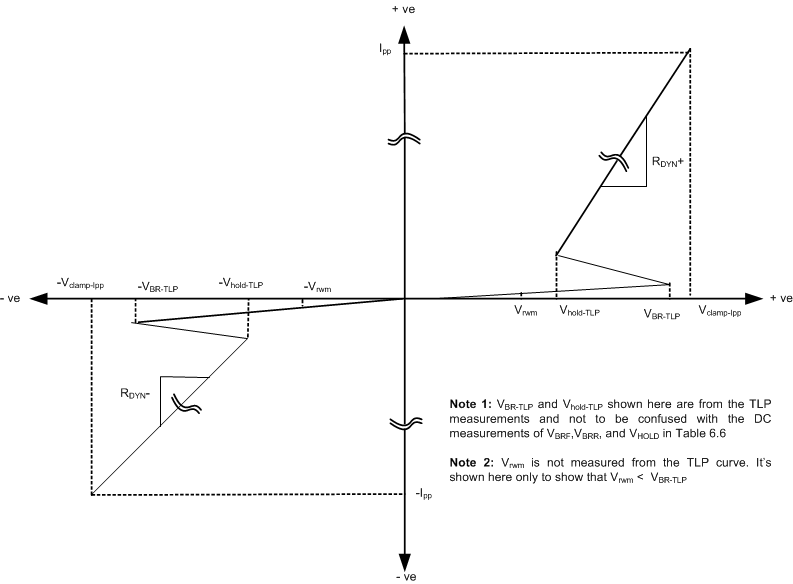

Figure 12 shows typical TLP behavior of bi-directional ESD device.

ESD122 TLP_Curve.gifFigure 12. Generic TLP I-V Curve for a Bi-Directional ESD Device
for the Illustration of Vrwm, VBR, Vhold and Vclamp
