8.2.3 Application Curves

Figure 57 shows the maximum output voltage achievable for a 32-Ω load before the onset of clipping (±5-V supplies), indicated by a sharp increase in distortion. As more current is delivered by the output transistors of an amplifier, additional distortion is produced. At low frequencies, this distortion is corrected by the feedback loop of the amplifier. However, as the loop gain of the amplifier begins to decline at high frequencies, the overall distortion begins to climb. The unique output stage design of the INA1620 greatly reduces the additional distortion at high frequency when delivering large currents, as shown in Figure 58. High-ordered harmonics (above the 2nd and 3rd) are also kept to a minimal level at high output powers, as shown in Figure 59.

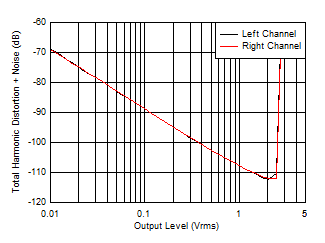

INA1620 THDN_vs_level_32_ohm.gif
22.4-kHz measurement bandwidth
Figure 57. THD+N vs Output Voltage for a 32-Ω Load

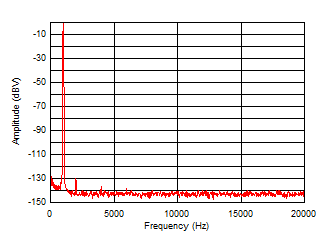

INA1620 FFT_Left_Channel_32_ohm.gif
1 kHz, 32-Ω load, 1 VRMS
Figure 59. Output Spectrum

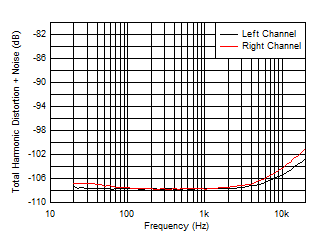

INA1620 THDN_vs_Frequency_32_ohm.gif
90-kHz measurement bandwidth, 1-VRMS output
Figure 58. THD+N vs Frequency for a 32-Ω Load
