Typical Characteristics

at TA = 25°C, VS = 1.8 V, VIN+ = 12 V, VREF = VS / 2, VENABLE = VS, and for all gain options (unless otherwise noted)
INA190 D001_SBOS863.gif
Figure 1. Input Offset Voltage Production Distribution
INA190 D007_SBOS863.gif
Figure 3. Common-Mode Rejection Production Distribution
INA190 D013_SBOS863.gif
A1 devices
Figure 5. Gain Error Production Distribution
INA190 D017_SBOS863.gif
A5 devices
Figure 7. Gain Error Production Distribution
INA190 D019_SBOS863.gif
VS = 5 V

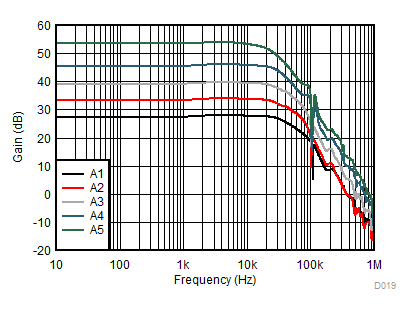

Figure 9. Gain vs Frequency

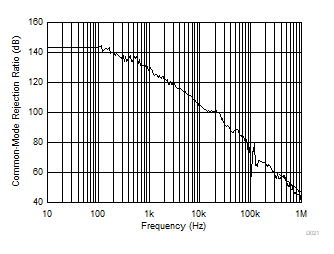

INA190 D021_SBOS863.gif
A3 devices
Figure 11. Common-Mode Rejection Ratio vs Frequency
INA190 D009_SBOS863.gif
VS = 5.0 V
Figure 13. Output Voltage Swing vs Output Current
INA190 D025_SBOS863.gif
VENABLE = 0 V

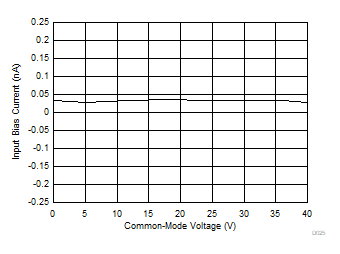

Figure 15. Input Bias Current vs Common-Mode Voltage (Shutdown)
INA190 D027_SBOS863.gif
Figure 17. Quiescent Current vs Temperature (Enabled)
INA190 D029_SBOS863.gif
VS = 5.0 V
Figure 19. Quiescent Current vs Common Mode Voltage
INA190 D031_SBOS863.gif
A3 devices
Figure 21. 0.1-Hz to 10-Hz Voltage Noise (Referred-To-Input)
INA190 D033_SBOS863.gif
A3 devices

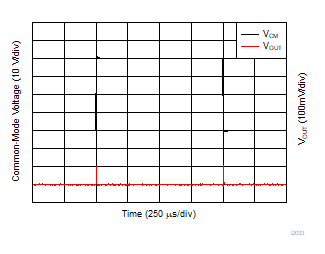

Figure 23. Common-Mode Voltage Transient Response
INA190 D035_SBOS863.gif
VS = 5.0 V, A3 devices
Figure 25. Noninverting Differential Input Overload
INA190 D037_SBOS863.gif
VS = 5.0 V, A3 devices
Figure 27. Brownout Recovery
INA190 D039_SBOS863.gif
VS = 5.0 V, VREF = 2.5 V, A1 devices
Figure 29. IB+ and IB– vs Differential Input Voltage
INA190 D040_SBOS863.gif
VS = 5.0 V, VENABLE = 0 V, VREF = 2.5 V
Figure 31. Output Leakage vs Output Voltage
(A1, A2, and A3 Devices)
INA190 D050_SBOS863.gif
VS = 5.0 V, VCM = 0 V

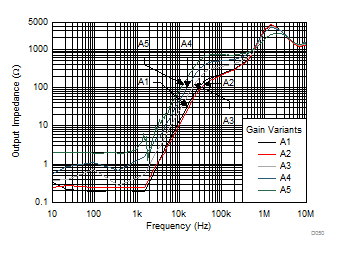

Figure 33. Output Impedance vs Frequency
INA190 D006_SBOS863.gif
Figure 2. Offset Voltage vs Temperature
INA190 D012_SBOS863.gif
Figure 4. Common-Mode Rejection Ratio vs Temperature
INA190 D014_SBOS863.gif
A2, A3, and A4 devices

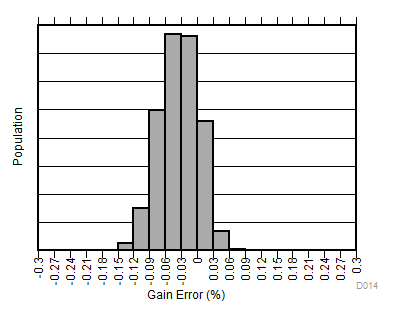

Figure 6. Gain Error Production Distribution
INA190 D018_SBOS863.gif
Figure 8. Gain Error vs Temperature
INA190 D020_SBOS863.gif
VS = 5 V
Figure 10. Power-Supply Rejection Ratio vs Frequency
INA190 D010_SBOS863.gif
VS = 1.8 V
Figure 12. Output Voltage Swing vs Output Current
INA190 D024_SBOS863.gif
VS = 5.0 V

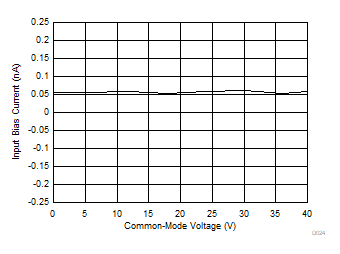

Figure 14. Input Bias Current vs Common-Mode Voltage

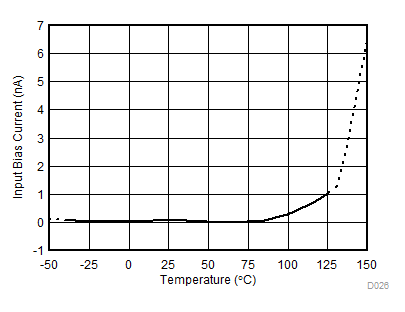

INA190 D026_SBOS863.gif
Figure 16. Input Bias Current vs Temperature
INA190 D002_SBOS863.gif
VENABLE = 0 V
Figure 18. Quiescent Current vs Temperature (Disabled)
INA190 D030_SBOS863.gif
A3 devices
Figure 20. Input-Referred Voltage Noise vs Frequency
INA190 D032_SBOS863.gif
VS = 5.0 V, A3 devices

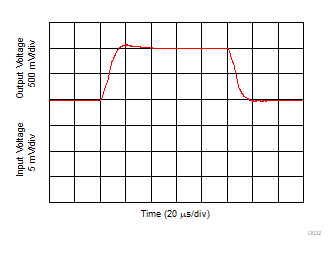

Figure 22. Step Response (10-mVPP Input Step)

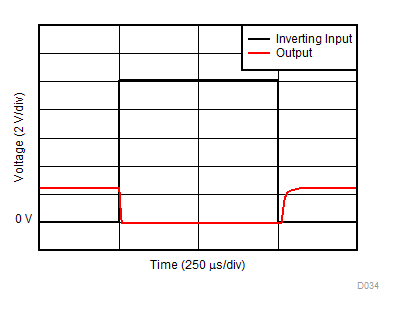

INA190 D034_SBOS863.gif
A3 devices
Figure 24. Inverting Differential Input Overload
INA190 D036_SBOS863.gif
VS = 5.0 V, A3 devices
Figure 26. Start-Up Response
INA190 D038_SBOS863.gif
VS = 5.0 V, A3 devices
Figure 28. Enable and Disable Response
INA190 D047_SBOS863.gif
VS = 5.0 V, VREF = 2.5 V, A2, A3, A4, A5 devices

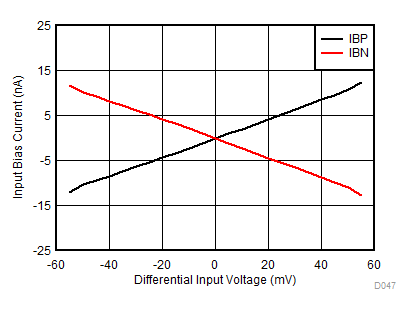

Figure 30. IB+ and IB– vs Differential Input Voltage
INA190 D048_SBOS863.gif
VS = 5.0 V, VENABLE = 0 V, VREF = 2.5 V
Figure 32. Output Leakage vs Output Voltage
(A4 and A5 Devices)
