5.9.2 Synchronized Frame Triggering

The IWR1443 device supports a hardware based mechanism to trigger radar frames. An external host can pulse the SYNC_IN signal to start radar frames. The typical time difference between the rising edge of the external pulse and the frame transmission on air (Tlag) is about 160 ns. There is also an additional programmable delay that the user can set to control the frame start time.

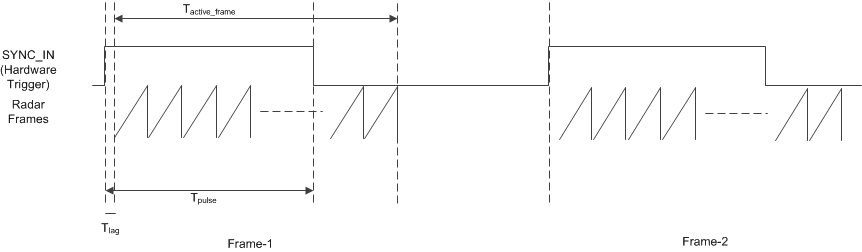

IWR1443 sync_in_hw_trigger.gifFigure 5-3 Sync In Hardware Trigger

Table 5-5 Frame Trigger Timing

PARAMETER DESCRIPTION MIN MAX UNIT
Tactive_frame Active frame duration User defined ns
Tpulse 25 < Tactive_frame
