7.6 Typical Characteristics

VIN = 24 V, VEN/UVLO = 2 V (unless otherwise stated).
LM25180 D020_snvsb06.gif
See Figure 23
Figure 1. Efficiency vs. Load
LM25180 LM5180_design1_SWnode24Vin_waveform_nvsb06.gif
See Figure 23 IOUT = 1 A
Figure 3. Primary-side Switching Waveform in BCM
LM25180 LM5180_design1_24Vstartup_waveform_nvsb06.gif
See Figure 23
Figure 5. Startup Characteristic
LM25180 D002_ActiveIQ_vs_temp_LV_nvsb06.gif
Figure 7. Active Quiescent Current vs. Temperature
LM25180 D004_RsetvsVIN_LV.gif
Figure 9. RSET Current vs. Input Voltage
LM25180 D006_TCvoltage_vs_temp.gif
Figure 11. TC Voltage vs. Temperature
LM25180 D008_EnUVLOHysteresiscurrent_vs_temp.gif
Figure 13. EN/UVLO Hysteresis Current vs. Temperature
LM25180 D010_ILIM_vs_temp.gif
Figure 15. Switch Peak Current Limits vs. Temperature
LM25180 D012_minswitchfreq_vs_temp.gif
Figure 17. Minimum Switching Frequency vs. Temperature
LM25180 D022_snvsb06.gif
See Figure 23
Figure 2. Output Voltage vs. Load
LM25180 LM5180_design1_Diode24Vin_waveform_nvsb06.gif
See Figure 23 IOUT = 1 A
Figure 4. Flyback Diode Switching Waveform in BCM
LM25180 D001_shutdownIQvsTemp_LV_nvsb29.gif
Figure 6. Shutdown Quiescent Current vs. Temperature
LM25180 D003_ActiveIQwBias_vs_temp_LV_nvsb06.gif
VSS/BIAS = 6 V
Figure 8. Active Quiescent Current with BIAS vs. Temperature

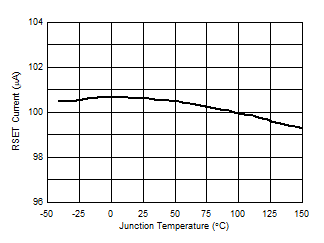

LM25180 D005_RsetvsTemp.gif
Figure 10. RSET Current vs. Temperature

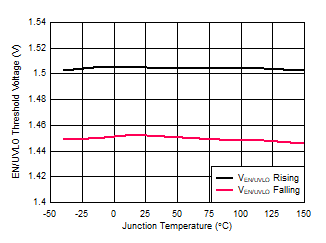

LM25180 D007_ENThresholdRiseFall_vs_temp.gif
Figure 12. EN/UVLO Threshold Voltages vs. Temperature
LM25180 D009_Rdson_vs_temp.gif
Figure 14. MOSFET RDS(on) vs. Temperature
LM25180 D011_minontime_vs_temp.gif
Figure 16. Minimum Switch On-Time vs. Temperature
LM25180 D013_maxswitchfreq_vs_temp.gif
Figure 18. Maximum Switching Frequency vs. Temperature
