8.2.4 Adjustable Current Limiter

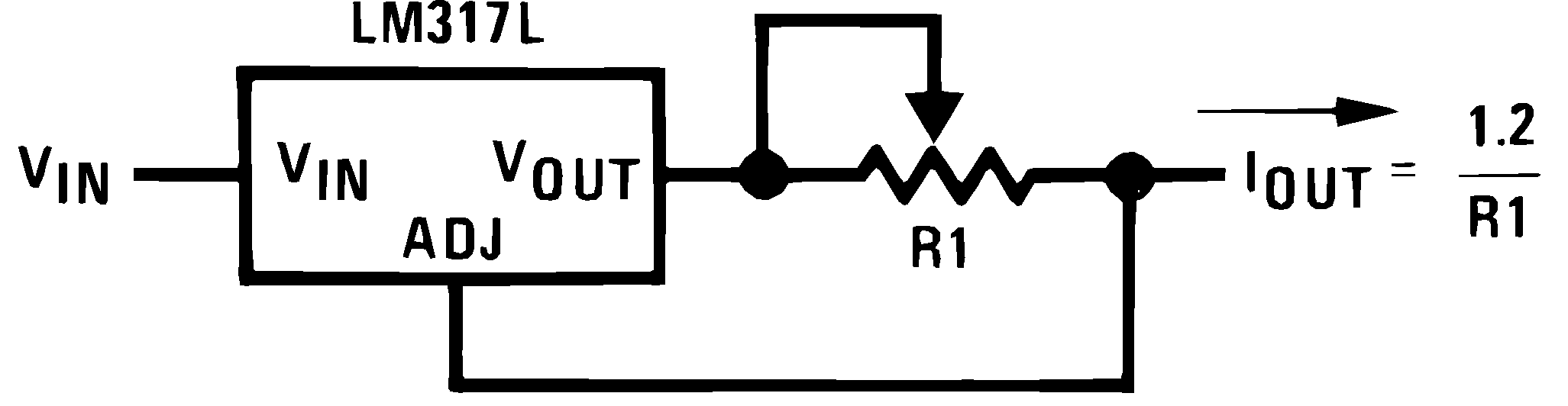

This application will limit the output current to the IOUT in the diagram. The current limit is determined by adjusting the resistance between the VOUT and VADJ pins. The 1.2-V reference voltage across R1 generates the maximum current.

LM317L-N 906413.png
12 ≤ R1 ≤ 240  
Figure 20. Adjustable Current Limiter
