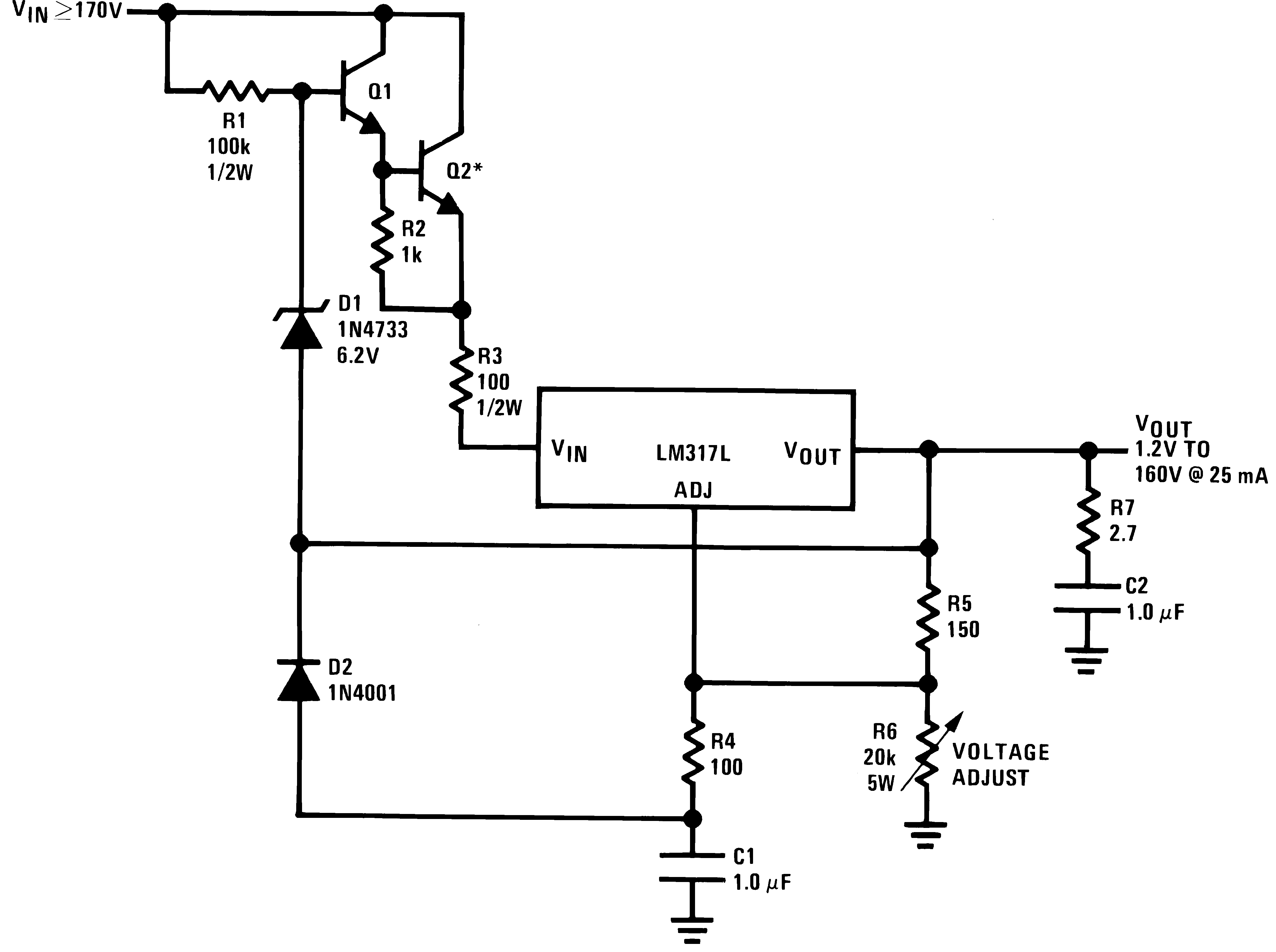

8.2.20 Basic High-Voltage Regulator

This application regulates the output voltage from 1.2 V to 160 V at 25 mA as shown in Figure 36. The output voltage is set by the resistor divider at the output. The Darlington pair transistor configuration provides a current gain from the input source to the LM317.

LM317L-N 906429.png
Q1, Q2: NSD134 or similar

C1, C2: 1 μF, 200-V mylar**

*Heat sink
Figure 36. Basic High-Voltage Regulator
