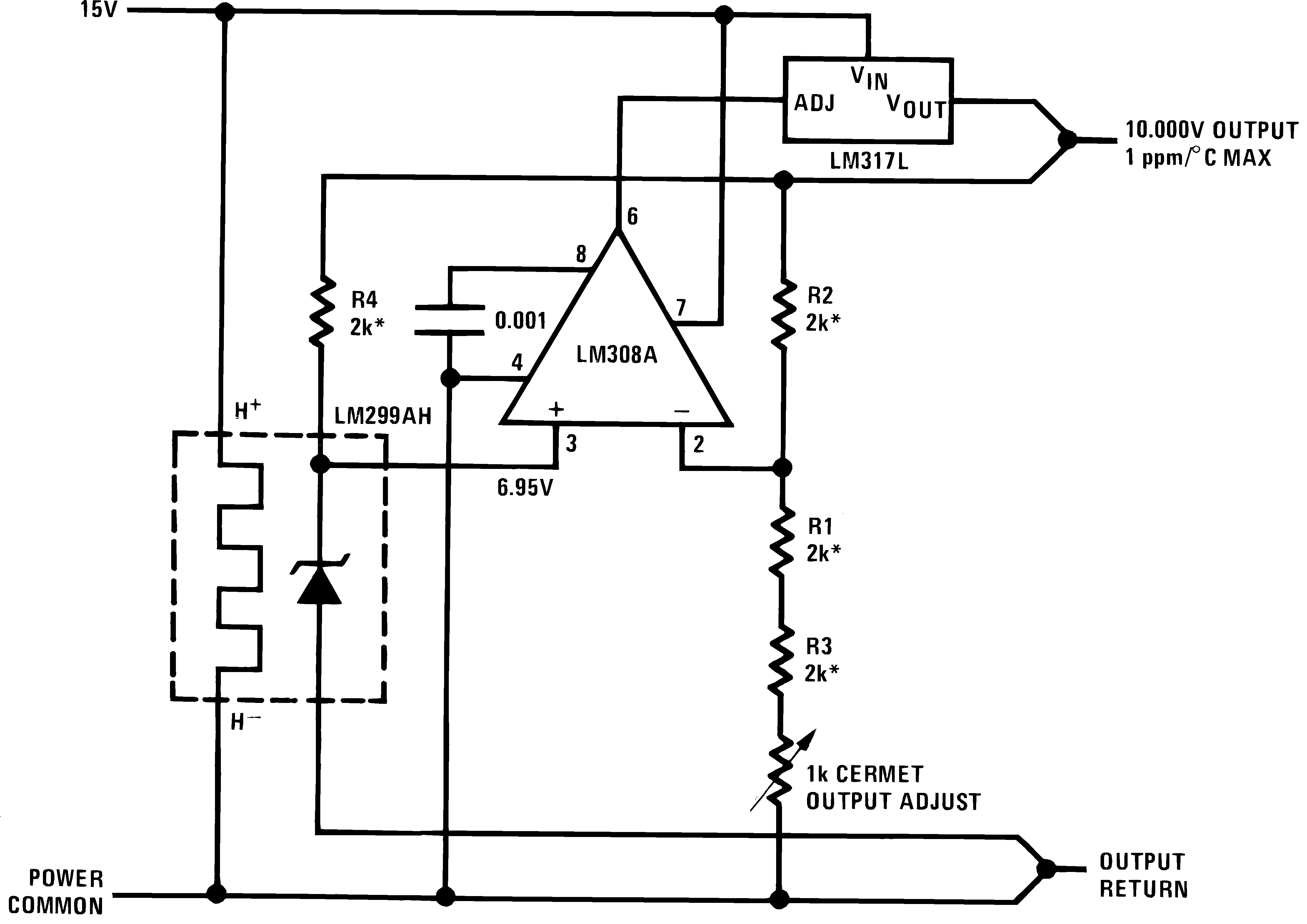

8.2.24 Precision Reference With Short-Circuit Proof Output

This application provides a precise output voltage with short-circuit protection. The precision results from using the LM308A operational amplifier connected between the adjust pin and output voltage pin as a comparator with the LM299AH precision reference.

LM317L-N 906433.png
*R1–R4 from thin-film network,

Beckman 694-3-R2K-D or similar
Figure 40. Precision Reference With Short-Circuit Proof Output
