8.2.25 Fully-Protected (Bulletproof) Lamp Driver

This application drives a lamp using a programmable gain instrumentation amplifier at the output.

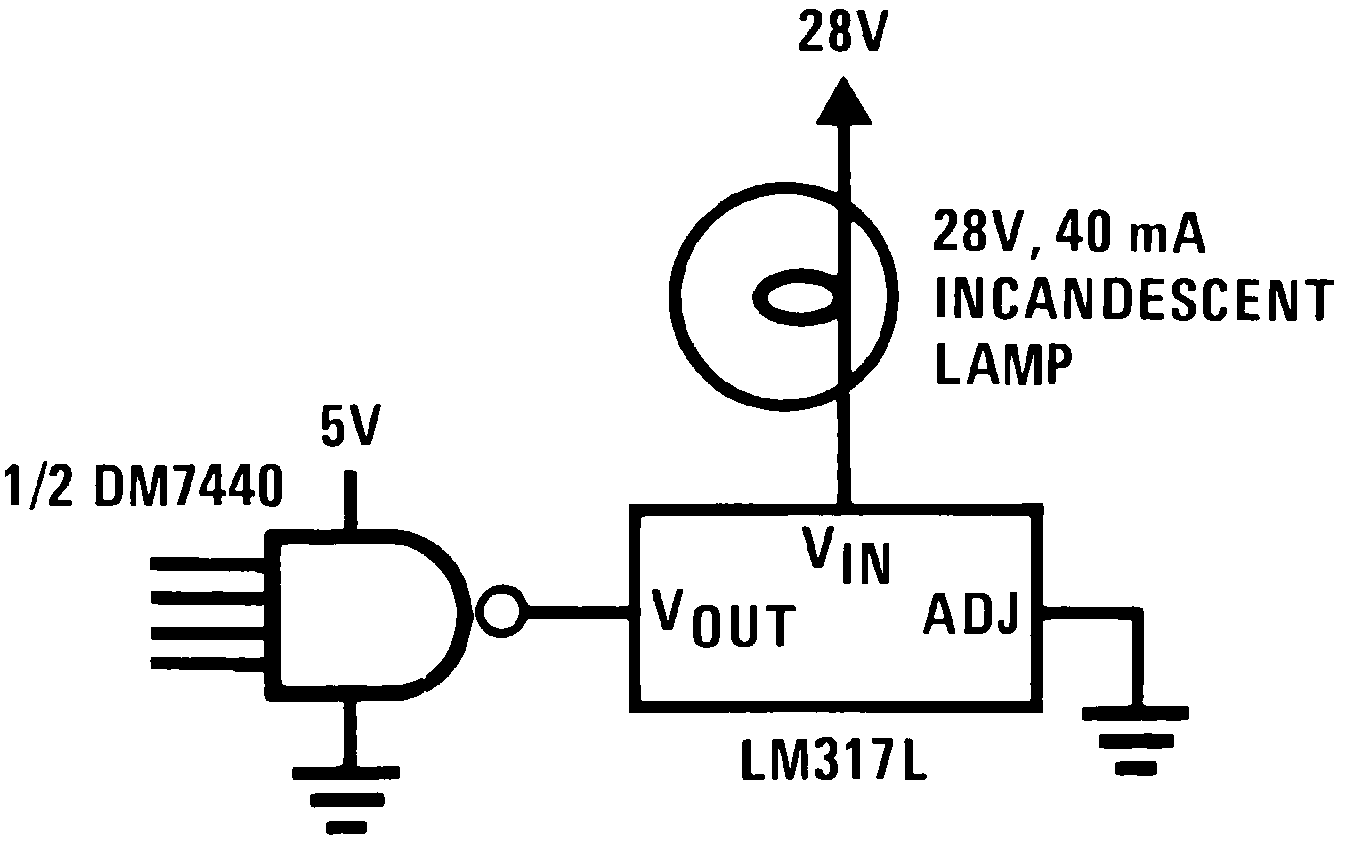

LM317L-N 906402.pngFigure 41. Fully-Protected (Bulletproof) Lamp Driver
