7.6 Typical Characteristics

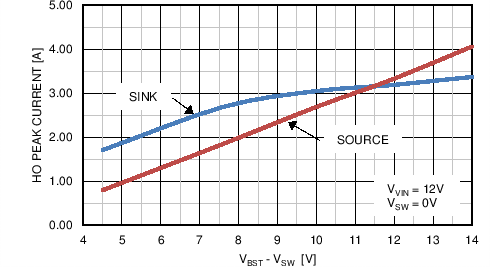

LM5122ZA TC HO peak current.png
Figure 1. HO Peak Current vs VBST - VSW
LM5122ZA TC Deadtime vs Vvcc.png
Figure 3. Dead Time vs VVCC
LM5122ZA TC Deadtime vs vsw.png
Figure 5. Dead Time vs VSW
LM5122ZA TC Vvcc vs Ivcc.png
Figure 7. VVCC vs IVCC
LM5122ZA TC ErrorAmp_GainPhase.png
Figure 9. Error Amplifier Gain and Phase
vs Frequency
LM5122ZA TC Vbst-sw vs Vsw.png
Figure 11. VBST-SW vs VSW
LM5122ZA TC Vcsth1 vs Vvin.png
Figure 13. VCS-TH1 vs VVIN
LM5122ZA TC Vbst-sw vs temp.png
Figure 15. VBST-SW vs Temperature
LM5122ZA TC LO peak current.png
Figure 2. LO Peak Current vs VVCC

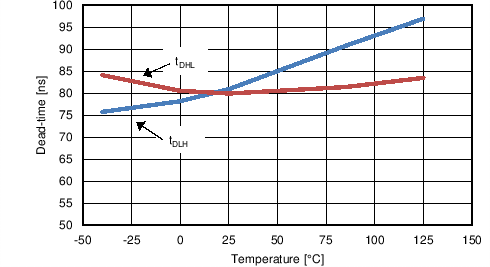

LM5122ZA TC Deadtime vs Temp.png
Figure 4. Dead Time vs Temperature
LM5122ZA TC Ishutdown vs temp.png
Figure 6. ISHUTDOWN vs Temperature

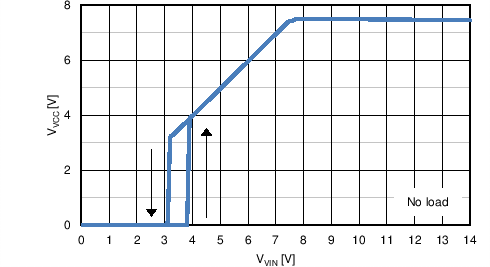

LM5122ZA TC VCC vs VVIN.png
Figure 8. VVCC vs VVIN

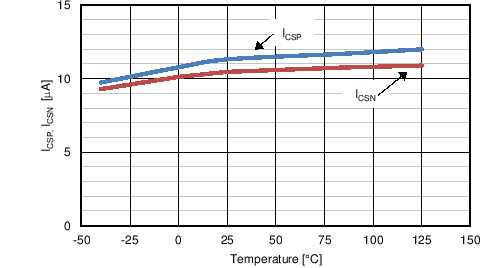

LM5122ZA TC ICSP ICSN temp.png
Figure 10. ICSP, ICSN vs Temperature

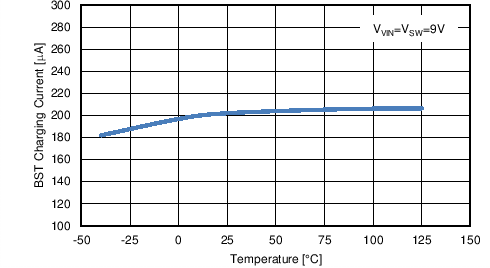

LM5122ZA TC Ibst vs Temp.png
Figure 12. IBST vs Temperature
LM5122ZA TC Vcsth vs temp.png
Figure 14. VCS-TH1 vs Temperature
