8.3.9 PLL2 Loop Filter

PLL2 has an integrated loop filter of C1i = 60 pF, R3 = 2400 Ω, C3 = 50 pF, R4 = 200 Ω and C4 = 10 pF as shown in Figure 14. Loop filter components C1, C2, and R2 can be solved using TI software. See デバイス・サポート for more information.

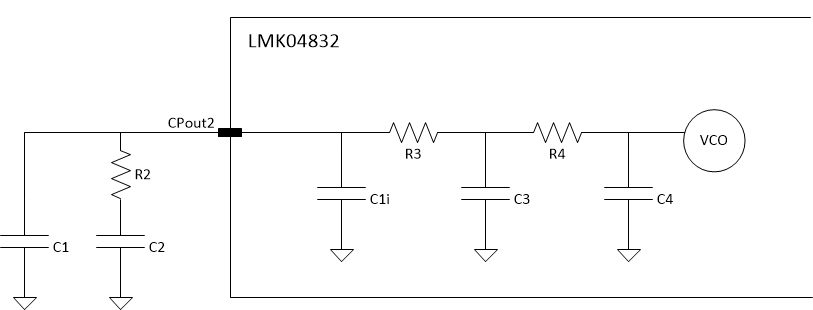

LMK04832 LPF2.pngFigure 14. PLL2 On-Chip Loop Filter
