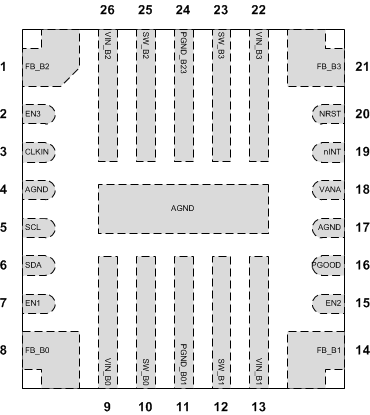

6 Pin Configuration and Functions

RNF Package
26-Pin VQFN-HR With Thermal Pad
Top View
LP87561-Q1 LP87562-Q1 LP87563-Q1 LP87564-Q1 LP87565-Q1 Ballmap_56.gif

Pin Functions

PIN TYPE(1) DESCRIPTION
NO. NAME
1 FB_B2 A Output voltage feedback (positive) for the BUCK2 converter.
2 EN3 D/I/O Programmable enable signal for the buck regulators (can be also configured to select between two buck output-voltage levels). This pin functions alternatively as GPIO3.
3 CLKIN D/I External clock input. Connect this pin to ground if the external clock is not used.
4, 17, Thermal Pad AGND G Ground
5 SCL D/I Serial interface clock input for I2C access. Connect this pin to a pullup resistor.
6 SDA D/I/O Serial interface data input and output for I2C access. Connect this pin to a pullup resistor.
7 EN1 D/I/O Programmable enable signal for the buck regulators (can be also configured to select between two buck output voltage levels). This pin functions alternatively as GPIO1.
8 FB_B0 A Output voltage feedback (positive) for the BUCK0 converter.
9 VIN_B0 P Input for the BUCK0 converter. The separate power pins, VIN_Bx, are not connected together internally. The VIN_Bx pins must be connected together in the application and be locally bypassed.
10 SW_B0 A BUCK0 switch node
11 PGND_B01 G Power ground for the BUCK0 and BUCK1 converters
12 SW_B1 A BUCK1 switch node
13 VIN_B1 P Input for the BUCK1 converter. The separate power pins, VIN_Bx, are not connected together internally. The VIN_Bx pins must be connected together in the application and be locally bypassed.
14 FB_B1 A Output voltage feedback (positive) for the BUCK1 converter. This pin functions alternatively as the output ground feedback (negative) for the BUCK0 converter.
15 EN2 D/I/O Programmable enable signal for the buck regulators (can be also configured to select between two buck output voltage levels). This pin functions alternatively as GPIO2.
16 PGOOD D/O Power-good indication signal
18 VANA P Supply voltage for the analog and digital blocks. This pin must be connected to the same node as VIN_Bx.
19 nINT D/O Open-drain interrupt output. This pin is active low.
20 NRST D/I Reset signal for the device
21 FB_B3 A Output voltage feedback (positive) for the BUCK3 converter. This pin functions alternatively as the output ground feedback (negative) for the BUCK2 converter.
22 VIN_B3 P Input for the BUCK3 converter. The separate power pins, VIN_Bx, are not connected together internally. The VIN_Bx pins must be connected together in the application and be locally bypassed.
23 SW_B3 A BUCK3 switch node
24 PGND_B23 G Power ground for the BUCK2 and BUCK3 converters
25 SW_B2 A BUCK2 switch node
26 VIN_B2 P Input for the BUCK2 converter. The separate power pins, VIN_Bx, are not connected together internally. The VIN_Bx pins must be connected together in the application and be locally bypassed.
(1) A: Analog Pin, D: Digital Pin, G: Ground Pin, P: Power Pin, I: Input Pin, O: Output Pin
