8.3.5 Enable and Disable Sequences

The LP8756x-Q1 device supports start-up and shutdown sequencing with programmable delays for different regulator outputs using one EN1, EN2, EN3 control signal. The regulator is selected for delayed control with:

  • EN_BUCKx = 1 (in BUCKx_CTRL1 register)
  • EN_PIN_CTRLx = 1 (in BUCKx_CTRL1 register)
  • EN_ROOF_FLOORx = 0 (in BUCKx_CTRL1 register)
  • BUCKx_VSET[7:0] = Required voltage when ENx is high (in BUCKx_VOUT register)
  • The ENABLE pin for control is selected with BUCKx_EN_PIN_SELECT[1:0] (in BUCKx_CTRL1 register)
  • The delay from rising edge of ENx signal to the regulator enable is set by BUCKx_STARTUP_DELAY[3:0] bits (in BUCKx_DELAY register) and
  • The delay from falling edge of ENx signal to the regulator disable is set by BUCKx_SHUTDOWN_DELAY[3:0] bits (in BUCKx_DELAY register)

There are four time steps available for start-up and shutdown sequences. The delay times are selected with DOUBLE_DELAY bit in CONFIG register and HALF_DELAY bit in PGOOD_CTRL2 register as shown in Table 4.

Table 4. Start-up and Shutdown Delays

X_STARTUP_DELAY or
X_SHUTDOWN_DELAY		 DOUBLE_DELAY = 0h
HALF_DELAY = 1h		 DOUBLE_DELAY = 1h
HALF_DELAY = 1h		 DOUBLE_DELAY = 0h
HALF_DELAY = 0h		 DOUBLE_DELAY = 1h
HALF_DELAY = 0h
0h 0 ms 0 ms 0 ms 0 ms
1h 0.32 ms 0.64 ms 1 ms 2 ms
2h 0.64 ms 1.28 ms 2 ms 4 ms
3h 0.96 ms 1.92 ms 3 ms 6 ms
4h 1.28 ms 2.56 ms 4 ms 8 ms
5h 1.6 ms 3.2 ms 5 ms 10 ms
6h 1.92 ms 3.84 ms 6 ms 12 ms
7h 2.24 ms 4.48 ms 7 ms 14 ms
8h 2.56 ms 5.12 ms 8 ms 16 ms
9h 2.88 ms 5.76 ms 9 ms 18 ms
Ah 3.2 ms 6.4 ms 10 ms 20 ms
Bh 3.52 ms 7.04 ms 11 ms 22 ms
Ch 3.84 ms 7.68 ms 12 ms 24 ms
dh 4.16 ms 8.32 ms 13 ms 26 ms
Eh 4.48 ms 8.96 ms 14 ms 28 ms
Fh 4.8 ms 9.6 ms 15 ms 30 ms

An example of start-up and shutdown sequences is shown in Figure 16 and Figure 17. The start-up and shutdown delays for the BUCK0, BUCK1 regulators are 1 ms and 4 ms and for the BUCK2, BUCK3 regulators 3 ms and 1 ms. The delay settings are used only for enable/disable control with EN1, EN2, EN3 signals, not for Roof/Floor control.

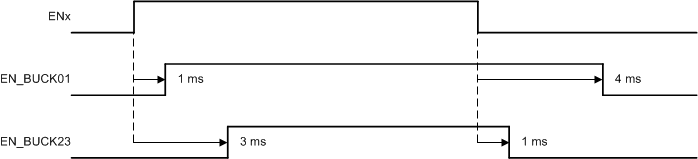

LP87561-Q1 LP87562-Q1 LP87563-Q1 LP87564-Q1 LP87565-Q1 Sequencing.gifFigure 16. Typical Start-Up and Shutdown Sequencing

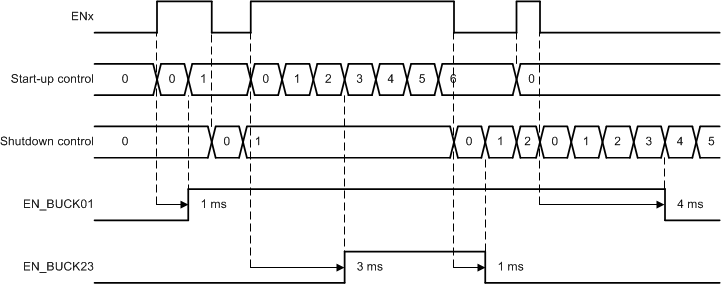

LP87561-Q1 LP87562-Q1 LP87563-Q1 LP87564-Q1 LP87565-Q1 Sequencing_2.gifFigure 17. Start-Up and Shutdown Sequencing With Short ENx Low and High Periods
