6.12.27 Port P9 (P9.0 to P9.7) Input/Output With Schmitt Trigger (PEU Package Only)

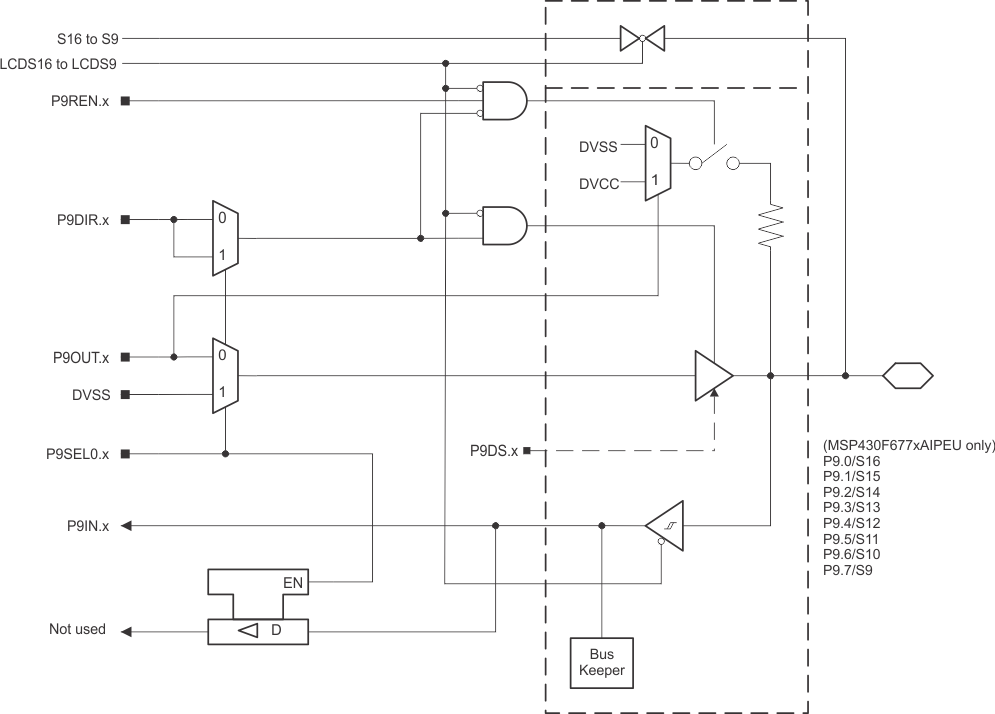

Figure 6-32 shows the port diagram. Table 6-90 summarizes the selection of the pin functions.

MSP430F67791A MSP430F67781A MSP430F67771A MSP430F67761A MSP430F67751A MSP430F67691A MSP430F67681A MSP430F67671A MSP430F67661A MSP430F67651A MSP430F67491A MSP430F67481A MSP430F67471A MSP430F67461A MSP430F67451A P9.gifFigure 6-32 Port P9 (P9.0 to P9.7) Diagram (PEU Package Only)

Table 6-90 Port P9 (P9.0 to P9.7) Pin Functions (PEU Package Only)

PIN NAME (P9.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P9DIR.x P9SEL0.x LCDS16 to LCDS9
P9.0/S16 0 P9.0 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S16 X X 1
P9.1/S15 1 P9.1 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S15 X X 1
P9.2/S14 2 P9.2 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S14 X X 1
P9.3/S13 3 P9.3 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S13 X X 1
P9.4/S12 4 P9.4 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S12 X X 1
P9.5/S11 5 P9.5 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S11 X X 1
P9.6/S10 6 P9.6 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S10 X X 1
P9.7/S9 7 P9.7 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S9 X X 1
