6.14.24 Port P8 (P8.0 to P8.7) Input/Output With Schmitt Trigger (MSP430F677xIPEU Only)

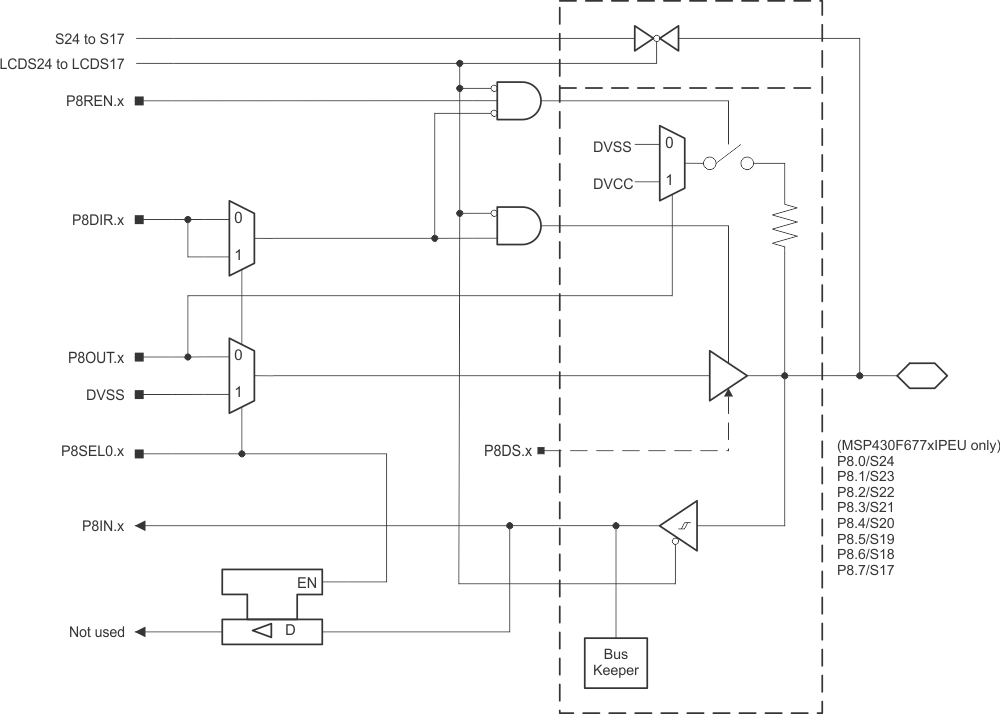

Figure 6-29 shows the port diagram. Table 6-87 summarizes the selection of the pin functions.

MSP430F67791 MSP430F67781 MSP430F67771 MSP430F67761 MSP430F67751 MSP430F67691 MSP430F67681 MSP430F67671 MSP430F67661 MSP430F67651 MSP430F67491 MSP430F67481 MSP430F67471 MSP430F67461 MSP430F67451 P8.gifFigure 6-29 Port P8 (P8.0 to P8.7) Diagram (MSP430F677xIPEU Only)

Table 6-87 Port P8 (P8.0 to P8.7) Pin Functions (MSP430F677xIPEU Only)

PIN NAME (P8.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P8DIR.x P8SEL0.x LCD24 to LCD17
P8.0/S24 0 P8.0 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S24 X X 1
P8.1/S23 1 P8.1 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S23 X X 1
P8.2/S22 2 P8.2 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S22 X X 1
P8.3/S21 3 P8.3 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S21 X X 1
P8.4/S20 4 P8.4 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S20 X X 1
P8.5/S19 5 P8.5 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S19 X X 1
P8.6/S18 6 P8.6 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S18 X X 1
P8.7/S17 7 P8.7 (I/O) I:0; O:1 0 0
N/A 0 1 0
DVSS 1 1 0
S17 X X 1
