9.13.11 Port P6 (P6.5) Input/Output With Schmitt Trigger

Figure 9-13 shows the port diagram. Table 9-26 summarizes the selection of the port function.

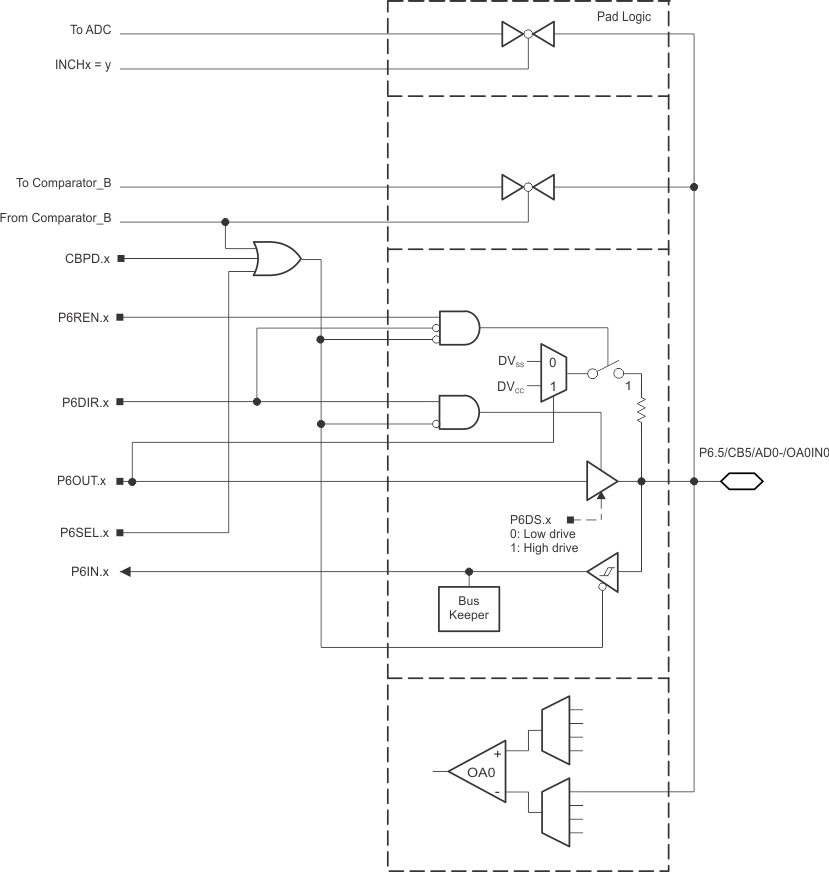

GUID-39E4EBEC-0F65-4AFE-BAE7-A37177F23ACA-low.gif Figure 9-13 Port P6 (P6.5) Diagram
Table 9-26 Port P6 (P6.5) Pin Functions
PIN NAME (P6.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P6DIR.x P6SEL.x(3) CBPD.x(3)
P6.5/CB5/AD0-/OA0IN0 5 P6.5 (I/O) I: 0; O: 1 0 0
CB5 X X 1
AD0- (2) X 1 X
OA0IN0(3) X 1 X
(1) X = Don't care
(2) The ADC channel Ax is connected internally to AVSS if not selected by the respective INCHx bits.
(3) Setting the P6SEL.x bit or CBPD.x bit disables the output driver and the input Schmitt trigger to prevent parasitic cross currents when applying analog signals.
