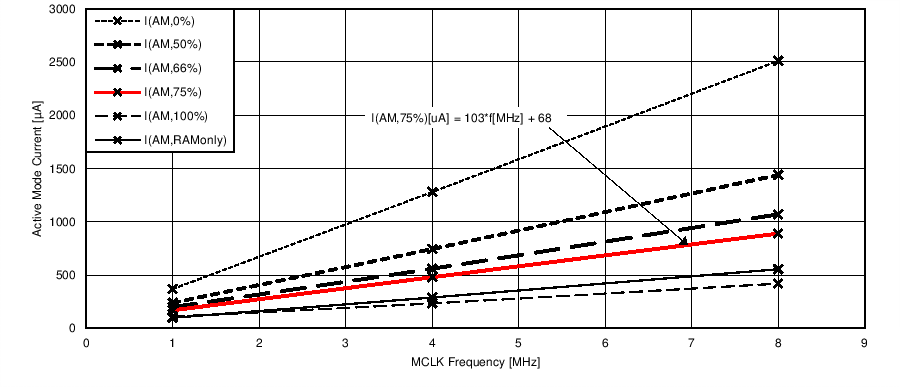

5.5 Typical Characteristics - Active Mode Supply Currents

MSP430FR5972 MSP430FR59721 MSP430FR5970 MSP430FR5922 MSP430FR59221 MSP430FR5872 MSP430FR58721 MSP430FR5870 C001_IAM_SLASE23.png

NOTE:

I(AM, cache hit ratio): Program resides in FRAM. Data resides in SRAM. Average current dissipation varies with cache hit-to-miss ratio as specified. Cache hit ratio represents number cache accesses divided by the total number of FRAM accesses. For example, a 75% ratio implies three of every four accesses is from cache, and the remaining are FRAM accesses.

NOTE:

I(AM, RAMonly): Program and data reside entirely in RAM. All execution is from RAM. FRAM is off.
Figure 5-1 Typical Active Mode Supply Currents, No Wait States
