6.6 Typical Characteristics

at TA = 25°C, VS = ±2.5 V, VCM = VS / 2, RL = 10 kΩ connected to VS / 2 (unless otherwise noted)
OPA1671 VOSHighSupply-9904devices.gif
N = 9904 VS = ±2.75 V
Figure 1. Offset Voltage Production Distribution
OPA1671 vosdrifthisto.gif
N = 65
Figure 3. Offset Voltage Drift Distribution
OPA1671 vosvsvcm,60channels,3lots,25conly.gif
N = 65
Figure 5. Offset Voltage vs Common Mode Voltage

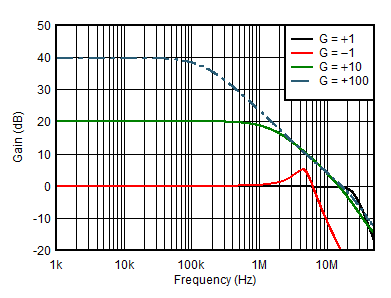

OPA1671 D006_ClosedLoopGain.gif
Figure 7. Closed-Loop Gain and Phase vs Frequency

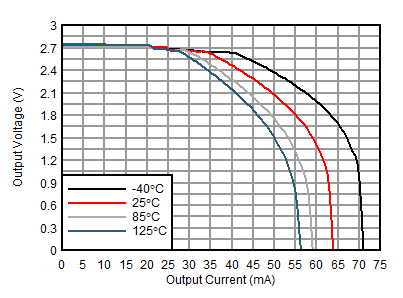

OPA1671 claw_source_5p5temp.gif
VS = ±2.75 V
Figure 9. Output Voltage Swing vs Sourcing Output Current (Maximum Supply)
OPA1671 D007A_CMRR.gif
Figure 11. CMRR vs Frequency
OPA1671 OPA1671_Voltage_Noise.gif
Figure 13. Input Voltage Noise Spectral Density
vs Frequency
OPA1671 D010-opa1671-thdn-vs-vrms-1khz-g1.gif
Gain = 1 BW = 80 kHz
fTEST = 1 kHz
Figure 15. THD+N vs Output Amplitude
OPA1671 iqvstemp.gif
5 typical units
Figure 17. Quiescent Current vs Temperature
OPA1671 aolvstemp10kavg3sigma.gif
Figure 19. Open-Loop Gain vs Temperature

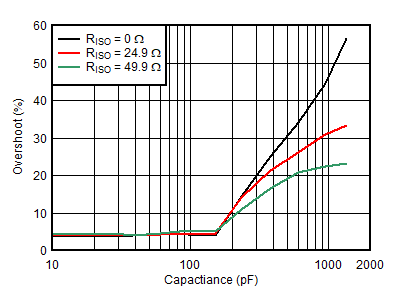

OPA1671 D031_Inverting_Overshoot_Capload.gif
10-mV Step
Figure 21. Small-Signal Overshoot vs Capacitive Load

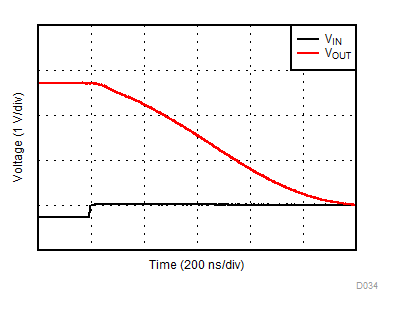

OPA1671 D034B_PosOverloadRecovery.gif
Figure 23. Positive Overload Recovery

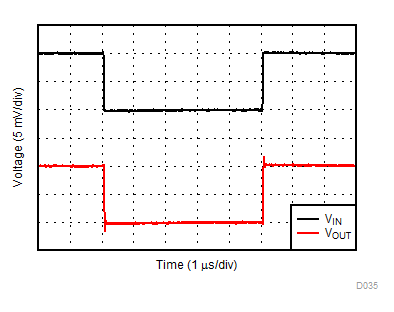

OPA1671 D035A_SmallStep_G1.gif
10-mV step G = +1
Figure 25. Small-Signal Step Response
OPA1671 D037_SettlingTime_2VStep.gif
2-V Step
Figure 27. Settling Time
OPA1671 D012_FullPowerBandwidth.gif
Figure 29. Maximum Output Voltage vs Frequency
OPA1671 VOSLowSupply-9904devices.gif
N = 9904 VS = ±0.85 V
Figure 2. Offset Voltage Production Distribution
OPA1671 vosvstemp5typicalunits2p75vsupply.gif
N = 5 5 typical units
Figure 4. Offset Voltage vs Temperature
OPA1671 OPA1671_Aol_Phase.gif
Figure 6. Open-Loop Gain and Phase vs Frequency
OPA1671 ibvstemp_pnos_2.gif
Figure 8. Input Bias Current vs Temperature
OPA1671 claw_sink_5p5temp.gif
VS = ±2.75 V
Figure 10. Output Voltage Swing vs Sinking Output Current (Maximum Supply)
OPA1671 D027_PPNoise_p1_10Hz.gif
Figure 12. 0.1-Hz to 10-Hz Noise
OPA1671 OPA1671_THDN_Vs_Freq_1Vrms_10KOhms_2Configs.gif
BW = 80 kHz
VO = 1 VRMS
Figure 14. THD+N Ratio vs Frequency
OPA1671 D010-opa1671-thdn-vs-vrms-1khz-g-1.gif
Gain = –1 BW = 80 kHz
fTEST = 1 kHz
Figure 16. THD+N vs Output Amplitude
OPA1671 iqvssupply_5typunits.gif
5 typical units
Figure 18. Quiescent Current vs Supply

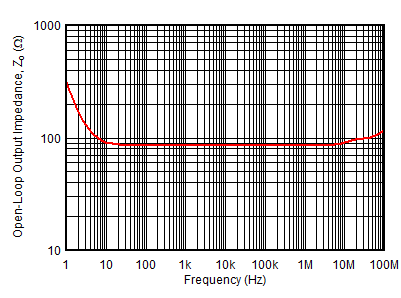

OPA1671 OpenLoopOutputImpedance.gif
Figure 20. Open-Loop Output Impedance vs Frequency
OPA1671 D033_AntiPhaseReversal.gif
Figure 22. No Phase Reversal

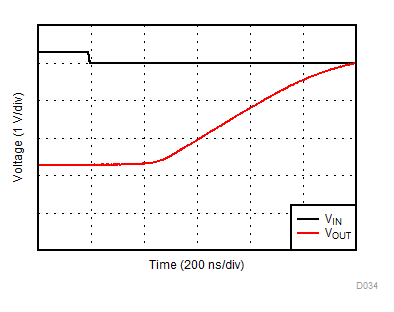

OPA1671 D034A_NegOverloadRecovery.gif
Figure 24. Negative Overload Recovery

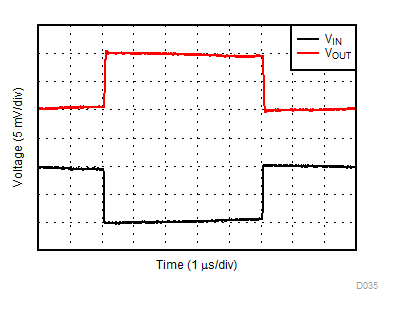

OPA1671 D035B_SmallStep_G-1.gif
10-mV step G = –1
Figure 26. Small-Signal Step Response

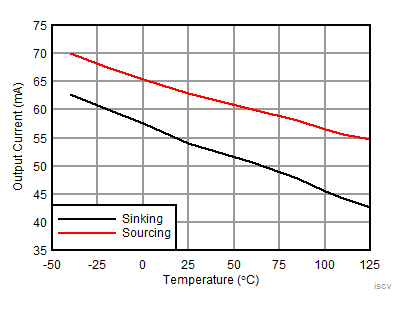

OPA1671 iscvstemperaturesinkingandsourcing.gif
Figure 28. Short-Circuit Current vs Temperature
