Typical Characteristics

at TA = 25°C, V+ = 2.75V, V– = –2.75V, RL = 10kΩ connected to VS / 2, VCM = VS / 2, and VOUT = VS / 2 (unless otherwise noted)

VS = 5.5V VCM = VS / 2 TA = 25°C
No. of devices = 36 Mean = –32µV Sigma = 190µV

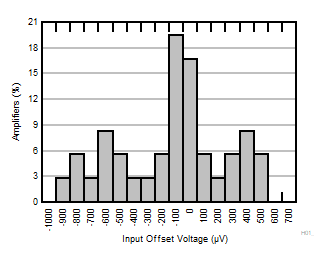

Figure 6-1 Input Offset Voltage Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 25°C
No. of devices = 90 Mean = 1pA Sigma = 2pA

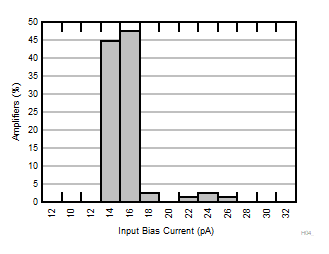

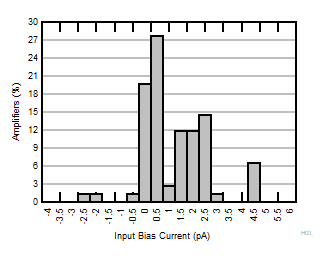

Figure 6-3 Input Bias Current Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 25°C
No. of devices = 45 Mean = –0.1pA Sigma = 1.7pA

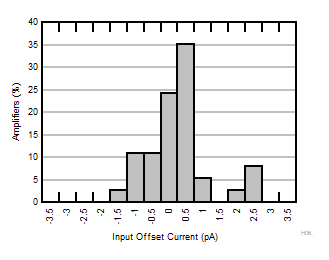

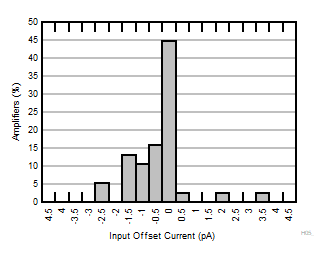

Figure 6-5 Input Offset Current Distribution Histogram
VCM = (V–) No. of devices = 45

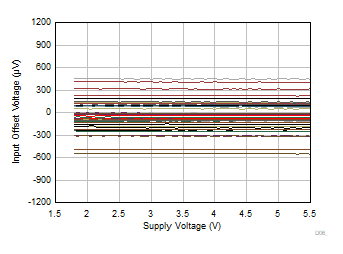

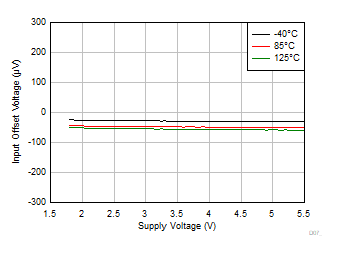

Figure 6-7 Input Offset Voltage vs Supply Voltage
VCM = V– No. of devices = 45

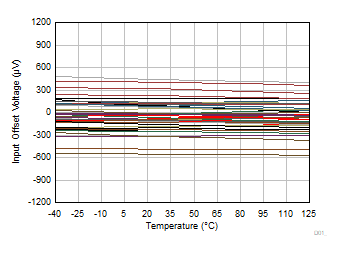

Figure 6-9 Input Offset Voltage vs Temperature
V+ = 2.75V, V– = –2.75V TA = –40°C, 85°C and 125°C
(V–) – 0.25V < VCM < (V+) + 0.15V

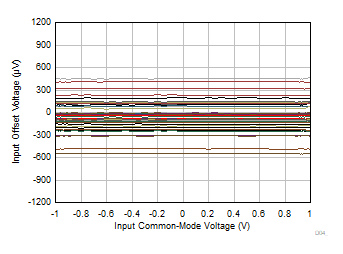

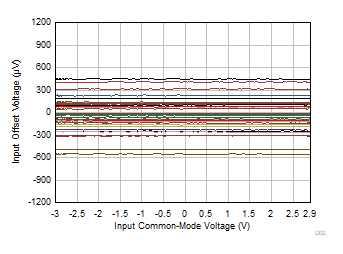

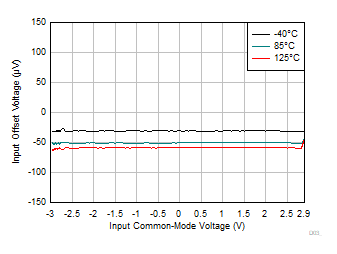

Figure 6-11 Input Offset Voltage vs Common-Mode
V+ = 0.9V, V– = –0.9V TA = –40°C, 85°C and 125°C
(V–) – 0.1V < VCM < (V+) + 0.1V

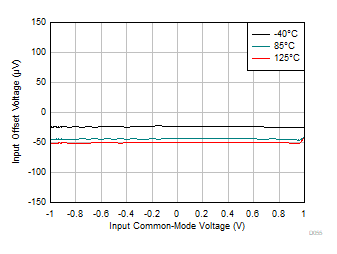

Figure 6-13 Input Offset Voltage vs Common-Mode
VS = 5.5V, VCM = VS/2

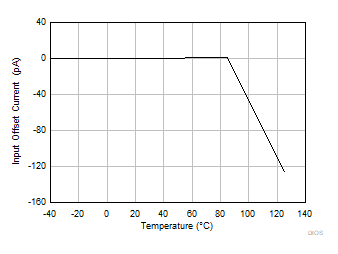

Figure 6-15 IOS vs Temperature
V+ = 2.5V, V– = –2.5V, VCM = VS/2

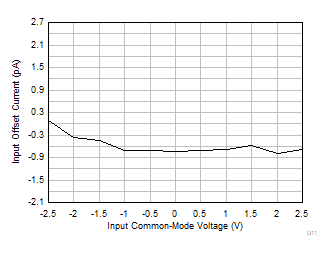

Figure 6-17 IOS vs Common-Mode Voltage
CL = 10pF

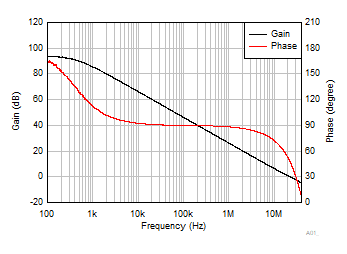

Figure 6-19 Open-Loop Gain and Phase vs Frequency
CL = 10pF

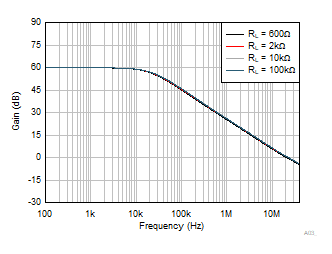

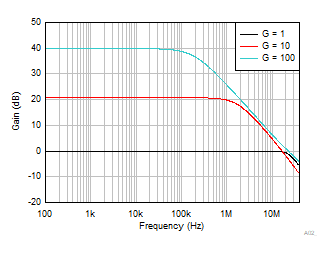

Figure 6-21 Closed-Loop Gain vs Frequency
V+ = 2.75V, V– = –2.75V

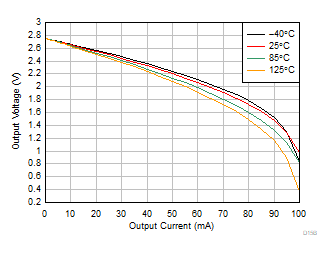

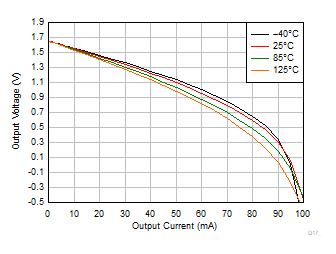

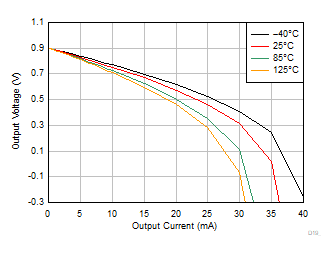

Figure 6-23 Output Voltage Swing vs Output Current (Sourcing)
V+ = 1.65V, V– = –1.65V
Figure 6-25 Output Voltage Swing vs Output Current (Sourcing)
V+ = 0.9V, V– = –0.9V
Figure 6-27 Output Voltage Swing vs Output Current (Sourcing)
Figure 6-29 PSRR+ vs Frequency
VCM = (V–) VS = 1.8V to 5.5V

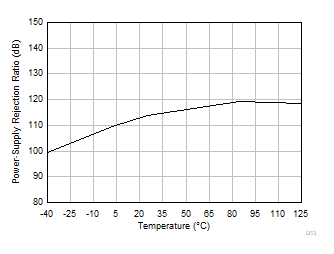

Figure 6-31 DC PSRR vs Temperature
VS = 5V (V–) – 0.2V – < VCM < (V+) + 0.15V

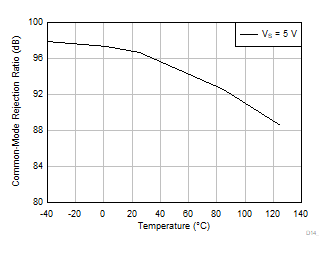

Figure 6-33 DC CMRR vs Temperature

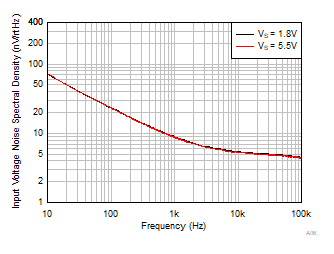

Figure 6-35 Input Voltage Noise Spectral Density
VS = 5V VCM = 2.5V G = –1
BW = 80kHz VOUT = 2VP-P

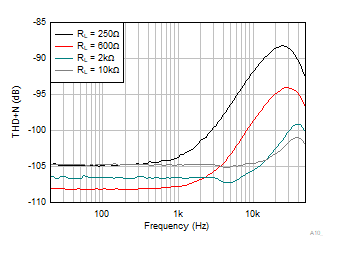

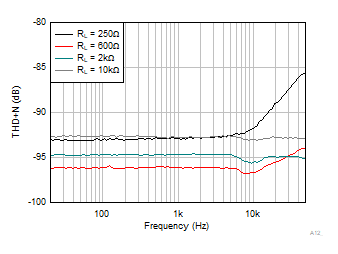

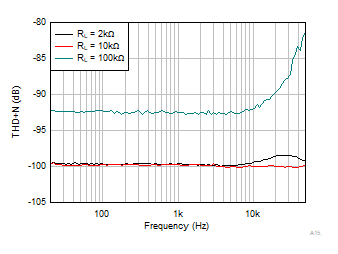

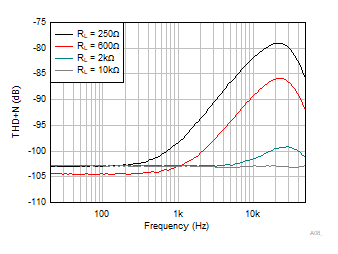

Figure 6-37 THD + N vs Frequency
VS = 5V VCM = 2.5V G = –10
BW = 80kHz VOUT = 2VP-P

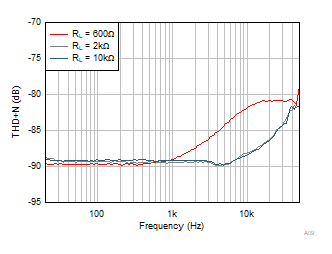

Figure 6-39 THD + N vs Frequency
VS = 5V VCM = 2.5V G = –1
BW = 80kHz VOUT = 4VP-P

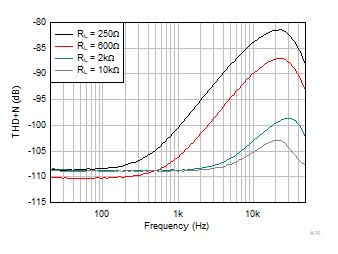

Figure 6-41 THD + N vs Frequency
VS = 5V VCM = 2.5V G = –10
BW = 80kHz VOUT = 4VP-P

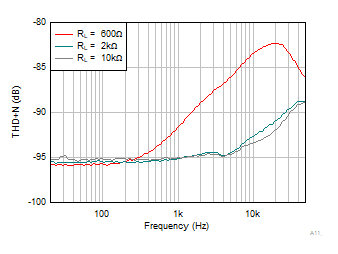

Figure 6-43 THD + N vs Frequency
VS = 5V VCM = 2.5V G = –1
BW = 80kHz VOUT = 1.4VP-P

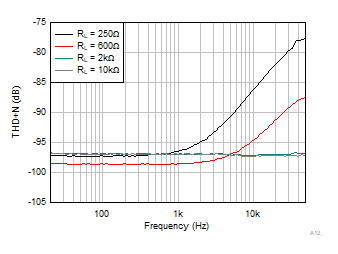

Figure 6-45 THD + N vs Frequency
VS = 3.3V VCM = 1.65V G = –1
BW = 80kHz VOUT = 1VP-P
Figure 6-47 THD + N vs Frequency
VS = 3.3V VCM = 1.65V f = 1kHz
BW = 80kHz

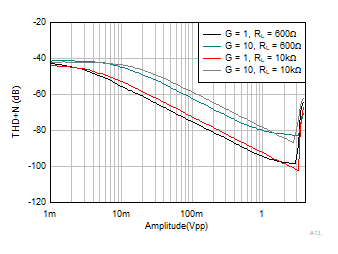

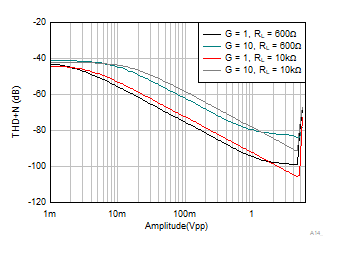

Figure 6-49 THD + N vs Amplitude
V+ = 2.75V, V– = –2.75V

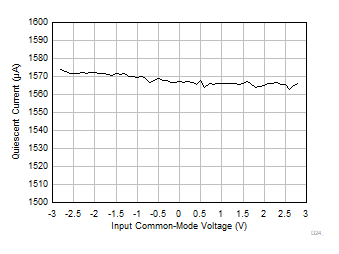

Figure 6-51 Quiescent Current vs Common-Mode Voltage
G = 1 VIN = 100mVpp
Figure 6-53 Small Signal Overshoot vs Capacitive Load

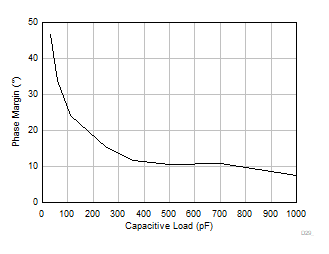

Figure 6-55 Phase Margin vs Capacitive Load
G = –10 VIN = 600mVPP

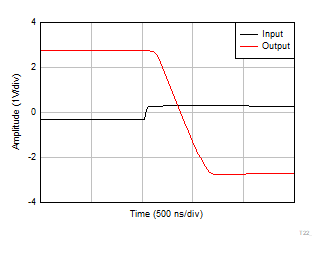

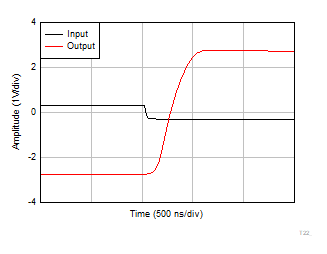

Figure 6-57 Overload Recovery
G = 1 VIN = 10mVPP CL = 10pF

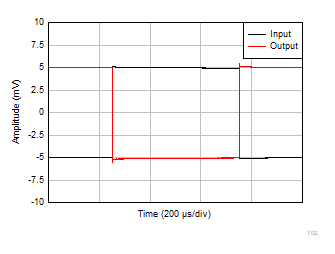

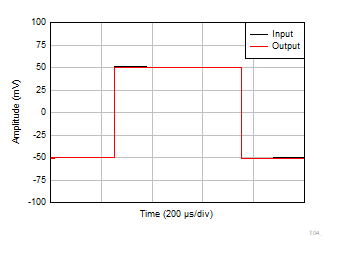

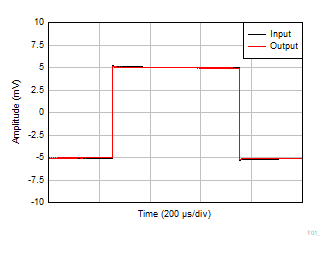

Figure 6-59 Small-Signal Step Response
G = –1 VIN = 10mVPP CL = 10pF
Figure 6-61 Small-Signal Step Response
G = 1 VIN = 4VPP CL = 10pF

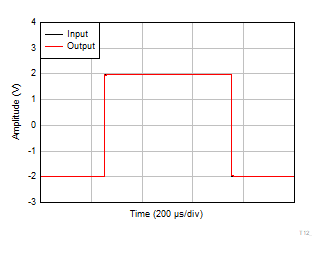

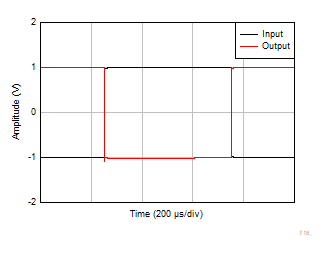

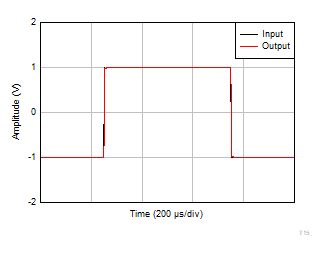

Figure 6-63 Large-Signal Step Response
G = –1 VIN = 4VPP CL = 10pF
Figure 6-65 Large-Signal Step Response
Figure 6-67 Maximum Output Voltage vs Frequency
VS = 1.8V

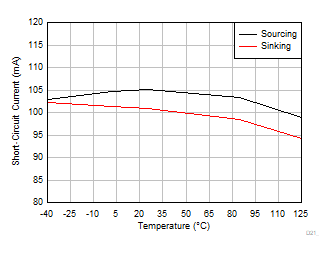

Figure 6-69 Short-Circuit Current vs Temperature
GUID-20240213-SS0I-MQCD-FHCS-MMMPZ6WQB41T-low.gifFigure 6-71 Channel Separation
VS = 5.5V VCM = VS / 2 TA = –40°C to +125°C
No. of devices = 36
Mean = 0.28µV/°C Sigma = 0.22µV/°C

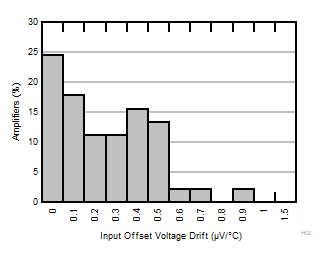

Figure 6-2 Input Offset Voltage Drift Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 85°C
No. of devices = 90 Mean = 13pA Sigma = 2pA
Figure 6-4 Input Bias Current Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 85°C
No. of devices = 45 Mean = 1.1pA Sigma = 2.1pA
Figure 6-6 Input Offset Current Distribution Histogram
VCM = (V–) TA = –40°C, 85°C and 125°C
Figure 6-8 Input Offset Voltage vs Supply Voltage
V+ = 2.75V, V– = –2.75V No. of devices = 45
(V–) – 0.25V < VCM < (V+) + 0.15V
Figure 6-10 Input Offset Voltage vs Common-Mode
V+ = 0.9V, V– = –0.9V No. of devices = 45
(V–) – 0.1V < VCM < (V+) + 0.1V
Figure 6-12 Input Offset Voltage vs Common-Mode
VS = 5.5V, VCM = VS/2

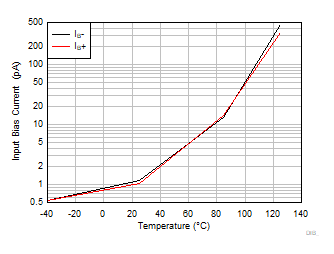

Figure 6-14 IB vs Temperature
V+ = 2.5V, V– = –2.5V, VCM = VS/2

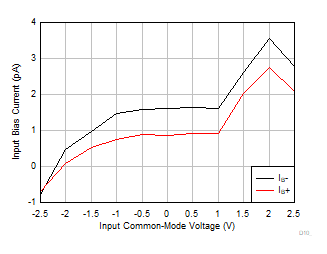

Figure 6-16 IB vs Common-Mode Voltage

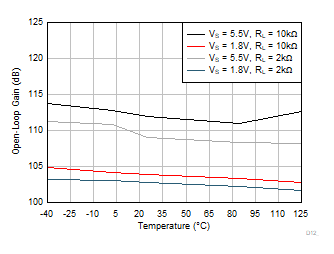

Figure 6-18 Open-Loop Gain vs Temperature
GUID-20240213-SS0I-RM86-DMZ3-HPVJCG6MBF6C-low.gifFigure 6-20 Open-Loop Output Impedance vs Frequency
G = 1000 CL = 10pF
Figure 6-22 Closed-Loop Gain vs Frequency
V+ = 2.75V, V– = –2.75V

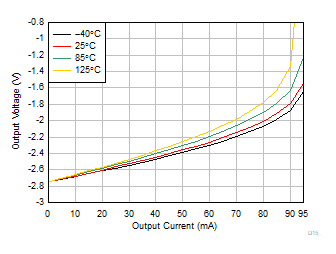

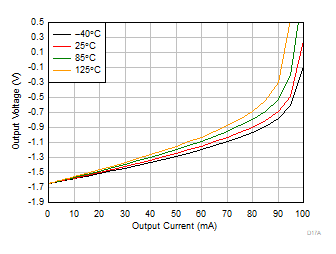

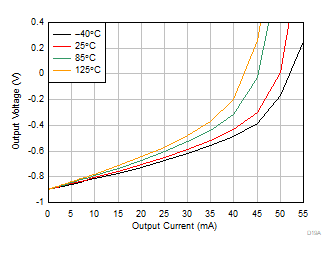

Figure 6-24 Output Voltage Swing vs Output Current (Sinking)
V+ = 1.65V, V– = –1.65V
Figure 6-26 Output Voltage Swing vs Output Current (Sinking)
V+ = 0.9V, V– = –0.9V
Figure 6-28 Output Voltage Swing vs Output Current (Sinking)

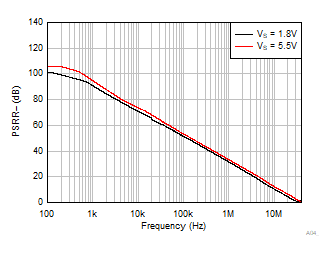

Figure 6-30 PSRR– vs Frequency
GUID-20240213-SS0I-SZWM-6ZH2-J6VLLP8954GG-low.gifFigure 6-32 CMRR vs Frequency

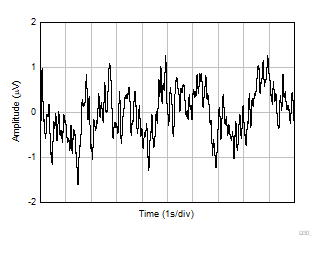

Figure 6-34 0.1Hz to 10Hz Voltage Noise in Time Domain
VS = 5V VCM = 2.5V G = 1
BW = 80kHz VOUT = 2VP-P

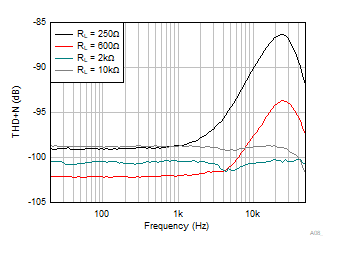

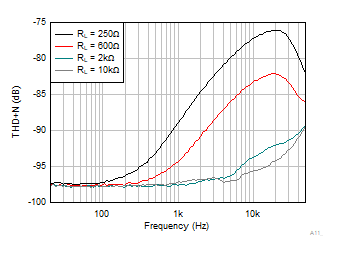

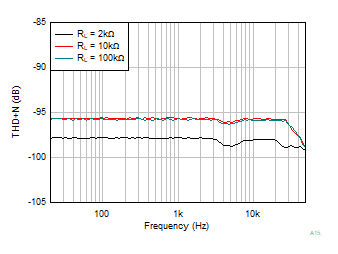

Figure 6-36 THD + N vs Frequency
VS = 5V VCM = 2.5V G = 10
BW = 80kHz VOUT = 2VP-P
Figure 6-38 THD + N vs Frequency
VS = 5V VCM = 2.5V G = 1
BW = 80kHz VOUT = 4VP-P
Figure 6-40 THD + N vs Frequency
VS = 5V VCM = 2.5V G = 10
BW = 80kHz VOUT = 4VP-P

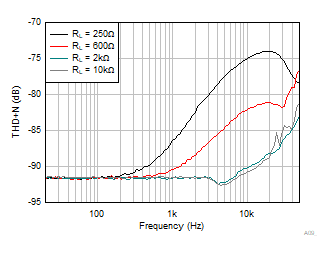

Figure 6-42 THD + N vs Frequency
VS = 5V VCM = 2.5V G = 1
BW = 80kHz VOUT = 1.4VP-P
Figure 6-44 THD + N vs Frequency
VS = 3.3V VCM = 1.65V G = 1
BW = 80kHz VOUT = 1VP-P
Figure 6-46 THD + N vs Frequency
VS = 5V VCM = 2.5V f = 1kHz
BW = 80kHz
Figure 6-48 THD + N vs Amplitude
VCM = VS/2

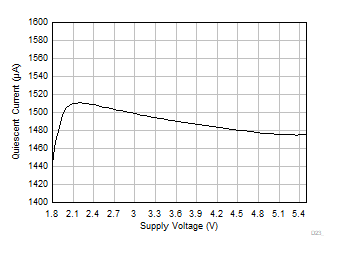

Figure 6-50 Quiescent Current vs Supply Voltage
VCM = VS/2

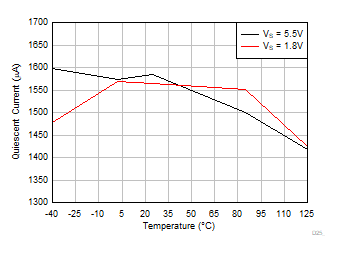

Figure 6-52 Quiescent Current vs Temperature
G = 1 VIN = 100mVpp

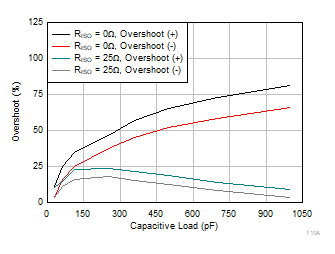

Figure 6-54 Small Signal Overshoot vs Capacitive Load
G = 1 VIN = 6VPP

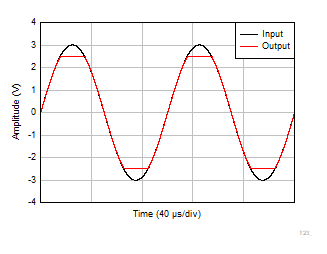

Figure 6-56 No Phase Reversal
G = –10 VIN = 600mVPP
Figure 6-58 Overload Recovery
G = 1 VIN = 100mVPP CL = 10pF

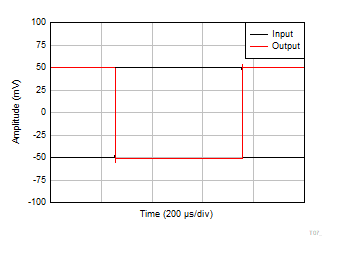

Figure 6-60 Small-Signal Step Response
G = –1 VIN = 100mVPP CL = 10pF
Figure 6-62 Small-Signal Step Response
G = 1 VIN = 2VPP CL = 10pF
RL = 2kΩ

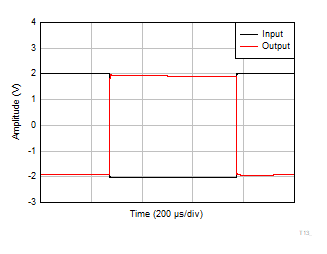

Figure 6-64 Large-Signal Step Response
G = –1 VIN = 2VPP CL = 10pF
RL = 2kΩ
Figure 6-66 Large-Signal Step Response
VS = 5.5V

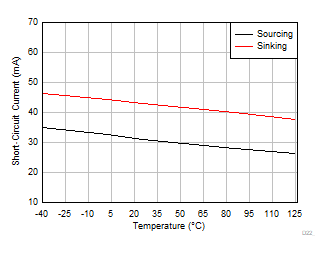

Figure 6-68 Short-Circuit Current vs Temperature
GUID-20240213-SS0I-PLHP-VB8R-0KQ1WQWK82G9-low.gifFigure 6-70 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency
