OPA317-Q1シリーズのCMOSオペアンプは、求めやすい価格でありながら高精度の性能を実現します。これらのデバイスは、ゼロドリフト・ファミリのアンプのメンバーで、専用の自動較正技術を使用して、低いオフセット電圧(最大90μV)、時間と温度に対してゼロに近いドリフト、わずか35μA (最大値)の静止電流を同時に実現しています。
OPA317-Q1ファミリは、レール・ツー・レールの入出力に加えて、フラットに近い1/fノイズが特長で、多くのアプリケーションに理想的なアンプであり、システムの設計に簡単に組み込めます。これらのデバイスは、最小1.8V (±0.9V)、最大5.5V (±2.75V)の低電圧での動作に最適化されています。
OPA317-Q1 (シングル・バージョン)はSOT23-5パッケージで利用可能です。OPA2317-Q1 (デュアル・バージョン)はVSSOP-8パッケージで利用可能です。OPA4317-Q1はTSSOP-14パッケージで利用可能です。どのバージョンも、-40℃~+125℃での動作が保証されています。
型番 | パッケージ | 本体サイズ(公称) |
---|---|---|
OPA317-Q1 | SOT-23 (5) | 1.60mm×2.90mm |
OPA2317-Q1 | VSSOP (8) | 3.00mm×3.00mm |
OPA4317-Q1 | TSSOP (14) | 4.40mm×5.00mm |
日付 | 改訂内容 | 注 |
---|---|---|
2016年7月 | * | 初版 |
PIN | I/O | DESCRIPTION | |
---|---|---|---|
NAME | NO. | ||
SOT-23 | |||
+IN | 3 | I | Noninverting input |
–IN | 4 | I | Inverting input |
OUT | 1 | O | Output |
V+ | 5 | — | Positive (highest) power supply |
V– | 2 | — | Negative (lowest) power supply |
PIN | I/O | DESCRIPTION | |
---|---|---|---|
NAME | NO. | ||
VSSOP | |||
+IN A | 3 | I | Noninverting input, channel A |
–IN A | 2 | I | Inverting input, channel A |
+IN B | 5 | I | Noninverting input, channel B |
–IN B | 6 | I | Inverting input, channel B |
OUT A | 1 | O | Output, channel A |
OUT B | 7 | O | Output, channel B |
V+ | 8 | — | Positive (highest) power supply |
V– | 4 | — | Negative (lowest) power supply |
PIN | I/O | DESCRIPTION | |
---|---|---|---|
NAME | NO. | ||
TSSOP | |||
+IN A | 3 | I | Noninverting input, channel A |
–IN A | 2 | I | Inverting input, channel A |
+IN B | 5 | I | Noninverting input, channel B |
–IN B | 6 | I | Inverting input, channel B |
+IN C | 10 | I | Noninverting input, channel C |
–IN C | 9 | I | Inverting input, channel C |
+IN D | 12 | I | Noninverting input, channel D |
–IN D | 13 | I | Inverting input, channel D |
OUT A | 1 | O | Output, channel A |
OUT B | 7 | O | Output, channel B |
OUT C | 8 | O | Output, channel C |
OUT D | 14 | O | Output, channel D |
V+ | 4 | — | Positive (highest) power supply |
V– | 11 | — | Negative (lowest) power supply |
MIN | MAX | UNIT | ||
---|---|---|---|---|
VS = (V+) – (V–) | Supply voltage | 7 | V | |
Signal input terminals (2) | (V–) – 0.3 | (V+) + 0.3 | V | |
Signal input terminals(2) | –10 | 10 | mA | |
Output short circuit(3) | Continuous | |||
TA | Operating temperature | –40 | 150 | °C |
TJ | Junction temperature | 150 | °C | |
Tstg | Storage temperature | –65 | 150 | °C |
VALUE | UNIT | ||||
---|---|---|---|---|---|
V(ESD) | Electrostatic discharge | Human-body model (HBM), per AEC Q100-002(1) | ±4000 | V | |
Charged-device model (CDM), per AEC Q100-011 | All pins | ±1000 | |||
Corner pins | ±1000 |
MIN | MAX | UNIT | ||
---|---|---|---|---|
(V+ – V–) | Supply voltage | 1.8 (±0.9) | 5.5 (±2.25) | V |
TA | Specified temperature | –40 | 125 | °C |
THERMAL METRIC(1) | OPA317-Q1 | UNIT | |
---|---|---|---|
DBV (SOT-23) | |||
5 PINS | |||
RθJA | Junction-to-ambient thermal resistance | 220.8 | °C/W |
RθJC(top) | Junction-to-case (top) thermal resistance | 97.5 | °C/W |
RθJB | Junction-to-board thermal resistance | 61.7 | °C/W |
ψJT | Junction-to-top characterization parameter | 7.6 | °C/W |
ψJB | Junction-to-board characterization parameter | 61.1 | °C/W |
THERMAL METRIC(1) | OPA2317-Q1 | UNIT | |
---|---|---|---|
DGK (VSSOP) | |||
8 PINS | |||
RθJA | Junction-to-ambient thermal resistance | 180.3 | °C/W |
RθJC(top) | Junction-to-case (top) thermal resistance | 48.1 | °C/W |
RθJB | Junction-to-board thermal resistance | 100.9 | °C/W |
ψJT | Junction-to-top characterization parameter | 2.4 | °C/W |
ψJB | Junction-to-board characterization parameter | 99.3 | °C/W |
THERMAL METRIC(1) | OPA4317-Q1 | UNIT | |
---|---|---|---|
PW (TSSOP) | |||
14 PINS | |||
RθJA | Junction-to-ambient thermal resistance | 120.8 | °C/W |
RθJC(top) | Junction-to-case (top) thermal resistance | 34.3 | °C/W |
RθJB | Junction-to-board thermal resistance | 62.8 | °C/W |
ψJT | Junction-to-top characterization parameter | 1 | °C/W |
ψJB | Junction-to-board characterization parameter | 56.5 | °C/W |
PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
---|---|---|---|---|---|---|
OFFSET VOLTAGE | ||||||

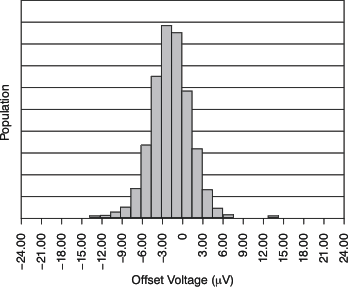

VOS | Input offset voltage | VS = 5 V | 20 | ±90 | μV | |
TA = –40°C to +125°C, VS = 5 V | ±100 | |||||
dVOS/dT | Input offset voltage vs temperature |
TA = –40°C to +125°C | 0.05 | μV/°C | ||
PSRR | Input offset voltage vs power supply |
TA = –40°C to +125°C, VS = 1.8 V to 5.5 V | 1 | 10 | μV/V | |
Long-term stability(1) | See (1) | |||||
Channel separation, DC | 5 | μV/V | ||||
INPUT BIAS CURRENT | ||||||
IB | Input bias current | ±275 | pA | |||
OPA4317-Q1 | ±155 | |||||
TA = –40°C to +125°C | ±300 | |||||
IOS | Input offset current | ±400 | pA | |||
OPA4317-Q1 | ±140 | |||||
NOISE | ||||||
en | Input voltage noise density | f = 1 kHz | 55 | nV/√Hz | ||
Input voltage noise | f = 0.01 Hz to 1 Hz | 0.3 | μVPP | |||
f = 0.1 Hz to 10 Hz | 1.1 | |||||
in | Input current noise | f = 10 Hz | 100 | fA/√Hz | ||
INPUT VOLTAGE RANGE | ||||||
VCM | Common-mode voltage | (V–) – 0.1 | (V+) + 0.1 | V | ||
CMRR | Common-mode rejection ratio | TA = –40°C to +125°C (V–) – 0.1 V < VCM < (V+) + 0.1 V |
95 | 108 | dB | |
OPA4317 TA = –40°C to +125°C (V–) – 0.1 V < VCM < (V+) + 0.1 V, VS = 5.5 V |
95 | 108 | ||||
INPUT CAPACITANCE | ||||||
Differential | 2 | pF | ||||
Common-mode | 4 | pF | ||||
OPEN-LOOP GAIN | ||||||
AOL | Open-loop voltage gain | TA = –40°C to +125°C, RL = 10 kΩ (V–) + 100 mV < VO < (V+) – 100 mV |
100 | 110 | dB | |
FREQUENCY RESPONSE | ||||||
GBW | Gain-bandwidth product | CL = 100 pF | 300 | kHz | ||
SR | Slew rate | G = 1 | 0.15 | V/μs | ||
OUTPUT | ||||||
Voltage output swing from rail | TA = –40°C to +125°C | 30 | 100 | mV | ||
ISC | Short-circuit current | ±5 | mA | |||
CL | Capacitive load drive | See the Typical Characteristics section | ||||
Open-loop output impedance | f = 350 kHz, IO = 0 | 2 | kΩ | |||
POWER SUPPLY | ||||||
VS | Specified voltage | 1.8 | 5.5 | V | ||
IQ | Quiescent current per amplifier | TA = –40°C to +125°C, IO = 0 | 21 | 35 | μA | |
Turnon time | VS = 5 V | 100 | µs |
G = 1 | RL = 10 kΩ |
4-V Step |
See the Input Differential Voltage section |
G = 1 | RL = 10 kΩ |
