DATA SHEET

RF430CL331H NFC Type 4B Dynamic Dual Interface Transponder

1 Device Overview

1.1 Features

  • Pass-Through Operation Sends Data Updates and Requests to Host Controller
  • I2C Interface Allows Writing and Reading of Internal SRAM
  • Prefetching, Caching, and Auto ACK Features Increase Data Throughput
  • Enables Data Streaming
  • All RF Communication up to Layer 4 Handled Automatically
  • Supports up to Maximum NDEF Message Size
  • Compliant With ISO/IEC 14443B
  • Supports up to 848 kbps

1.2 Applications

  • Wireless Firmware Updates
  • Wi-Fi® and Bluetooth® Pairing
  • Service Interface
  • Wireless Sensor Interfaces

1.3 Description

The TI Dynamic NFC/RFID Interface Transponder RF430CL331H is an NFC Tag Type 4 device that combines a contactless NFC/RFID interface and a wired I2C interface to connect the device to a host. The NDEF message can be written and read from the integrated I2C serial communication interface and can also be accessed and updated over a contactless interface using the integrated ISO/IEC 14443 Type B compliant RF interface that supports up to 848 kbps.

The device requests responses to NFC Type 4 commands on demand from the host controller and stores only a portion of the NDEF message in its buffer at any one time. This allows NDEF message size to be limited only by the memory capacity of the host controller and specification limitations.

Support of read caching, prefetching, and write automatic acknowledgment features allows for greater data throughput.

This device enables NFC connection handover for an alternative carrier like Bluetooth®, Bluetooth® low energy (BLE), or Wi-Fi as an easy and intuitive pairing process or authentication process with only a tap.

As a general NFC interface, the RF430CL331H enables end equipment to communicate with the fast-growing infrastructure of NFC-enabled smart phones, tablets, and notebooks.

Device Information (1)

PART NUMBER PACKAGE BODY SIZE (2)
RF430CL331HIPW TSSOP (14) 5 mm × 4.4 mm
RF430CL331HRGT VQFN (16) 3 mm × 3 mm
(1) For the most current part, package, and ordering information for all available devices, see the Package Option Addendum in Section 8, or see the TI website at www.ti.com.
(2) The sizes shown here are approximations. For the package dimensions with tolerances, see the Mechanical Data in Section 8.

1.4 Typical Application

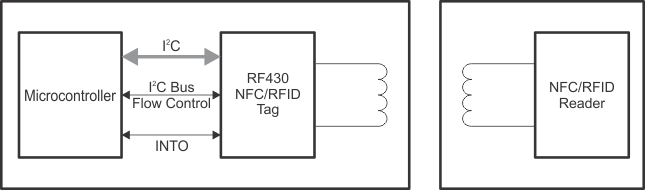

Figure 1-1 shows a typical application.

RF430CL331H typical_app_slase18.gif Figure 1-1 Typical Application

2 Revision History

Changes from September 29, 2015 to November 30, 2015

  • Deleted "Suggested to be set to 0x3B" from Step 7(a)Go
  • Deleted "The recommended setting is maximum possible value, which is 0x3B" in the paragraph that starts "When the internal state machine determines..."Go

3 Terminal Configuration and Functions

3.1 Pin Diagrams

Figure 3-1 shows the pinout for the 14-pin PW package.

RF430CL331H pinout_pw14_331A_slase18.gif Figure 3-1 14-Pin PW Package (Top View)

Figure 3-2 shows the pinout for the 16-pin RGT package.

RF430CL331H pinout_rgt16_slase18.gif Figure 3-2 16-Pin RGT Package (Top View)

3.2 Pin Attributes

Table 3-1 Pin Attributes

PIN NUMBER SIGNAL NAME SIGNAL TYPE (1) BUFFER TYPE (2) POWER SOURCE RESET STATE (3)
PW RGT
1 15 VCC PWR Power VCC N/A
2 1 ANT1 RF Analog – N/A
3 2 ANT2 RF Analog – N/A
4 3 RST I LVCMOS VCC PU
5 4 E0 I LVCMOS VCC OFF
6 5 E1 I LVCMOS VCC OFF
7 6 E2 I LVCMOS VCC OFF
8 7 INTO O LVCMOS VCC OFF
9 8 I2C_READY O LVCMOS VCC DRIVE1
10 9 I2C_SIGNAL O LVCMOS VCC DRIVE1
11 10 SCL I/O LVCMOS VCC OFF
12 11 SDA I/O LVCMOS VCC OFF
13 12 VCORE PWR Power VCC N/A
14 13 VSS PWR Power VCC N/A
– 14 NC – – – –
– 16 NC – – – –
(1) Signal Types: I = Input, O = Output, I/O = Input or Output, PWR = Power, RF = Radio frequency
(2) Buffer Types: See Table 3-3 for details.
(3) Reset States:
OFF = High-impedance input with pullup or pulldown disabled (if available)
PD = High-impedance input with pulldown enabled
PU = High-impedance input with pullup enabled
DRIVE0 = Drive output low
DRIVE1 = Drive output high
N/A = Not applicable

3.3 Signal Descriptions

Table 3-2 describes the signals.

Table 3-2 Signal Descriptions

FUNCTION SIGNAL NAME PIN NUMBER I/O (1) DESCRIPTION
PW RGT
Power VCC 1 15 PWR 3.3-V power supply
VCORE 13 12 PWR Regulated core supply voltage
VSS 14 13 PWR Ground supply
RF ANT1 2 1 RF Antenna input 1
ANT2 3 2 RF Antenna input 2
Serial communication E0 5 4 I I2C address select 0
E1 6 5 I I2C address select 1
E2 7 6 I I2C address select 2
I2C_READY 9 8 O High indicates that I2C communication can be started. Low indicates that I2C communication must not be started.
I2C_SIGNAL 10 9 O Low indicates that a wait time extension command is automatically being sent. I2C communication does not have to be stopped.
SCL 11 10 I/O I2C clock
SDA 12 11 I/O I2C data
System INTO 8 7 O Interrupt output
RST 4 3 I Reset input (active low) (2)
No connect NC – 14
16		 – Leave open, no connection
(1) I = Input, O = Output, PWR = Power, RF = RF antenna
(2) With integrated pullup

3.4 Pin Multiplexing

None of the pins on this device are multiplexed.

Table 3-3 Buffer Type

BUFFER TYPE (STANDARD) NOMINAL VOLTAGE HYSTERESIS PU OR PD NOMINAL PU OR PD STRENGTH (µA) OUTPUT DRIVE STRENGTH (mA) OTHER CHARACTERISTICS
LVCMOS 3.3 V Y N/A See Section 4.6, Electrical Characteristics, Digital Inputs See Section 4.7, Electrical Characteristics, Digital Outputs
Analog, RF 3.3 V N N/A N/A N/A See analog modules in Section 4, Specifications, for details
Power 3.3 V Y with SVS on N/A N/A N/A

3.5 Connections for Unused Pins

Leave no connect (NC) pins unconnected.

Leave unused outputs unconnected.

Drive or pull unused inputs high or low.

4 Specifications

4.1 Absolute Maximum Ratings (1) (2)

MIN MAX UNIT
Voltage applied at VCC referenced to VSS (VAMR) –0.3 4.1 V
Voltage applied at VANT referenced to VSS (VAMR) –0.3 4.1 V
Voltage applied to any pin (references to VSS) –0.3 VCC + 0.3 V
Diode current at any device pin ±2 mA
Storage temperature, Tstg (3) –40 125 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltages are referenced to VSS.
(3) For soldering during board manufacturing, it is required to follow the current JEDEC J-STD-020 specification with peak reflow temperatures not higher than classified on the device label on the shipping boxes or reels.

4.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2) ±500
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

4.3 Recommended Operating Conditions

Typical values are specified at VCC = 3.3 V and TA = 25°C (unless otherwise noted)
MIN NOM MAX UNIT
VCC Supply voltage During program execution no RF field present 3.0 3.3 3.6 V
During program execution with RF field present 2.0 3.3 3.6
VSS Supply voltage (GND reference) 0 V
TA Operating free-air temperature –40 85 °C
C1 Decoupling capacitor on VCC (1) 0.1 µF
C2 Decoupling capacitor on VCC (1) 1 µF
CVCORE Capacitor on VCORE (1) 0.1 0.47 1 µF
(1) Low ESR (equivalent series resistance) capacitor

4.4 Recommended Operating Conditions, Resonant Circuit

MIN NOM MAX UNIT
fc Carrier frequency 13.56 MHz
VANT_peak Antenna input voltage 3.6 V
Z Impedance of LC circuit 6.5 15.5 kΩ
LRES Coil inductance(2) 2.66 µH
CRES Total resonance capacitance(2), CRES = CIN + CTune 51.8 pF
CTune External resonance capacitance CRES – CIN (1) pF
QT Tank quality factor 30
(1) For CIN refer to Section 4.9.3.
(2) The coil inductance of the antenna LRES with the external capacitance CTune plus the device internal capacitance CIN is a resonant circuit. The resonant frequency of this LC circuit must be close to the carrier frequency fc:
fRES = 1 / [2π(LRESCRES)1/2] = 1 / [2π(LRES(CIN+CTune))1/2] ≈ fc

4.5 Supply Currents

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
ICC(I2C) I2C, 400 kHz, Writing into NDEF memory 3.3 V 250 µA
ICC(RF enabled) RF enabled, no RF field present 3.3 V 40 µA
ICC(Inactive) Standby enable = 0, RF disabled, no serial communication 3.3 V 15 µA
ICC(Standby) Standby enable = 1, RF disabled, no serial communication 3.3 V 10 45 µA
ΔICC(StrongRF) Additional current consumption with strong RF field present 3.0 V to 3.6 V 160 µA
ICC(RF,lowVCC) Current drawn from VCC < 3.0 V with RF field present (passive operation) 2.0 V to 3.0 V 0 µA

4.6 Electrical Characteristics, Digital Inputs

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS VCC MIN TYP MAX UNIT
VIL Low-level input voltage 0.3 × VCC V
VIH High-level input voltage 0.7 × VCC V
VHYS Input hysteresis 0.1 × VCC V
IL High-impedance leakage current 3.3 V –50 50 nA
RPU(RST) Integrated RST pullup resistor 20 35 50 kΩ

4.7 Electrical Characteristics, Digital Outputs

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS VCC MIN MAX UNIT
VOL Output low voltage IOL = 3 mA 3 V 0.4 V
3.3 V 0.4
3.6 V 0.4
VOH Output high voltage IOH = –3 mA 3 V 2.6 V
3.3 V 2.9
3.6 V 3.2

4.8 Thermal Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER VALUE UNIT
RθJA Junction-to-ambient thermal resistance, still air(1) TSSOP-14 (PW) 116.0 °C/W
RθJC(TOP) Junction-to-case (top) thermal resistance(2) 45.1 °C/W
RθJB Junction-to-board thermal resistance(3) 57.6 °C/W
ΨJB Junction-to-board thermal characterization parameter 57.0 °C/W
ΨJT Junction-to-top thermal characterization parameter 4.6 °C/W
RθJA Junction-to-ambient thermal resistance, still air(1) VQFN-16 (RGT) 48.8 °C/W
RθJC(TOP) Junction-to-case (top) thermal resistance(2) 60.8 °C/W
RθJC(BOT) Junction-to-case (bottom) thermal resistance(4) 7.1 °C/W
RθJB Junction-to-board thermal resistance(3) 21.9 °C/W
ΨJB Junction-to-board thermal characterization parameter 21.9 °C/W
ΨJT Junction-to-top thermal characterization parameter 1.5 °C/W
(1) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, High-K board, as specified in JESD51-7, in an environment described in JESD51-2a.
(2) The junction-to-case (top) thermal resistance is obtained by simulating a cold plate test on the package top. No specific JEDEC standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.
(3) The junction-to-board thermal resistance is obtained by simulating in an environment with a ring cold plate fixture to control the PCB temperature, as described in JESD51-8.
(4) The junction-to-case (bottom) thermal resistance is obtained by simulating a cold plate test on the exposed (power) pad. No specific JEDEC standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.

4.9 Timing and Switching Characteristics

4.9.1 Reset Timing

Table 4-1 I2C Power-up Timing

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER MIN MAX UNIT
tReady Time after power up or reset until device is ready to communicate using I2C(1) 20 ms
(1) The device is ready to communicate after tReady(MAX) at the latest.

4.9.2 Serial Communication Protocol Timing

Table 4-2 I2C Interface

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 4-1)
PARAMETER TEST CONDITIONS VCC MIN MAX UNIT
fSCL SCL clock frequency (with Master supporting clock stretching according to I2C standard, or when the device is not being addressed) 3.3 V 0 400 kHz
SCL clock frequency (device being addressed by Master not supporting clock stretching) Write 3.3 V 0 120
Read 3.3 V 0 100
tHD,STA Hold time (repeated) START fSCL ≤ 100 kHz 3.3 V 4 µs
fSCL > 100 kHz 0.6
tSU,STA Setup time for a repeated START fSCL ≤ 100 kHz 3.3 V 4.7 µs
fSCL > 100 kHz 0.6
tHD,DAT Data hold time 3.3 V 0 ns
tSU,DAT Data setup time 3.3 V 250 ns
tSU,STO Setup time for STOP 3.3 V 4 µs
tSP Pulse duration of spikes suppressed by input filter 3.3 V 6.25 75 ns
RF430CL331H i2c_timing_slas850.gif Figure 4-1 I2C Mode Timing

4.9.3 RF143B NFC/RFID Analog Front End

Table 4-3 Recommended Operating Conditions

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VDDH Antenna rectified voltage Peak voltage limited by antenna limiter 3.0 3.3 3.6 V
IDDH Antenna load current RMS, without limiter current 100 µA
CIN Input capacitance ANT1 to ANT2, 2 V RMS 31.5 35 38.5 pF

Table 4-4 ISO/IEC 14443B ASK Demodulator

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER MIN TYP MAX UNIT
DR10 Input signal data rate 10% downlink modulation, 7% to 30% ASK, ISO1443B 106 848 kbps
m10 Modulation depth 10%, tested as defined in ISO/IEC 10373-6 7% 30%

Table 4-5 ISO/IEC 14443B-Compliant Load Modulator

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER MIN TYP MAX UNIT
fPICC Uplink subcarrier modulation frequency 0.2 1 MHz
VA_MOD Modulated antenna voltage, VA_unmod = 2.3 V 0.5 V
VSUB14 Uplink modulation subcarrier level, ISO/IEC 14443B: H = 1.5 to 7.5 A/m 22/H0.5 mV

Table 4-6 Power Supply

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VLIM Limiter clamping voltage ILIM ≤ 70 mA RMS, f = 13.56 MHz 3.0 3.6 Vpk
ILIM,MAX Maximum limiter current 70 mA


Texas Instruments

© Copyright 1995-2025 Texas Instruments Incorporated. All rights reserved.
Submit documentation feedback | IMPORTANT NOTICE | Trademarks | Privacy policy | Cookie policy | Terms of use | Terms of sale
