Parameter Measurement Information

SN65LVDS93A-Q1 set_hold_lls846.gif
All input timing is defined at IOVDD / 2 on an input signal with a 10% to 90% rise or fall time of less than 3 ns. CLKSEL = 0 V.
Figure 6. Set Up and Hold Time Definition

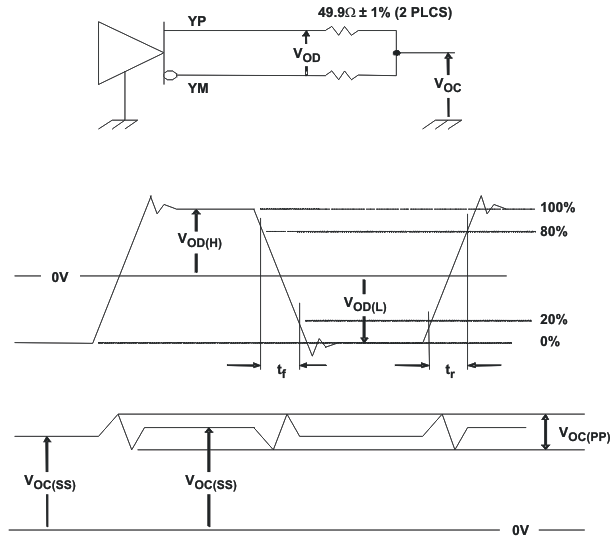

SN65LVDS93A-Q1 test_load_lls846.gifFigure 7. Test Load and Voltage Definitions for LVDS Outputs

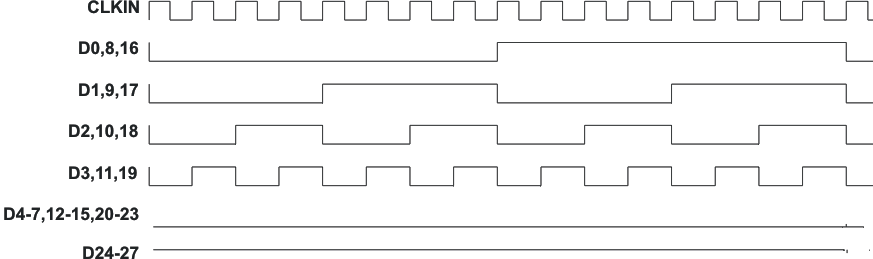

SN65LVDS93A-Q1 gray_scale_lls846.gif
The 16 grayscale test pattern test device power consumption for a typical display pattern.
Figure 8. 16 Grayscale Test Pattern

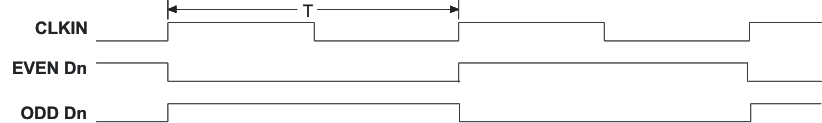

SN65LVDS93A-Q1 worst_case_lls846.gif
The worst-case test pattern produces nearly the maximum switching frequency for all of the LVDS outputs.
Figure 9. Worst-Case Power Test Pattern

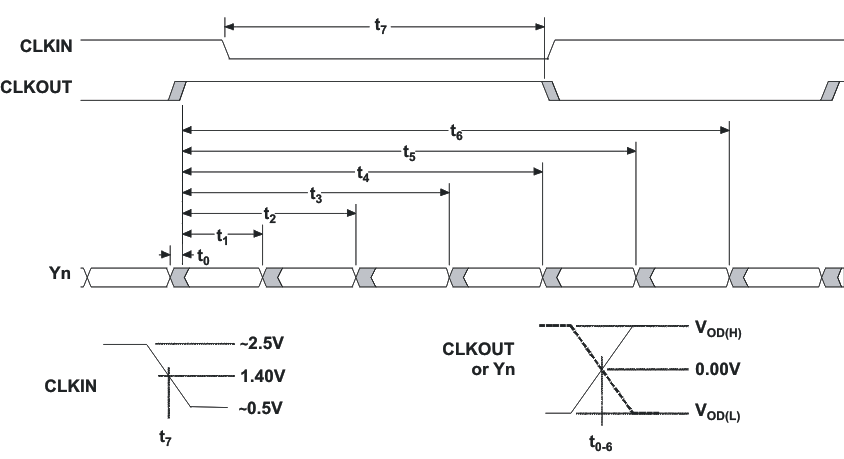

SN65LVDS93A-Q1 timing_lls846.gif
CLKOUT is shown with CLKSEL at high-level.
CLKIN polarity depends on CLKSEL input level.
Figure 10. SN65LVDS93A-Q1 Timing Definitions

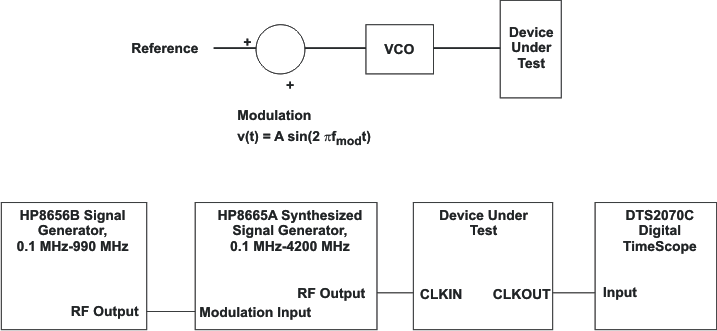

SN65LVDS93A-Q1 out_clock_lls846.gifFigure 11. Output Clock Jitter Test Set Up
SN65LVDS93A-Q1 enable_time_lls846.gifFigure 12. Enable Time Waveforms

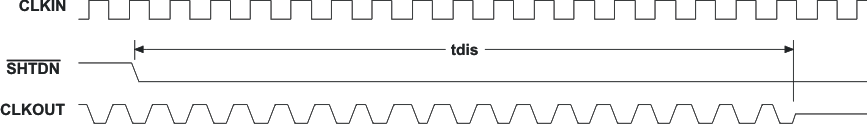

SN65LVDS93A-Q1 disable_time_lls846.gifFigure 13. Disable Time Waveforms
