10.3.6 Serial Audio Port - Data Formats and Bit Depths

The device supports industry-standard audio data formats, including standard I2S, left-justified, right-justified and TDM/DSP data. Data formats are selected via Register (P0-R51-D[5:4]). If the high width of LRCK/FS in TDM/DSP mode is less than 8 cycles of SCK, the register (P0-R51-D[3:2]) should set to 01. All formats require binary two's complement, MSB-first audio data; up to 32-bit audio data is accepted. All the data formats, word length and clock rate supported by this device are shown in Table 1. The data formats are detailed in Figure 56 through Figure 60. The word length are selected via Register (P0-R51-D[1:0]). The offsets of data are selected via Register (P0-R51-D[7]) and Register (P0-R52-D[7:0]). Default setting is I2S and 24 bit word length.

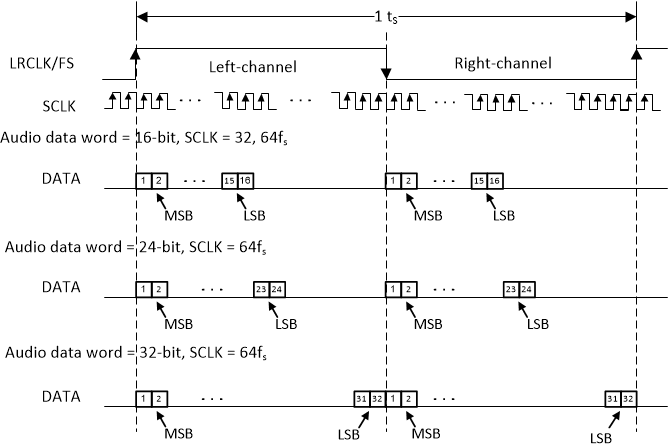

TAS5806M Left-Justfied-Audio-Data-Format.gifFigure 56. Left Justified Audio Data Format

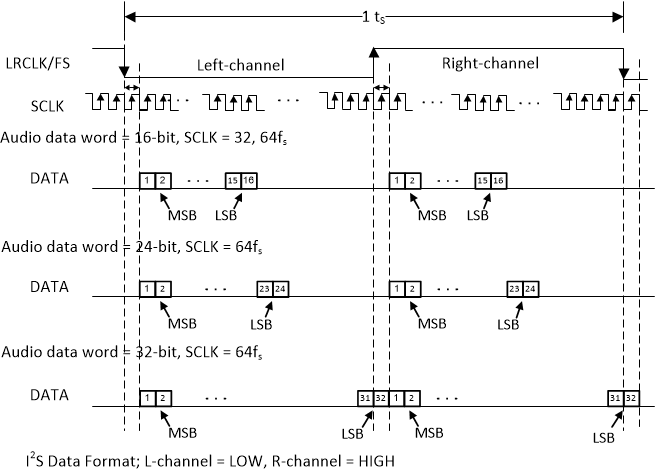

TAS5806M I2S-Audio-Data-Format.gif
I2S Data Format; L-channel = LOW, R-channel = HIGH
Figure 57. I2S Audio Data Format
TAS5806M Right-Justfied-Audio-Data-Format.gif
Right Justified Data Format; L-channel = HIGH, R-channel = LOW
Figure 58. Right Justified Audio Data Format
TAS5806M aud_data_format_tdm1_slaseg8.gif
TDM Data Format with OFFSET = 0
In TDM Modes, Duty Cycle of LRCK/FS should be 1x SCLK at minimum. Rising edge is considered frame start.
Figure 59. TDM 1 Audio Data Format
TAS5806M aud_data_format_tdm2_slaseg8.gif
TDM Data Format with OFFSET = 1
In TDM Modes, Duty Cycle of LRCK/FS should be 1x SCLK at minimum. Rising edge is considered frame start.
Figure 60. TDM 2 Audio Data Format
