10.5.3.2 Shutdown Procedures

  1. The device is in normal operation.
  2. Configure the Register 0x03h -D[1:0]=10 (HiZ) via the I2C control port or Pull PDN low.
  3. Wait at least 6ms (this time depends on the LRCLK rate, digital volume and digital volume ramp down rate).
  4. Bring down power supplies.
  5. The device is now fully shutdown and powered off.

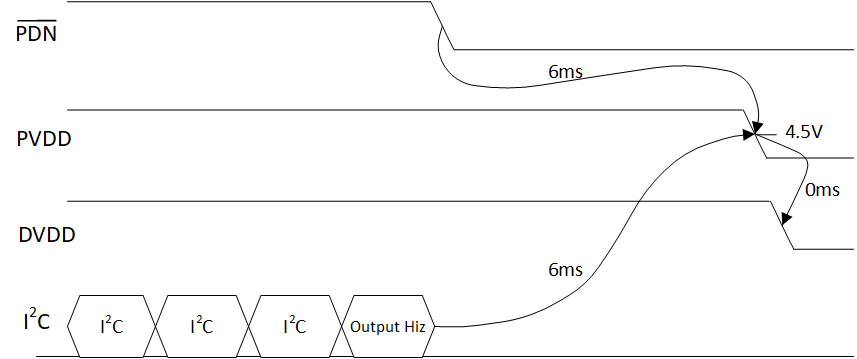

TAS5806M TAS580x-Powerdown-sequence.gif
1. Before PVDD/DVDD power down, Class D Output driver needs to be disabled by PDN or by I2C.
2. At least 6 ms delay needed based on LRCLK (Fs) = 48 kHz. Digital volume ramp down update every sample period, decreased by 0.5 dB for each update, digital volume = 24 dB. Change the value of register 0x4C and 0x4E or change the LRCLK rate, the delay changes.
Figure 69. Power-down Sequence
